Westerschelde 05 August 2016 |
|
Name |

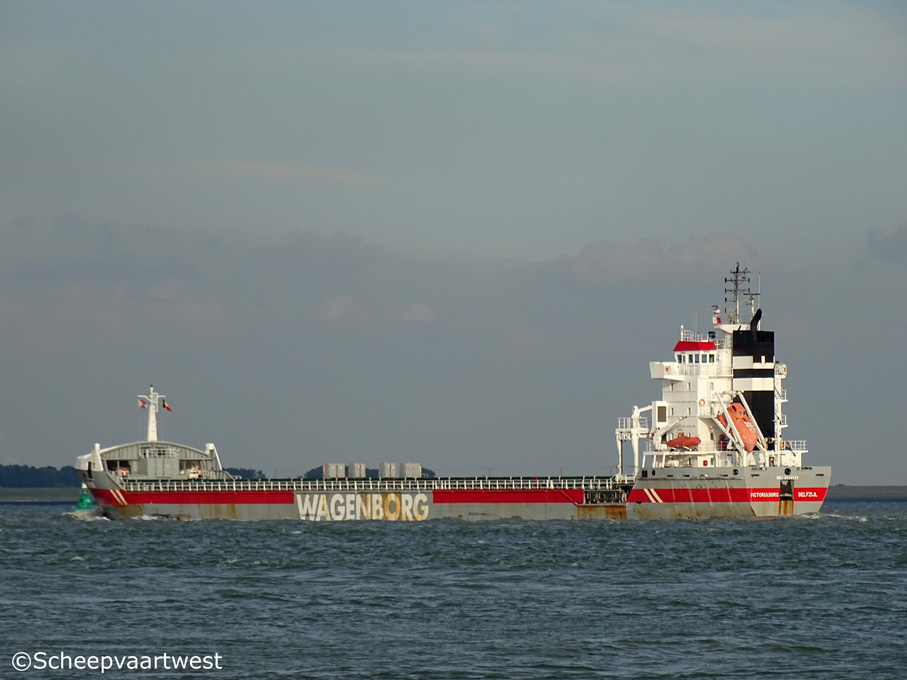

VICTORIABORG |
|
Type |
General cargo ship, container ship, Heavy cargo Singledecker - Open hatch, fully box / double skinned |
|
IMO-number |
9234276 |
|
Call sign |
PBDS |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.361 t |
|
DWT |
Summer: 9.850 t |
|
DWCC |
Summer: 9.300 t |
|
NT |
3.099 t |
|
Number of 20ft containers |
552 |
|
Length |
132,23 m overall 124,59 m between perpendiculars |
|
Breadth |
15,87 m |
|
Draught |
Summer: 7,76 m Winter: 7,60 m |
|
Air draft |
33,00 m in ballast |
|
Freeboard |
1.908 mm |
|
Depth |
11,15 m moulded |
|
Speed |
Service: 13,5 knots Max.: 15,0 knots |
|
Built |
2001 |
|
Keel laid |
30.06.2000 |
|
Launch date |
2001 |
|
Date of completion |
06.12.2001 |
|
Builder casco |
Deawoo-Mangalia Heavy Industries S.A., Yard number: 502 |
|
Builder completion |
Bodewes Scheepswerf Volharding Foxhol B.V. Yard number: 1030 |
|
Yard number |
502 |
|
Hull material |
Special steel |
|
Watertight compartments |
6 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L38B - 4 stroke single acting 6 cylinder 380 x 475 mm diesel engine 4.200 kW / 5.707 bhp at 600 rpm Built: 2001 Builder: Wärtsilä NSD Nederland, Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148 rpm |
|
Boilers |
1x CHR Aalborg 53,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency:60 Hz |
|
Shaft generator |
1x 813 kVA - 650 kW |
|
Generators |
2x Main diesel generatorsets each 305 kVA - 244 kW - 387 hp |
|
Emergency generator |
1x Diesel generatorset 87 kVA - 70 kW - 109 hp |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 Hold 1: 39,95 x 13,20 x 10,84 m Hold 2: 52,54 x 13,20 x 10,84 m |
|
Cargo hold capacity |
Bale / Grain: 12.814 m³ |
|
Number of hatches |
2 Hatch 1: 39,95 x 13,20 m hatch 2: 52,54 x 13,20 m |
|
Hatch type |
Coops & Nieborg pontoon hatches |
|
Ventilation |
12x Air changes per hour. Both holds fitted with dehumidifier system |
|
Tank capacities |
HFO: 466 m³ MGO: 47 m³ Water ballast: 3.725 m³ Fresh water: 71 m³ |
|
Manager |
Wagenborg Shipping B.V. |
|
Owner |
Wagenborg Rederij B.V. The Netherlands |
|
Previous owners |
10.12.2001 - 01.07.2005 Victoriaborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
08 September 2016 |
