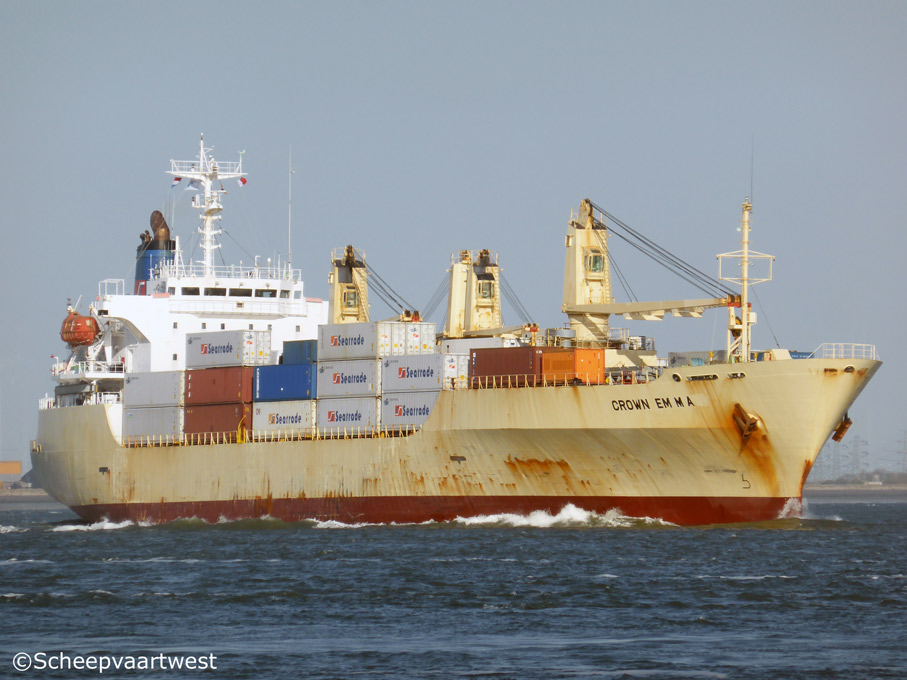

Crown Emma 01

Westerschelde 01 may 2015



Name

CROWN EMMA

Previous names

1996 - 09.2004 Crown Emerald

Type

Refrigerated cargo carrier - Designed for carriage of refrigerated cargoes of minimum temperature: -30 degree C

IMO-number

9128037

Call sign

8PLI

Flag

Barbados

Port of registry

Bridgetown

Previous flags

Republic of Singapore, Singapore - Call sing: 9V7867

GT

10.519 t registered

DWT

Summer: 10.351 t

NT

5.406 t registered

Panama: 8.863 t

Suez: 9.357 t

Number of 20ft containers

176

Number of 40ft containers

91 + 2 TEU

Reefer plugs

69

Length

151,99 m overall

Breadth

23,00 m moulded

Draught

Summer: 8,69 m

Winter: 8,49 m

Moulded L x B x D

139,40 x 23,00 x 13,00 m

Registered L x B x D

141,15 x 23,00 x 13,00 m

Freeboard

Summer: 4.363 mm

Depth

13,00 m moulded

Speed

Max.: 22,5 knots

Built

1996

Keel laid

04.09.1995

Launch date

22.11.1995

Date of completion

27.03.1996

Builder

Iwagi Zosen Co., Ltd.
Kamijima
Japan

Yard number

SZ-164

Hull material

Steel

Main engine

1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.300 mm diesel engine 11.915 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 550 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,9 bar
Evaporation: 3,10 t/h

Manufacturer: Aalborg Industries Ltd. (Kajiwara Iron Works Co., Ltd.)

Generators

4x Main diesel generatorsets 3.750 kVA

Holds / Hatches / Compartments

4 / 4 / 16

Hold capacity

Hold 1: 99.891 ft³

Hold 2: 137.870 ft³

Hold 3: 160.834 ft³

Hold 4: 149.085 ft³

Total: 547.680 ft³ / 15.508 m³

Floorspace

Hold 1: 1.118,57 m²

Hold 2: 1.555,59 m²

Hold 3: 1.865,45 m²

Hold 4: 1.688,12 m²

Total: 6.227,73 m²

Pallets

8.185

Cooling Sections

8

Air circulations

90 per hour

Air renewals

4 per hour

Minimum temp

-30°C

Tank capacities

Fuel oil: 1.806 m³

Fresh water: 381 m²

Water ballast: 923 m³

Cargo gear

2x Cranes - SWL 8,0 t

2x Cranes - SWL 35,0 t

Manager

Holy House Shipping
Kungsgatan 53
111 22 Stockholm
Sweden

Operator

Seatrade B.V.
Groningen
The Netherlands

Registered owner

Amalia Shipping Ltd.
Bridgetown (Holy House Shipping AB)
Barbados

Latest data adjustment

05 October 2016
