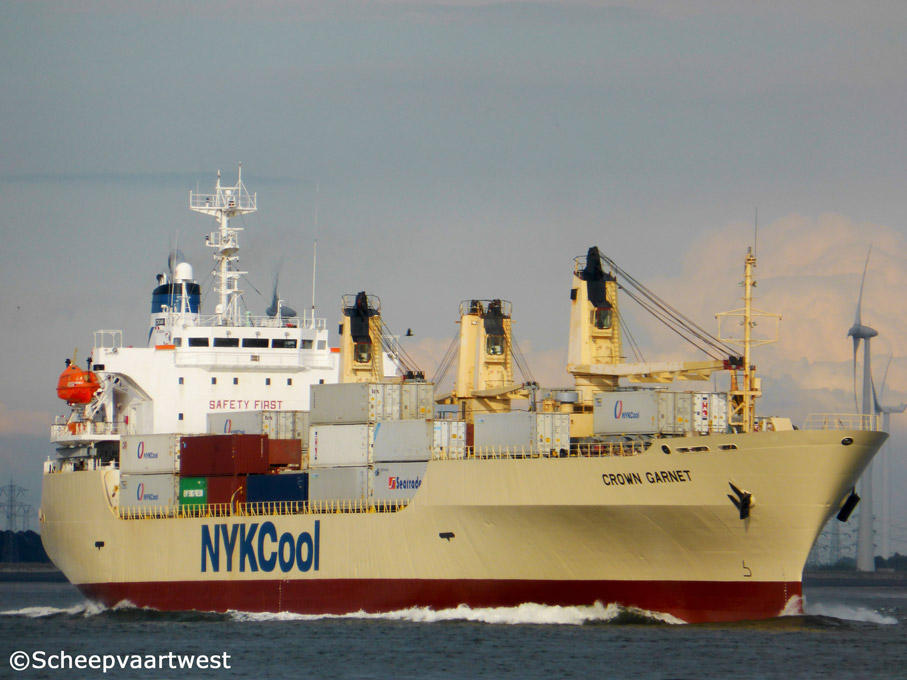

Crown Garnet 02
Westerschelde 24 June 2014

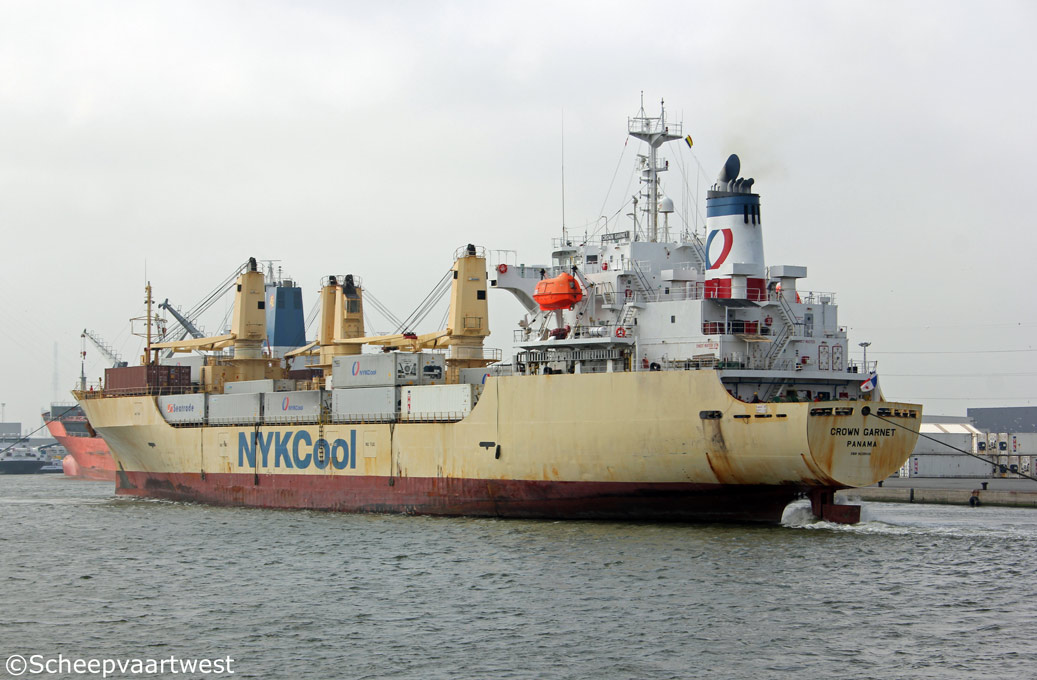

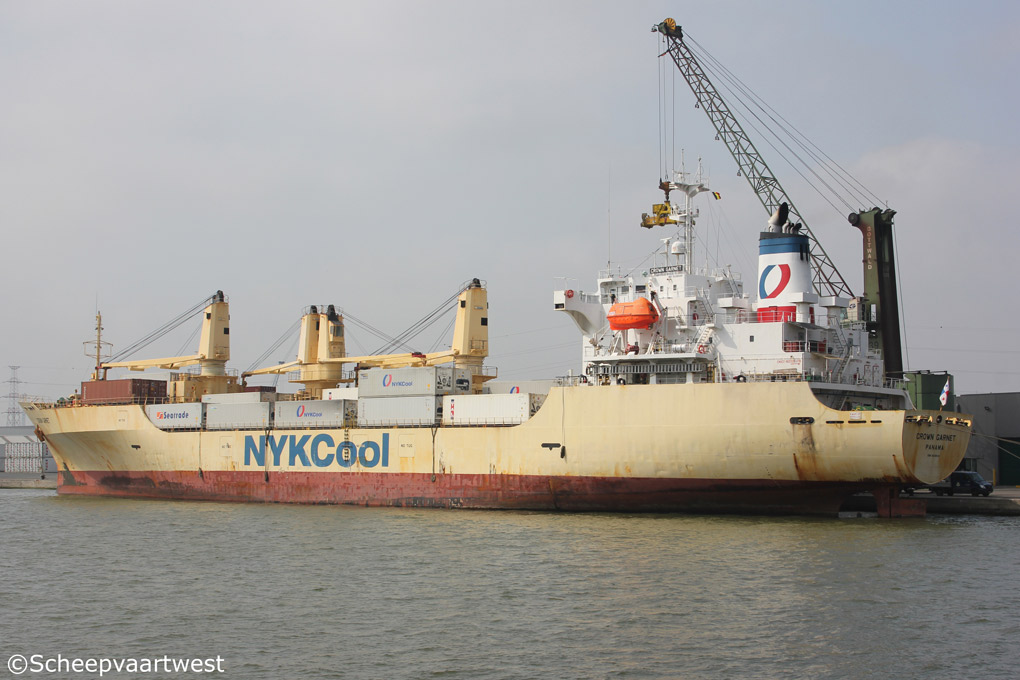

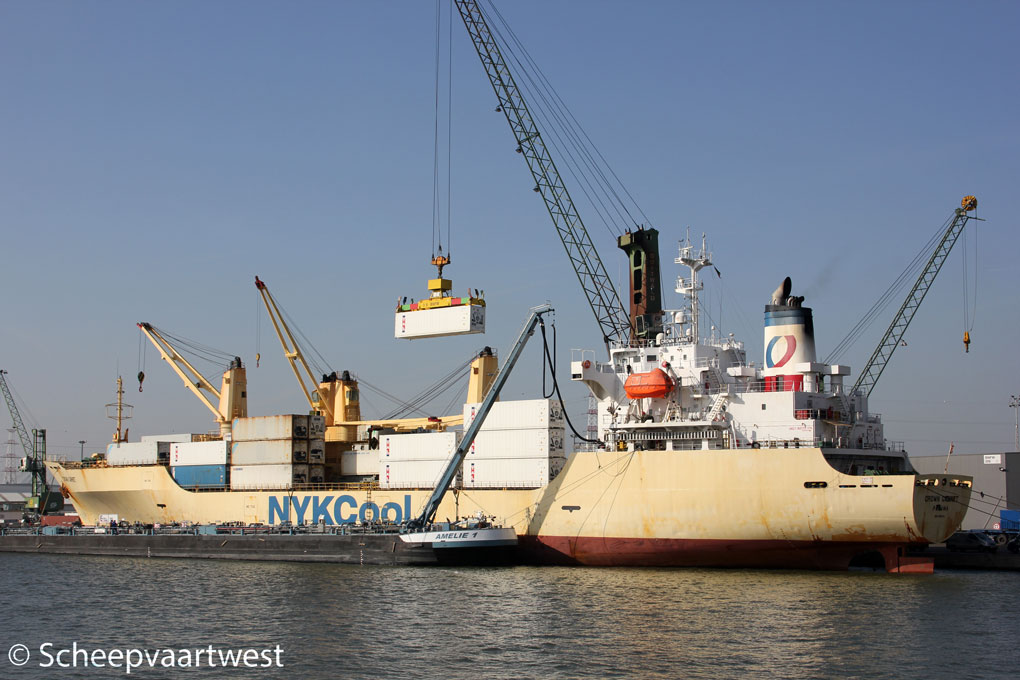

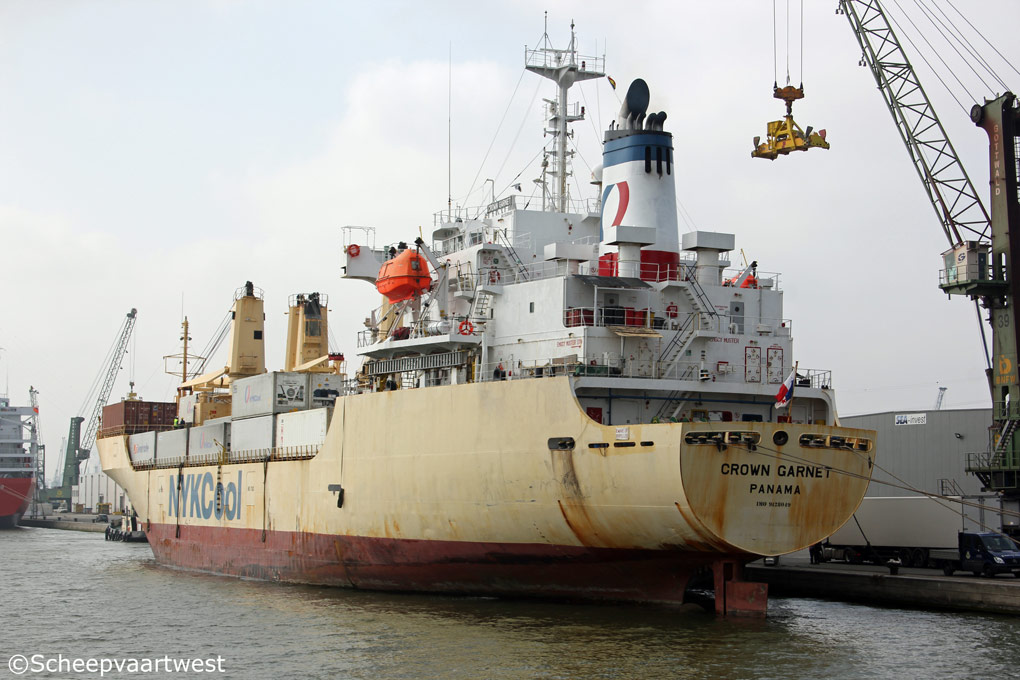

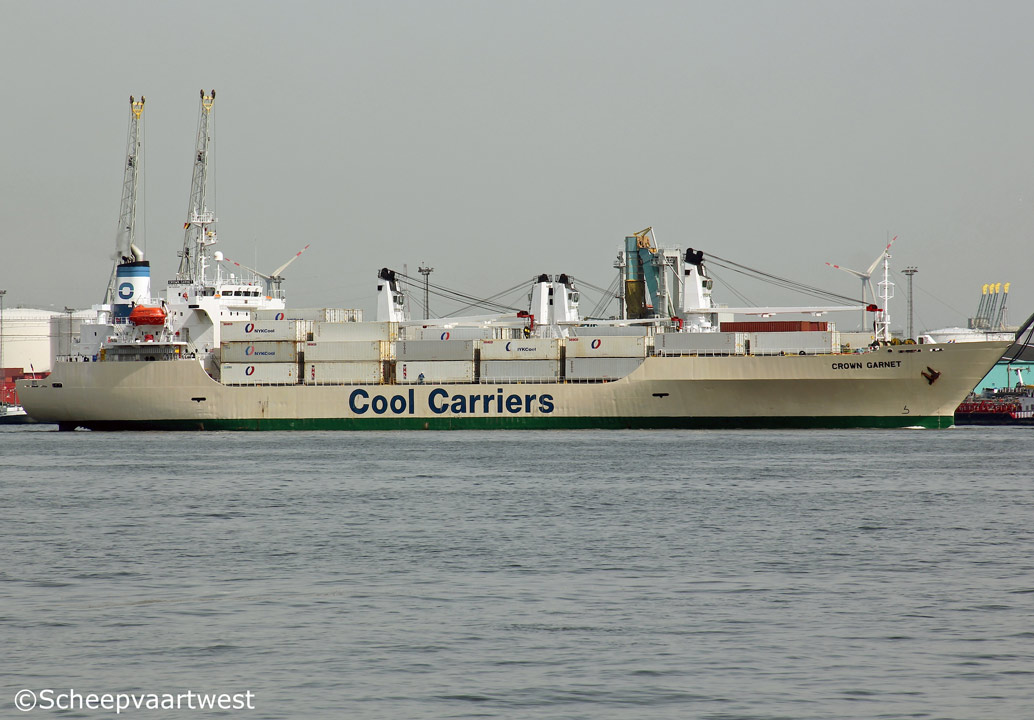

Crown Garnet 01   Crown Garnet 03   Crown Garnet 04   Crown Garnet 05   Crown Garnet 06
Antwerpen 05/03/13 Antwerpen 30/04/14 Antwerpen 30/04/14 Antwerpen 30/04/14   Antwerpen 22/05/17



Name

CROWN GARNET

Type

Refrigerated cargo ship

IMO-number

9128049

Call sign

3FSY6

Flag

Republic of Panama

Port of registry

Panama City

GT

10.519 t

DWT

10.332 t

NT

5.406 t

Number of 20ft containers

51

Reefer plugs

69

Length

151,99 m overall

Breadth

23,00 m

Draught

8,66 m

Moulded L x B x D

139,40 x 23,00 x 13,00 m

Registered L x B x D

141,15 x 23,00 x 13,00 m

Freeboard

Summer: 4.363 mm

Depth

13,00 m moulded

Speed

Trial: 22,6 knots

Built

1996

Keel laid

10.05.1996

Launch date

27.08.1996

Date of completion

01.12.1996

Builder

Iwagi Zosen Co., Ltd.
Kamijima
Japan

Yard number

SZ-165

Hull material

Steel

Main engine

1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.200 mm diesel engine - 11.915 kW / 16.200 hp at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 3,49 t/h

Manufacturer: Mitsubishi Heavy Ind., Ltd. (Marukin Sato Shipbuilding & Iron Products Co., Ltd.)

Generators

4x Diesel generatorsets 3.750 kVA

Reefer capacity

15.505 m³

Tank capacities

Fuel oil: 1.806 m³

Fresh water: 381 m³

Water ballast: 923 m³

Cargo gear

2x Cranes - SWL 35,0 t each

2x Cranes- SWL 8,0 t each

Manager

Norbulk Shipping U.K. Ltd.

Previous manager

Wallem Shipmanagement
Hong Kong
China

Operator

NykCool

Owner

Nyk Reefers
London
United Kingdom

Registered owner

Gamas Shipholding S.A.

Latest data adjustment

16 January 2016
