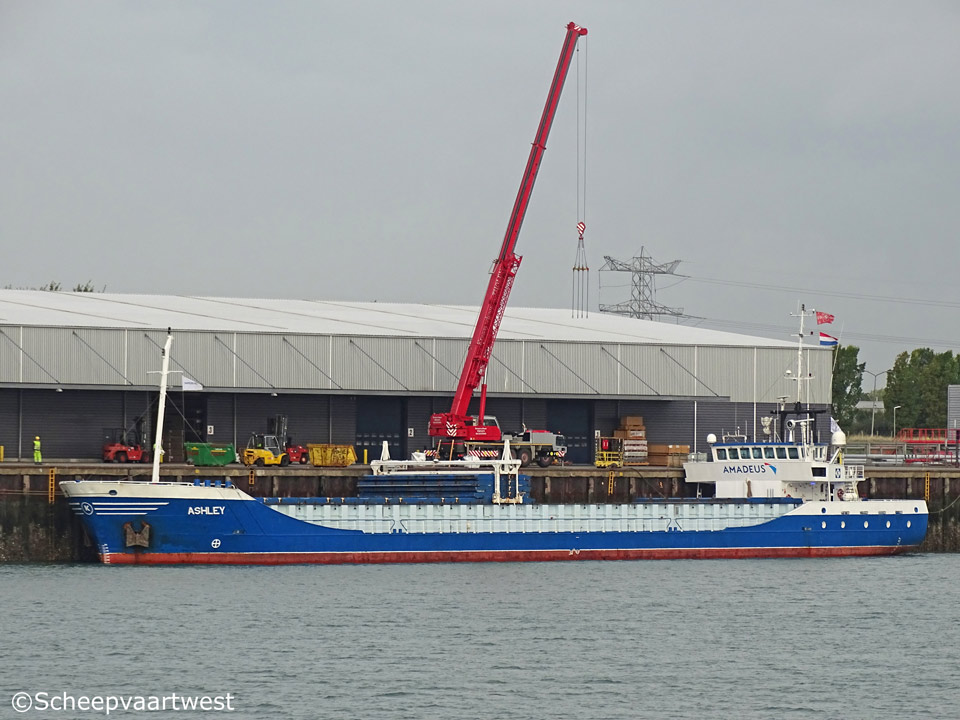

Ashley 01
 Vlissingen 18 October 2016



Name

ASHLEY

Previous names

2000 - 02.2007 Hydra

Type

Multi-purpose dry cargo - heavycargo

IMO-number

9201944

Call sign

PEDN

Flag

The Netherlands

Port of registry

Enschede

Previous flags

07.2000 - 02.2007 The Netherlands, Groningen

GT

2.056 t

DWT

Summer: 2.800 t

NT

1.168 t

Number of 20ft containers

108

Length

88,95 m overall

84,95 m between perpendiculars

Breadth

12,40 m

Draught

Summer: 4,34 m

Winter: 4,26 m

Air draft

9,30 m ballast

Freeboard

1.020 mm

Depth

5,65 m moulded

Speed

10,5 knots

Built

2000

Launch date

24.03.2000

Date of completion

15.07.2000

Builder casco

Ceskoslovenska Plavba Labska AS
Decin
Czechoslovakia

Builder completion

Scheepswerf Peters BV
Kampen
The Netherlands

Yard number

470

Hull material

Steel

Watertight compartments

5

Movable bulkheads

2

Continuous decks

1

Main engine

1x Wärtsilä 8L20 - 4 stroke single acting 8 cylinder 200 x 280 mm diesel engine 1.320 kW / 1.793 hp at 1.000 rpm

Built: 2000

Builder: Wärtsilä NSD Corporation, Vaasa - Finland

Propellers

1x Screw propeller solid - aft at 241 rpm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency:50 Hz

Generators

2x Main diesel generatorsets each 37 kVA - 30 kW - 150 hp

Emergency generator

1x Main diesel generatorset 25 kVA - 20 kW - 95 hp

Bow thruster

1x 360 kW

Number of holds

1

62,40 x 10,24 x 6,70 m (blk. stowed in hold) box on 55,90 m - Narrowing in forepart on 5,50 m to width of 7,00 m

Total capacity of holds

Grain/Bale: 3.877 m³ / 151.000 ft³

Number of hatches

1

62,40 x 10,24 m

Clear hatch opening: 48,50 m

Hatch type

Coops & Nieborg pontoon hatches

Max. permitted loads

Tank top: 15.0 t/m²

Tank capacities

MGO: 195 m³

Water ballast: 1.277 m³

Fresh water: 33 m³

Cargo gear

Gearless

Manager

Wagenborg Shipping B.V.
Delfzijl
The Netherlands

Registered owner

C.V. Scheepvaartonderneming Kirk
Enschede
The Netherlands

Previous names & owners

07.2000 - 02.2007 Hydra - C.V. Scheepvaartonderneming Hydra, Ten Boer - The Netherlands

Latest data adjustment

01 December 2016
