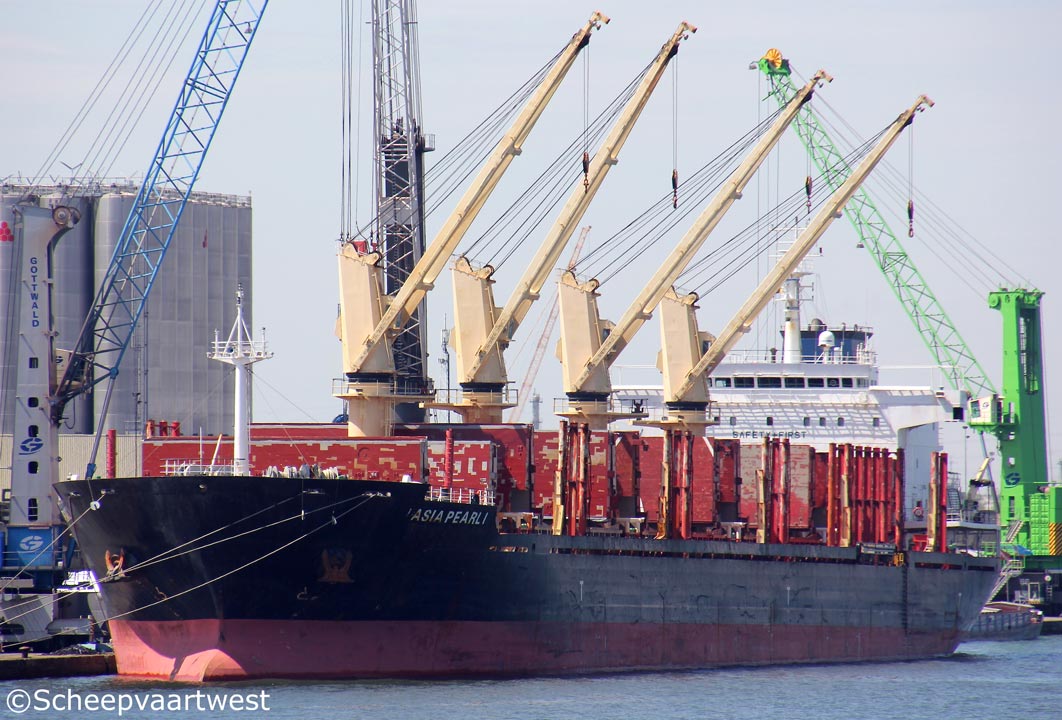

Asia Pearl I 01

Antwerpen 17 May 2017



Name

ASIA PEARL I

Previous names

2009 Pretty Delta

Stella Jabbah until 09.2012

09.1012 - 12.2014 United Takawangha

Type

Bulk carrier

IMO-number

9502752

Call sign

9V3190

Flag

Republic of Singapore

Port of registry

Singapore City

GT

22.402 t

DWT

Summer: 35.283 t

NT

12.019 t

Length

179,90 m overall

171,50 m between perpendiculars

Breadth

28,40 m

Draught

10,80 m

Freeboard

4.224 mm

Depth

15,00 m

Speed

13,5 knots laden

14,0 knots ballast

Max.: 15,2 knots

Built

2010

Date of completion

28.01.2010

Builder

Nantong Changqingsha Shipyard Co.,Ltd.
China

Yard number

CQS-0804

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

1x STX/MAN B&W 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm diesel engine 6.480 kW / 8.804 hp at 136 rpm

Builder: STX Corporation, Seoul - South Korea

Propellers

1x Screw propeller solid - aft at 136 rpm

Boilers

1x CHM Greens Shazhou 226,00 m² - 7,0 bar

Generators

3x Xinzhong CXZ MAN 5L16/24 main diesel generatorsets each 581 kVA - 465 kW - 679 hp at 1.200 rpm

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 179 hp

Number of holds

5

Hold 1: 24,60 x 10,05m/23,70 m (6,910.7 cbm)

Hold 2: 28,80 x 24,60 m (10,018.3 cbm)

Hold 3: 28,80 x 24,60 m (9,375.5 cbm)

Hold 4: 28,80 x 24,60 m (10,018.3 cbm)

Hold 5: 25,60 x 23,30 m/11,25 m (7,971.6 cbm)

Cargo hold capacity

Hold 1: 6.910,7 m³

Hold 2: 10.018,3 m³

Hold 3: 9.375,5 m³

Hold 4: 10.018,3 m³

Hold 5: 7.971,6 m³

Total:

Grain: 44.264,3 m³

Bale: 42.586,8 m³

Number of hatches

5

Tank capacities

Fuel oil: 1.665,5 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Uniteam Marine Shipping GmbH
Hamburg
Germany

Operator

Asia maritme pacific

Rowan Court, Suite 3

56 High Street

Wimbledon

London SW19 5E
United kingdom

Registered owner

Maritime Asia Pearl Pte. Ltd.

Latest data adjustment

30 May 2017
