Antwerpen 05 December 2016 |
Antwerpen 05/12/16 |
Name |

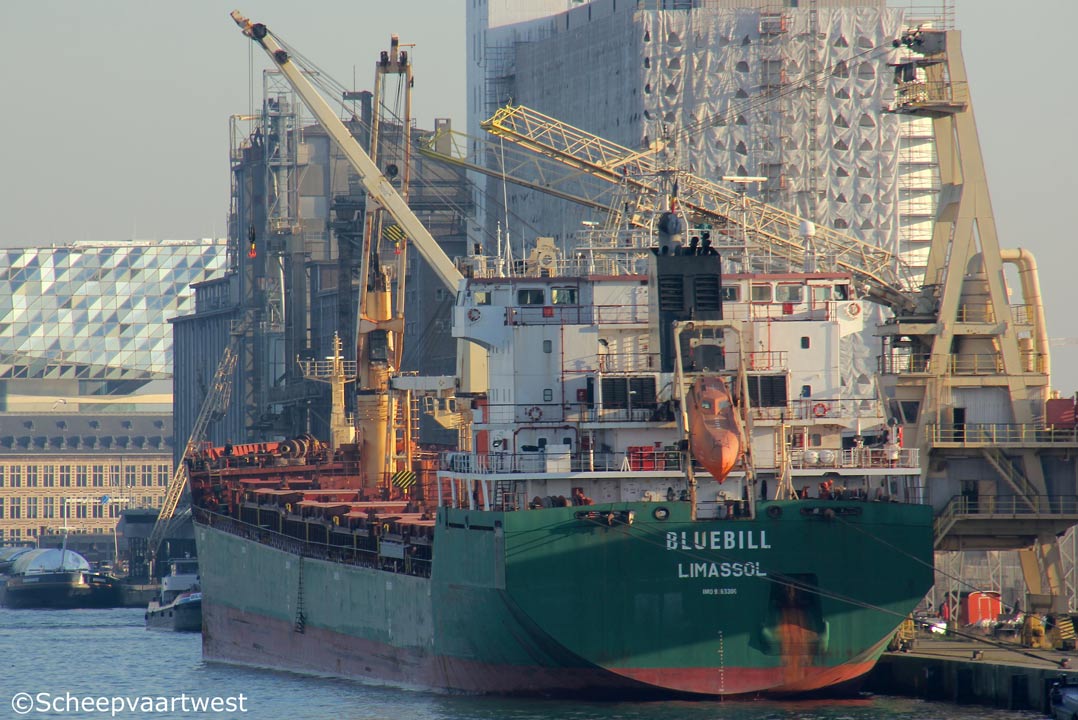

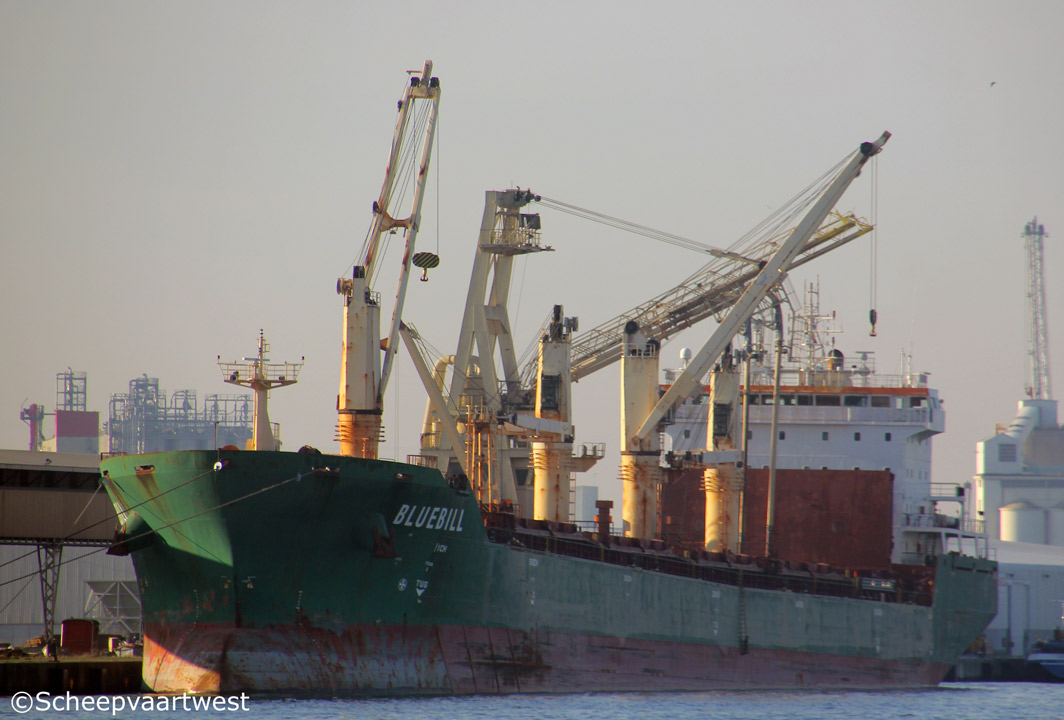

BLUEBILL |
Previous names |
2004 Built as: Padang |
Type |
Bulk carrier |
IMO-number |
9263306 |
Call sign |
C4FK2 |
Flag |
Cyprus |
Port of registry |
Limassol |
DWT |
22.655 t |
NT |
37.461 t |
Number of 20ft containers |
12.073 t |
Length |
199,85 m overall 192,00 m between perpendiculars |
Breadth |
23,78 m extreme |
Draught |
11,27 m |
Air draft |
34,54 m (Without holds flooded but fully ballasted) |
Depth |
15,27 m |
Speed |
13,5 knots |
Built |
2004 |
Keel laid |
18.06.2002 |
Launch date |
19.01.2004 |
Date of completion |
18.06.2004 |
Builder |
Shanghai Shipyard |
Yard number |
SS1103 |
Hull material |
Steel |
Hull type |
Single hull |
Main engine |
1x STX Man B&W 6S46MC-C - 6 cylinder diesel engine 7.200 kW / 9.655 bhp @ 118,2 rpm |
Propellers |
1x Fixed propeller |
Boilers |
1x Auxiliary boiler, composite AQ-16 |
Generators |
3x Yanmar 6N21L-SV diesel generatorsets |
Emergency generator |
1x MAN D 2866 TE diesel generatorset |
Bow thruster |
1x 900 kW / 1.224 bhp |
Number of holds |
Hold 1: 19,20 x 16,80 x 21,40 m Hold 2: 27,20 x 21,40 m Hold 3: 27,20 x 21,40 m Hold 4: 27,20 x 21,00 m Hold 5: 27,20 x 21,40 m Hold 6: 19,20 x 21,40 x 15,60 m |
Hold capacity |
Grain/ bale: Hold 1: 5.176,4 m³ / 5.124,6 m³ Hold 2: 8.290,8 m³ / 8.207,9 m³ Hold 3: 8.139,2 m³ / 8.057,8 m³ Hold 4: 8.025,9 m³ / 7.945,6 m³ Hold 5: 7.397,2 m³ / 7,945,6 m³ Hold 6: 5.120,5 m³ / 5.069,3 m³ Total: 42.778,7 m³ / 42.350,8 m³ |
Number of hatches |
Hatch 1: 12,00 x 15,60 m Hatch 2: 19,20 x 17,60 m Hatch 3: 19,20 x 17,60 m Hatch 4: 19,20 x 17,60 m Hatch 5: 19,20 x 17,60 m Hatch 6: 12,80 x 17,60 m |
Hatch type |
MacGregor high stowing & folding, operated by external hydraulic cylinders |
Anchor equipment |
Length: 604,40 m Diameter: 64 mm |
Cargo gear |
4x Decks cranes - SWL 40,0 t each |
Manager |
Navarone SA |
Registered owner |
Dale Shipping Co. Ltd. |
Latest data adjustment |
25 December 2016 |
