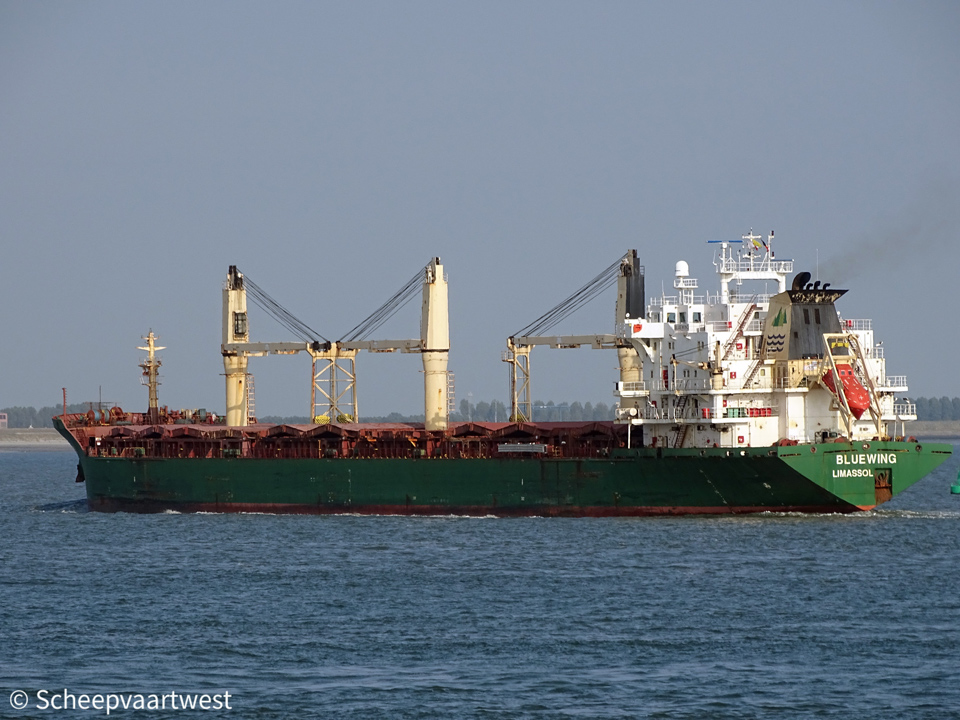

Bluewing 01

Westerschelde 22 August 2018



Name

BLUEWING

Type

Bulk carrier - Handysize

IMO-number

9230919

Call sign

P3CU9

Flag

Cyprus

Port of registry

Limassol

GT

18.311 t

DWT

Summer: 26.747 t

NT

8.979 t

Length

186,41 m overall

177,10 m between perpendiculars

Breadth

24,02 m extreme

23,69 m moulded

Draught

Max: 9,70 m

Air draft

2970 m (Without holds flooded but fully ballasted)

Depth

14,19 m

Speed

Service: 13,5 knots

Max: 17,1 knots

Built

2002

Keel laid

19/12/2000

Launch date

08/11/2001

Date of completion

08/02/2002

Builder

Xinlian Shipyard

Wuhu
China

Yard number

W0011

Hull material

Steel

Main engine

1xHudong/MAN B&W 7S42MC - 2 stroke 7 cylinder combustion engine 6.504 kW / 8.722 bhp at 122,0 rpm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, composite - Aalborg AQ-16

Generators

3x Yanmar 6N21L-SV main diesel generatorsets each 850 kVA

Emergency generator

1x MAN D2866E diesel generatorset

Bow thruster

1x 900 kW / 1.224 bhp

Number of holds

6

Hold 1: 19,20 x 8,80 m fwd / 17,30 m aft

Hold 2: 24,80 x 20,10 m

Hold 3: 25,60 x 20,10 m

Hold 4: 19,20 x 17,40 m

Hold 5: 25,60 x 20,10 m fwd / 18,10 m aft

Hold 6: 20,00 x 18,40 m fwd / 11,00 m aft

Cargo hold capacity

Grain / Bale

Hold 1: 4.375,0 / 4.263,4 m³

Hold 2: 7.194,6 / 7.011,0 m³

Hold 3: 7.386,4 / 7.198,0 m³

Hold 4: 4.666,6 / 4.547,5 m³

Hold 5: 7.384,5 / 7.196,1 m³

Hold 6: 5.289,9 / 5.155,0 m³

Total: 36.297,0 / 35.371,0 m³

Number of hatches

6

Hatch 1: 15,20 x 13,20 m

Hatch 2: 19,20 x 17,40 m

Hatch 3: 19,20 x 17,40 m

Hatch 4: 14,40 x 17,40 m

Hatch 5: 19,20 x 17,40 m

Hatch 6: 15,20 x 13,20 m

Hatches type

MacGregor high stowing & folding, operated by external hydraulic cylinders

Tank capacities

Ballast: 13.364,3 m³

Anchor equipment

Length: 577,50 m

Diameter: 60 mm

Cargo gear

3x Cranes - SWL 40,0 t each

Crew size

21

Manager

Navarone SA
Chimarras 6

Marousi 151 25
Greece

Registered owner

Navarone Marine Enterprise Athens
Greece

Latest data adjustment

20 November 2018
