Antwerpen 23 December 2016 |
|
Name |

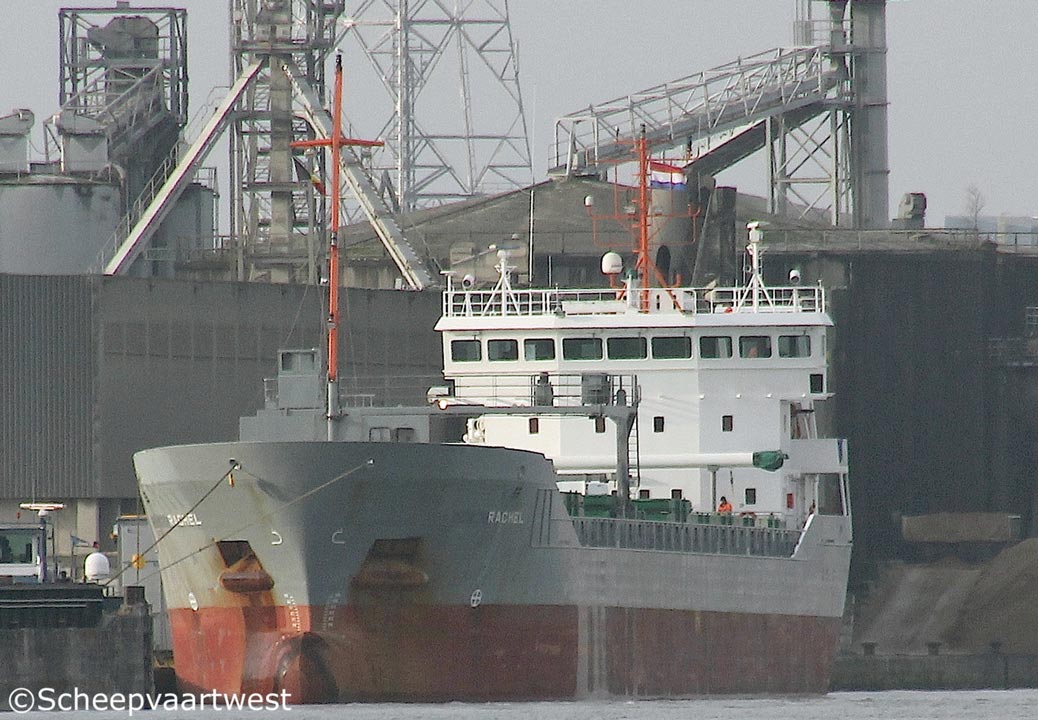

RACHEL |
|
Previous names |
03/2009 - 12/2016 Flinterrachel |
|
Type |
General cargo ship - Heavycargo |
|
IMO-number |
9361122 |
|
Call sign |
PCMZ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
03/2009 - 11/2014 The Netherlands, Rotterdam - Call sign: PBOO 11/2014 - 12/2016 Antigua & Barbuda, St. John's - Call sign: V2GQ5 |
|
GT |
3.442 t |
|
DWT |
5.759 t |
|
NT |
1.903 t |
|
Number of 20ft containers |
166 |
|
Length |
99,80 m overall 94,79 m between perpendiculars |
|
Breadth |
14,00 m |
|
Draught |
6,12 m |
|
Air draft |
21,00 m |
|
Freeboard |
1.042 mm |
|
Depth |
7,15 m |
|
Speed |
12,0 knots |
|
Built |
2009 |
|
Keel laid |
2008 |
|
Launch date |
16/01/2009 |
|
Date of completion |
04/03/2009 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
318 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.446 bhp at 750 rpm Start type: Compressed air Built: 08/2008 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 196 rpm 4 blades |
|
Shaft generator |
1x 388 kVA - 310 kW |
|
Generators |
2x Diesel generatorsets each 210 kVA - 168 kW - 245 hp |
|
Emergency generator |
2x Sisu 645DSBIG - 6 cylinder 111 x 145 mm diesel engine each 180 kW / 245 hp at 1.500 rpm coupled with Stamford generatorsets each 210 kVA |
|
Bow thruster |
1x Veth thruster 250 kW |
|
Number of holds |
1 72,00 x 11,50 x 8,35 m |
|
Total capacity of holds |
Grain / Bale 6.879 m³ / 241.000 ft³ |
|
Hold ventilation |
6x Air-changes/hr |
|
Number of hatches |
1 72,00 x 11.50 m |
|
Max. permitted loads |
Hatchcover: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 351,6 m³ Ballast water: 1.968 m³ Potable water: 67 m³ Lub oil: 7 m³ |
|
Lifting equipment |
1x Gantry crane - SWL 15,0 t 1x Lagendijk store crane - SWL 999 kg @ 10,50 m |
|
Manager |
Rivermaas B.V. Rhoon The Netherlands |
|
Previous managers |
03/2009 - 12/2016 Flinter Management B.V., Barendrecht - The Netherlands 12/2016 - 09/2017 Management Facilities Group, 9936 BH Farmsum - The Netherlands |
|
Owner |
Monte Zoncolan Rachel B.V. Rhoon The Netherlands |
|
Previous names & owners |
03/2009 - 11/2014 Flinterrachel - Scheepvaartonderneming Flinterrachel C.V., Vlissingen - The Netherlands 11/2014 - 12/2016 Flinterrachel - Flinter Rachel Ltd., Rotterdam - The Netherlands 12/2016 - 09/2017 Rachel - Flinter Rachel Ltd., Rotterdam - The Netherlands |
|
Renamed |
01/2020 Fri Bergen Norway, Kopervik - Call sign: LAKB8 Manager & Owner: Kopervik Ship Management AS, Kopervik - Norway |
|
Latest data adjustment |
19 March 2020 |
