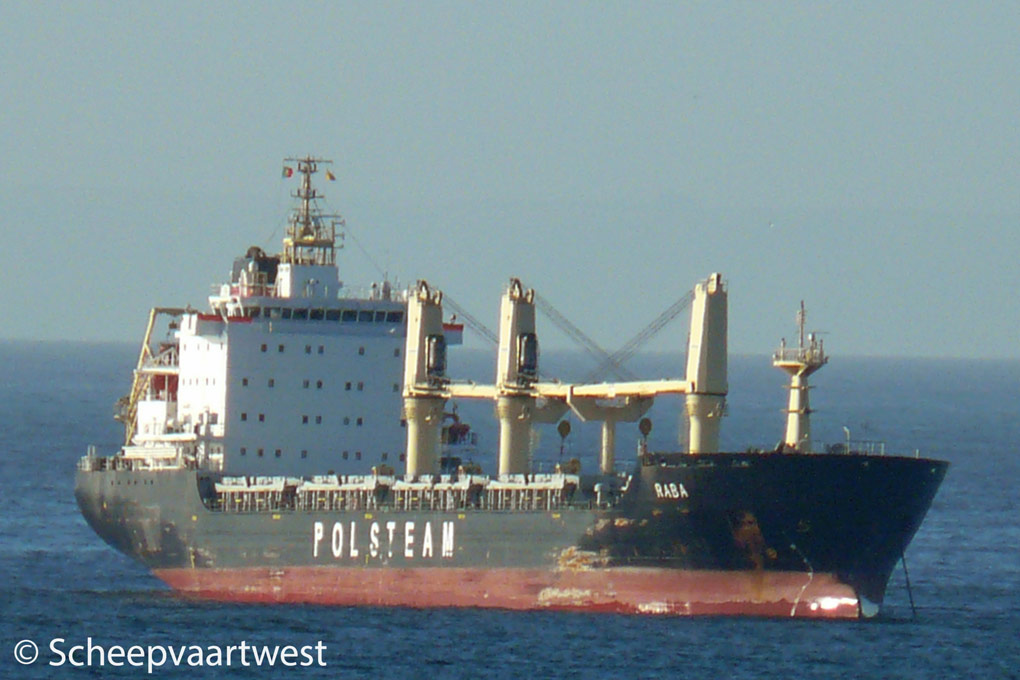

Raba 03
Cascais, Portugal 14 June 2013

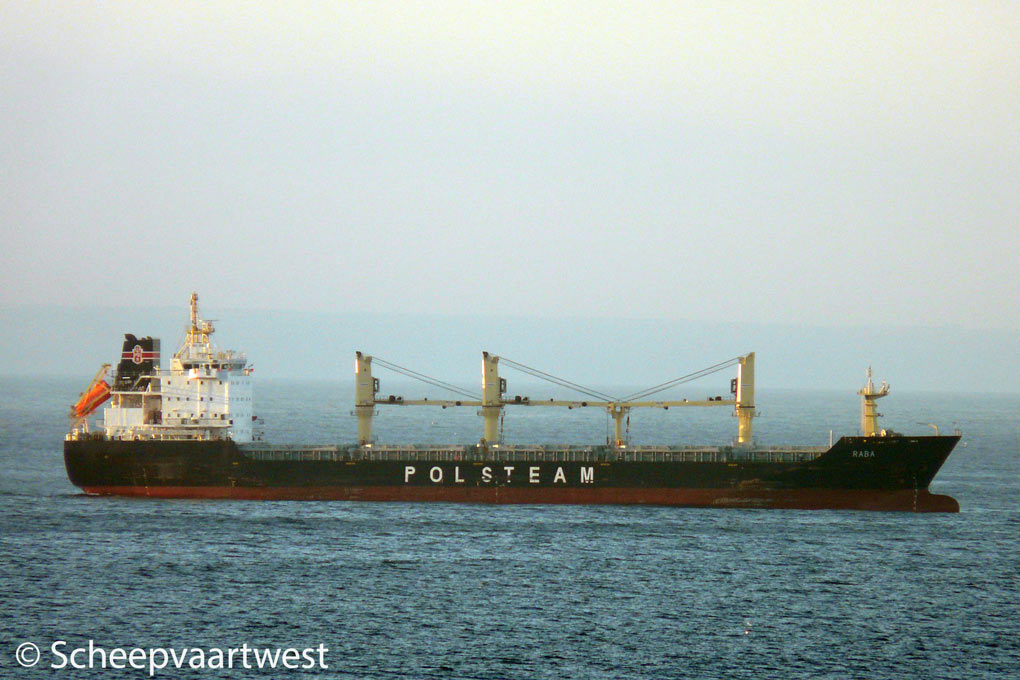

Raba 02
Cascais 13/06/13



Name

RABA

Type

Bulk carrier

IMO-number

9521825

Call sign

A8ZQ7

Flag

Liberia

Port of registry

Monrovia

GT

13.579 t registered

Suez: 14.156,05 t

DWT

16.593 t

NT

5.247 t registered

Panama: 11.399,75 t

Suez: 11.731,47 t

Length

149,96 m overall

140,80 m between perpendiculars

Breadth

23,60 m moulded

Freeboard

4.081 mm

Depth

12,50 m moulded

Keel laid

11.10.2010

Launch date

08.09.2011

Date of completion

26.03.2012

Builder

Taizhou Sanfu Ship Engineering Co., Ltd.
Taizhou Jiangsu
China

Yard number

SF080103

Hull material

Ordinary strength steel

High strength steel

Watertight bulkheads

13

Main engine

1x STX-MAN 5S50MC-C - 5 cylinder 500 x 2.000 mm diesel engine - 6.570 kW at 127,0 rpm

Manufacturer: STX (Dalian) Engine Co., Ltd.

Propellers

1x Controllable pitch propeller

Manufacturer: Scana Zamech SP. ZO.O

Boilers

Composite Boiler - 8,0 bar

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

1x Main diesel generatorset 644,8 kW

2x Main diesel generatorsets each 520 kW

Manufacturer: CSIC Electrical Machinery Science & Technology Co.

Number of tanks

Ballast: 14

Fuel oil: 12

Lubricating oil: 10

Diesel oil: 4

Waste water: 4

Fresh water: 4

Hydraulic oil: 2

Slop: 2

Chain: 2

Sludge: 2

Organic compound: 1

Tank capacities

Diesel oil: 154,56 m³ / 139,10 t

Fresh water: 233,05 m³

Fuel oil: 187,08 m³ / 172,60 t

Hydraulic oil: 12,09 m³ / 2,74 t

Lube oil: 128,26 m³ / 116,81 t

Lifting equipment

1x Monorail provision crane - SWL 3,0 t

Manufacturer: Fuchs Foerdertechnik AG

Cargo gear

3x Deck crane type GLBE3022-2/2422GR- SWL 30,0 t

Manufacturer: Nantong Rainbow Heavy Machinerics Co, Ltd.

Manager

Polsteam Shipping Co., Ltd Limassol
C/O Polish Steamship Company
Pl. Rodla 8
Szczecin
Poland

Operator

Polsteam

Registered owner

Polsteam Shipping Co, Ltd.
Limassol

Cyprus

Last update

20 June 2013
