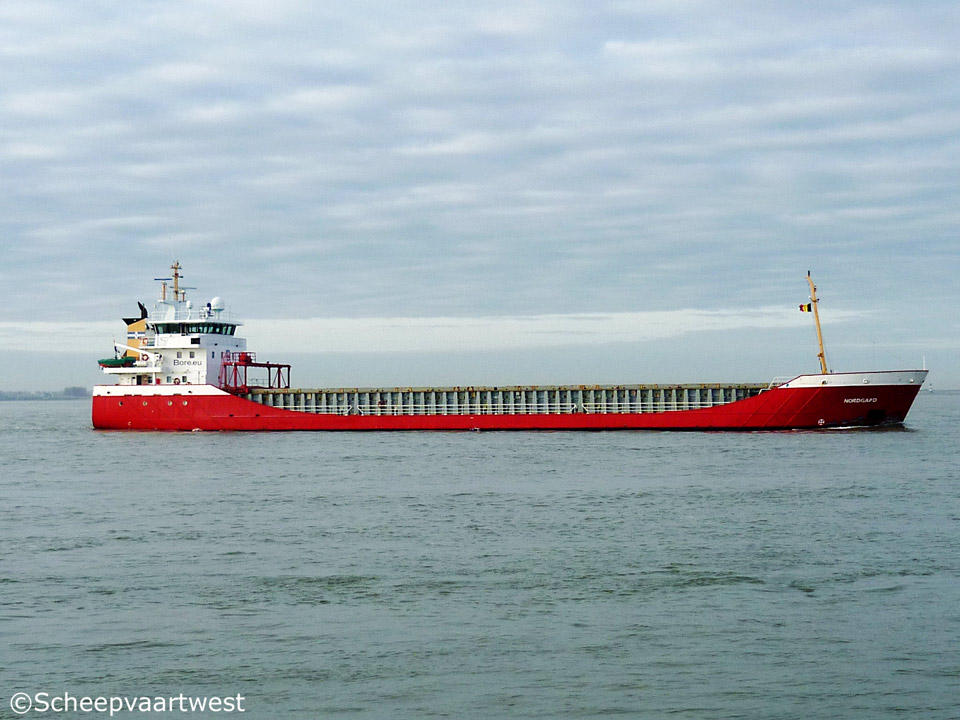

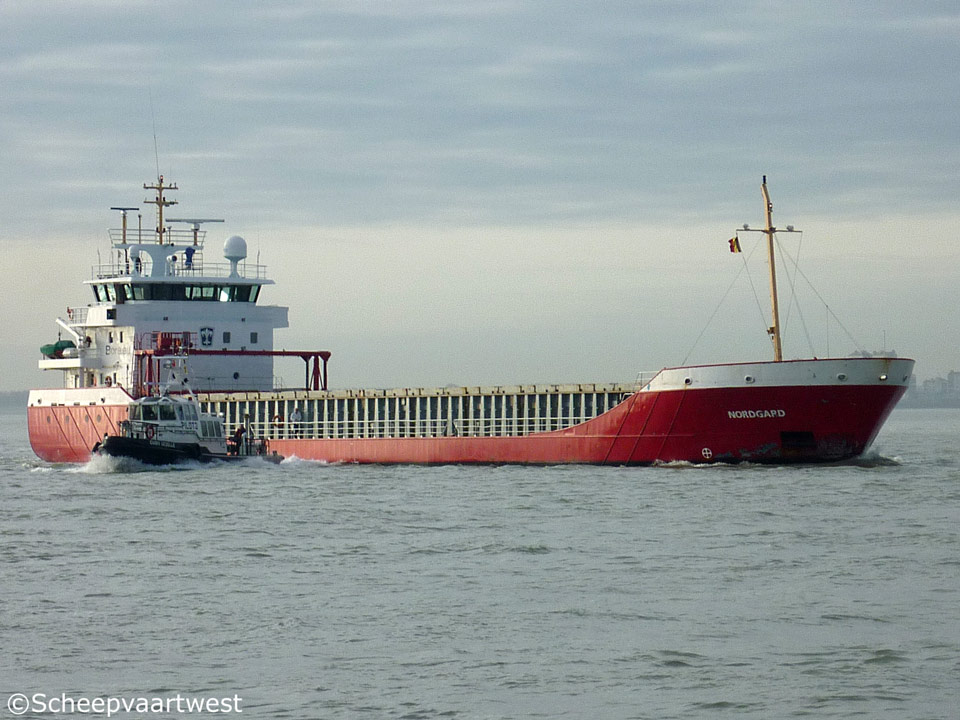

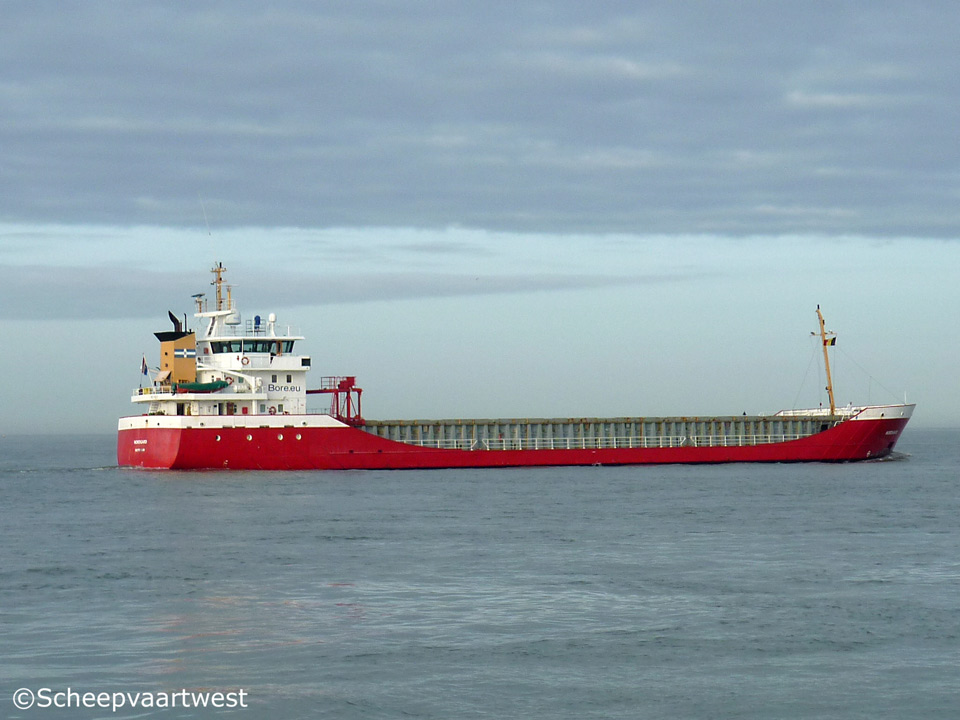

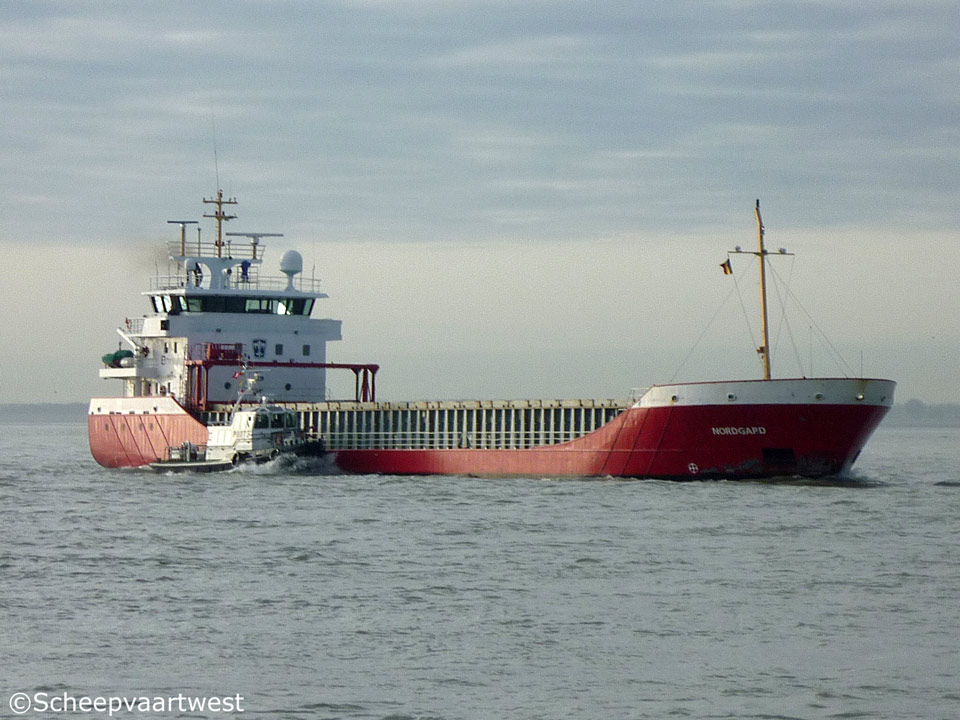

Westerschelde 11 March 2012 |
 |
 |
 |
||
| Westerschelde 11/03/12 | Westerschelde 11/03/12 | Westerschelde 11/03/12 |
|
Name |
NORDGARD |
|
Previous names |
1999 - 01.2006 Thalassa 01.2006 - 12.2006 Liamare 12.2006 - 11.2014 Nordgard |
|
Type |
Multi-purpose general cargo ship - Fully box, open hatch - Strengthened for heavy cargoes - Container ship |
|
IMO-number |
9148180 |
|
Call sign |
PIBU |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
02.1999 - 01.2006 The Netherlands, Harlingen - Call sign: PIBU 01.2006 - 12.2006 The Netherlands, Maartensdijk - Call sign: PIBU |
|
GT |
2.780 t |
|
DWT |
Summer: 3.714 t |
|
DWCC |
Summer: 3.590 t |
|
NT |
1.587 t |
|
Number of 20ft containers |
208 |
|
Length |
89,25 m overall 83,69 m between perpendiculars |
|
Breadth |
13,30 m moulded |
|
Draught |
Summer: 5,67 m Winter: 5,60 m |
|
Air draft |
29,00 m in ballast |
|
Freeboard |
1.195 mm |
|
Depth |
7,15 m moulded |
|
Speed |
Max.: 14,0 knots Service: 12,5 knots |
|
Built |
1999 |
|
Keel laid |
26.08.1998 |
|
Launch date |
19.12.1998 |
|
Date of completion |
06.02.1999 |
|
Builder |
Scheepswerf Peters B.V. |
|
Yard number |
454 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine 1.800 kW / 2.445 hp at 750 rpm Built: 1998 Manufacturer: Maschinenbau Kiel A.G., Kiel - German Federal Republic |
|
Propellers |
1x Screw propeller controllable pitch - aft at 750 rpm |
|
Rudder |
1x Flap rudder |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
1x Main diesel generatorset 155 kVA - 124 kW - 182 hp |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 95 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 |
|
Cargo hold capacity |
Grain/Bale : 5.805 m³ |
|
Hold ventilation |
6x Air changes per hour basis empty hold |
|
Number of hatches |
1 62,4 x 11,16 m |
|
Tank capacities |
HFO: 295 m³ Ballast water: 1.600 m³ Fresh water: 40 m³ |
|
Manager |
Bore Shipowners B.V. |
|
Previous managers |
02.1999 - 05.2001 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands 05.2001 - 01.2006 Thalassa B.V., Harlingen - The Netherlands 01.2006 - 12.2006 Flinter Management B.V., Barendrecht - The Netherlands |
|
Owner |
Bore Nordgard B.V. |
|
Previous names & owners |
02.1999 - 05.2001 Thalassa - G. Switynk, Harlingen - The Netherlands 05.2001 - 01.6006 Thalassa - Thalassa B.V., Harlingen - The Netherlands 01.2006 - 12.2006 Liamare - Scheepvaartbedrijf A.J. Kok, Maartensdijk - The Netherlands |
|
Renamed |
11.2014 Nordborg - The Netherlands, Rotterdam - Call sign: PIBU Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Scheepvaartonderneming Nordborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
29 January 2017 |
