Westerschelde 14 December 2016 |
|
Name |

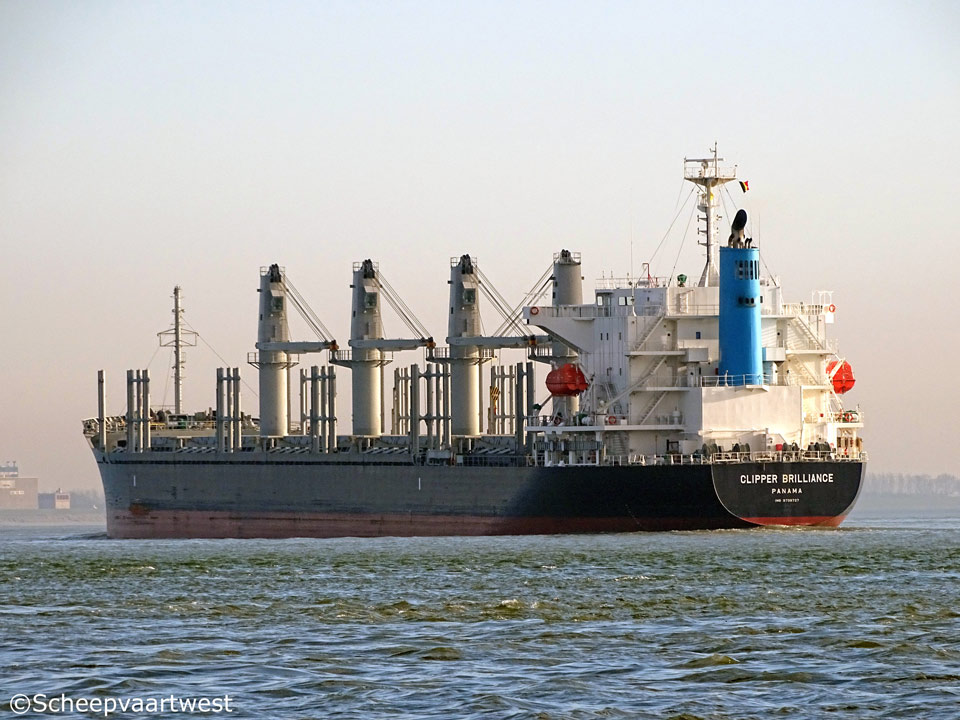

CLIPPER BRILLIANCE |
|
Type |
Bulk Carrier- handysize - strengthened for heavy cargo loading |
|
IMO-number |
9738727 |
|
Call sign |
3FAF2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
23.281 t registered |
|
DWT |
37.786 t |
|
NT |
12.101 t registered |
|
Length |
179,97 m |
|
Breadth |
29.80 m moulded |
|
Draught |
Summer: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Freeboard |
Summer: 4.500 mm Winter: 4.719 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max.: 16,2 knots Service; 14,0 knots |
|
Built |
2015 |
|
Keel laid |
08.08.2013 |
|
Launch date |
04.03.2015 |
|
Date of completion |
21.04.2015 |
|
Builder |
Imabari Shipbuilding Co., Ltd. |
|
Yard number |
838 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W/Makita 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine: Max.: 6.820 kW at 110 rpm Normal output: 5.795 at 104 rpm Manufacturer: Makita Corporation, Amagasaki - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,00 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 440 kW |
|
Number of holds |
5 |
|
Hold capacity |
Grain / Bale Hold 1: 7.256,50 m³ / 6.929,13 m³ Hold 2: 9.261,78 m³ / 8.907,71 m³ Hold 3: 9.295,86 m³ / 8.907,56 m³ Hold 4: 9.284,21 m³ / 8.909,98 m³ Hold 5: 8.761,75 / 8.455,19 m³ Total 46.994,86 m³ / 45.238,33 m³ |
|
Number of hatches |
5 |
|
Tank capacities 100% |
Fuel oil: 1.945,85 m³ Fresh water: 294,84 m³ Water ballast: 15.089,33 m³ Lub oil: 18,56 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Manager |
Shoei Kisen Kaisha, Ltd. |
|
Operator |
Clipper Bulk Shipping Bahamas |
|
Registered owner |
Pedregal Maritime S.A. |
|
Latest data adjustment |
02 February 2017 |
