Westerschelde 02 February 2017 |
 |
| Antwerpen 31/01/17 |
|
Name |

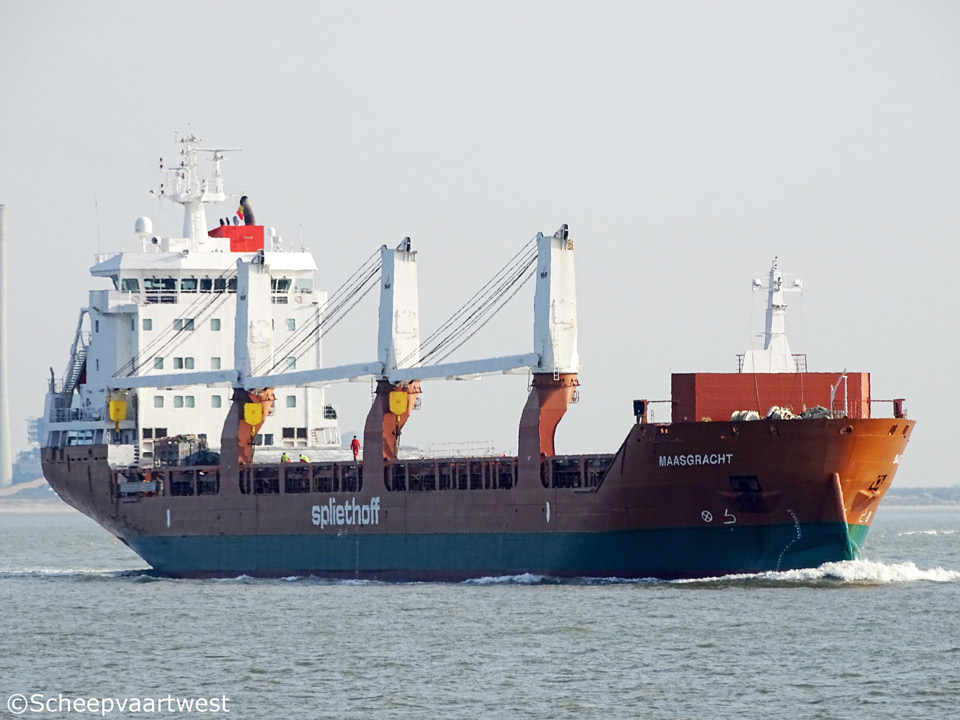

MAASGRACHT |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9571492 |
|
Call sign |
PCLC |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
9.524 t |
|
DWT |
12.200 t excl. tweendeck 11.780 t incl. tweendeck |
|
NT |
4.187 t |
|
Number of 20ft containers |
691 |
|
Length |
142,10 m overall 137,00 m between perpendiculars |
|
Breadth |
18,90 m moulded |
|
Draught |
Summer: 8,48 m |
|
Height hold as SID |
11,80 m |
|
Height lower hold as TWD |
3,36 or 6,40 or 8,36 m |
|
Height tween deck as TWD |
7,75 or 4,70 or 2,75 m |
|
Speed |
14,5 knots |
|
Built |
2011 |
|
Date of completion |
15.07.2011 |
|
Builder |
Zhejiang Ouhua Shipyard |
|
Yard number |
591 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 6L46 - 4 stroke single acting 6 cylinder 460 x 580 mm diesel engine 5.430 kW 7.380 bhp |
|
Propellers |
1 |
|
Cargo hold capacity |
Grain/bale: 15.640 m³ - 552.100 ft³ |
|
Hatches |
Weather deck: N°1: 25,60 x 15,80 m N°2: 64,00 x 18,80 m Steel, end folding/rolling/lift away type Tween deck: N°1: 25,60 x 15,80 m N°2: 57,60 x 15,80 m Consisting: 14 steel pontoons: 10x 6,35 x 15,80 m 3x 5,24 x 15,80 m 1x 3,30 x 15,80 m |
|
Floor space |
Tanktop: 1.242 m² Tween deck: 1.415 m² Weather deck: 1.596 m² |
|
Max.: permitted loads |
Weather deck hatch covers: 2,0 t/m² Tweendeck hatch covers: 4,5 t/m² tanktop: 20,0 t/m² |
|
Cargo gear |
3x Cranes on starboard side: SWL 80 t / 18,00 m SWL 65 t / 22,00 m SWL 50 t / 28,00 m |
|
Manager |
Spliethoff's Bevrachtingskantoor B.V. |
|
Owner |
Spliethoff group |
|
Registered owner |
C.V. Scheepvaartonderneming Maasgracht |
|
Latest data adjustment |
13 February 2017 |
