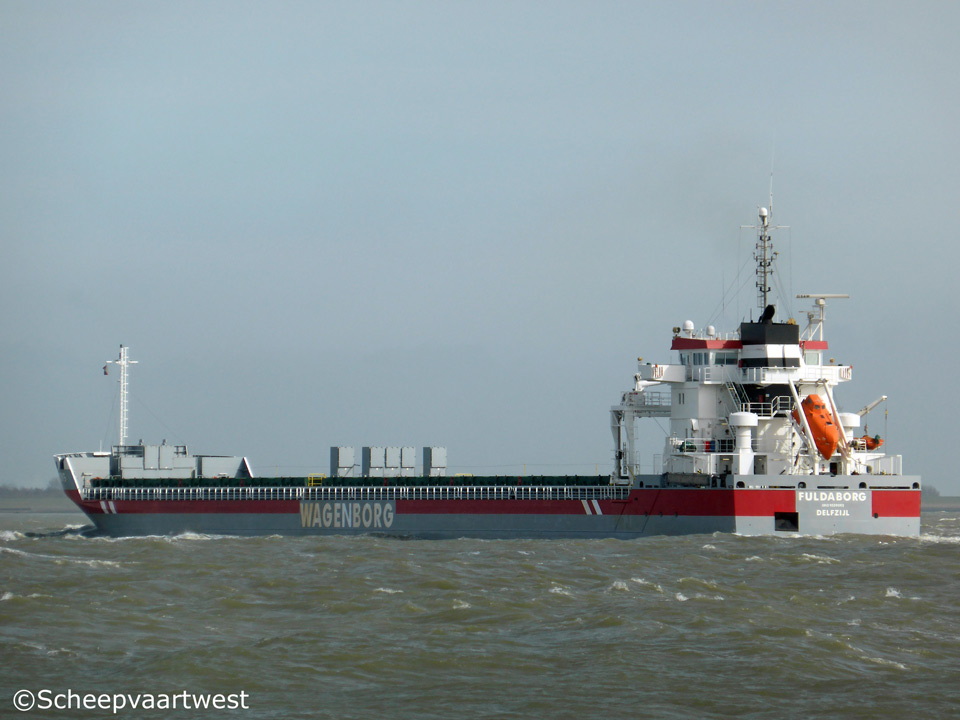

Fuldaborg 01

Westerschelde 30 March 2015



Name

FULDABORG

Type

General cargo ship / Containership

IMO-number

9559092

Call sign

PCNZ

Flag

The Netherlands

Port of registry

Delfzijl

GT

8.911 t

DWT

Summer: 14.603 t

DWCC

Summer: 13.500 t

NT

4.419 t

Number of 20ft containers

475

Length

154,60 m overall

148,14 m between perpendiculars

Breadth

17,20 m

Draught

Summer: 8,19 m

Winter; 8,02 m

Air draft

29,00 m ballast

Freeboard

3.401 mm

Depth

11,55 m moulded

Speed

13,0 knots

Built

2012

Keel laid

17.06.2010

Launch date

11.04.2012

Delivery date

31.05.2012

Builder

Ferus Smit leer GmbH

Leer
Germany

Yard number

402

Hull material

Steel

Hull type

Double skinned

Continuous decks

1

Main engine

1x Wärtsilä 9L32 - 4 stroke 9 cylinder 320 x 400 mm diesel engine 4.500 kW / 6.114 bhp at 750 rpm

Builder: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland

Propellers

1 Screw propeller controllable pitch with nozzle - diameter 4.200 mm

Boilers

1x CHO 26,20 m² - 10,0 bar
1x CHR 59,00 m² - 10,0 bar

Shaft generator

1x 921 kVA - 737 kW

Generators

2x Main diesel generatorsets each 375 kVA - 300 kW - 512 hp

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW - 136 hp

Bow thruster

1x 640 kW

Number of holds

2

Hold 1: 50,4 x 14,34 x 11,47 m

Hold 2: 61,6 x 14,34 x 11,47 m

Total capacity of holds

Grain: 17.415 m³ / 615.000 ft³

Hold ventilation

Electrical ventilation

2x Air changes per hour basis empty holds

Both holds fitted with dehumidifier system

Number of hatches

2

Hatch 1: 50,4 x 14,34 m

Hatch 2: 61,6 x 14,34 m

Hatch type

Fully open hatch

Tween decks

The vessel is equipped with a full tween-deck, consisting of loose tween-deck pontoons of each:

Tweendeck sizes:

No. 1 + 2 L x H x B 5,57 x 7,17 x 0,48 m weight abt. 9,9 tons

No. 3 ~ 20 L x H x B 5,57 x 14,34 x 0,74 m weight abt. 23 tons

Tweendecks can be used as bulkheads

Hold 1: 3 bulkheads positions (spacing: 11,25 - 10,46 - 13,24 - 13,24)

Hold 2: 4 bulkheads positions (spacing: 13,24 - 13,26 - 13,26 - 13,24 - 5,60)

Tank capacities

HFO: 973,3 m³

MGO: 70,1 m³

Water ballast capacity: 6.059,8 m³

Fresh water: 60,2 m³

Manager

Wagenborg Shipping B.V.
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Registered owner

Scheepvaartonderneming Fuldaborg B.V.
Delfzijl
The Netherlands

Latest data adjustment

21 March 2017
