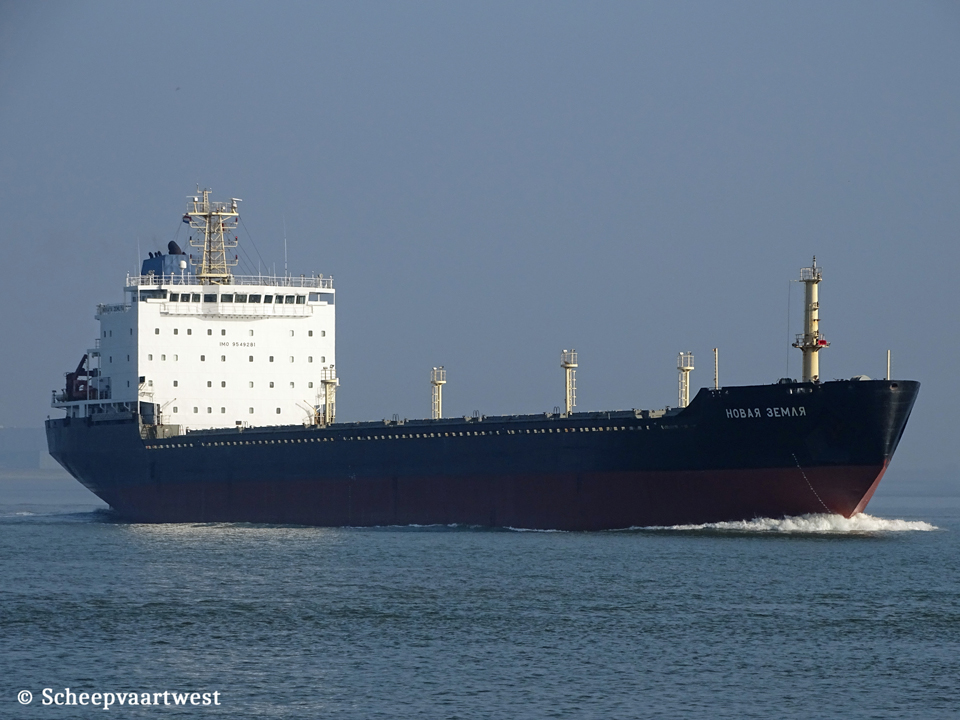

| Westerschelde 18 February 2017 |
 |
|

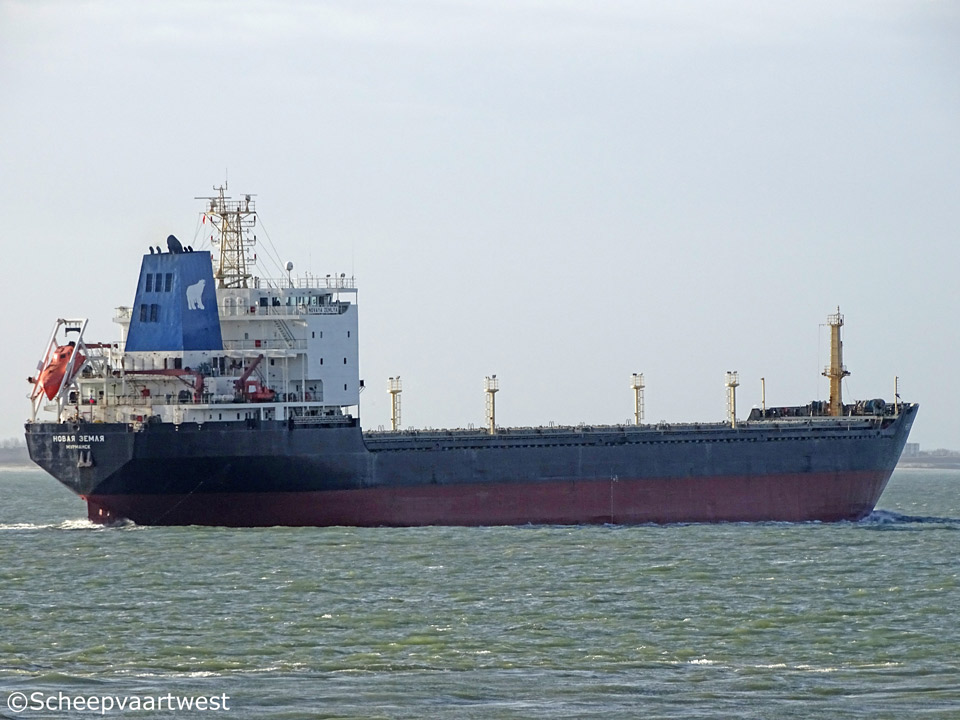

| Westerschelde 12/01/17 | |
|
Name |
NOVAYA ZEMLYA |
|
Russian name |
НОВАЯ ЗЕМЛЯ |
|
Previous names |
2009 - 04/2009 North Way |
|
Type |
Gearless bulk carrier - Handysize |
|
Sub type |
Ore, Container facility, Grain, Wood packaged |
|
IMO-number |
9549281 |
|
Call sign |
UFNZ |
|
Flag |
Russia |
|
Port of registry |
Murmansk |
|
Previous flag |
2009 – 04/2009 Cyprus, Limassol |
|
GT |
15.868 |
|
DWT |
Summer: 23.645 t |
|
NT |
7.206 |
|
Displacement |
31.755 t |
|
Light ship |
8.110 t |
|
Number of 20ft containers |
520 |
|
Length |
180,50 m overall 173,28 t between perpendiculars |
|
Breadth |
22,86 m moulded |
|
Draught |
9,91 m |
|
Depth |
13,50 m moulded |
|
Speed |
13,0 knots Max.: 15,2 knots |
|
Built |
2009 |
|
Keel laid |
06/08/2008 |
|
Date of completion |
24/03/2009 |
|
Builder |
Chengxi Shipyard Jiangyin China |
|
Yard number |
CX4228 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC-C Mk9 - 2 stroke 6 cylinder 500 x 1.000 mm combustion engine 9.480 kW / 12.900 bhp at 127,0 rpm Built: Russia 2007 |
|
Propellers |
1x Fixed pitched propeller with detachable blades 4 blades |
|
Generators |
3x Daihatsu main diesel generatorsets each 680 kW at 720 rpm |
|
Emergency generator |
1x Diesel generatorset 124 kW |
|
Number of holds |
7 |
|
Cargo hold capacity |
1x 2.185 m³ 1x 4.451 m³ 1x 3.162 m³ 1x 4.625 m³ 1x 3.187 m³ 1x 4.760 m³ 1x 3.075 m³ Grain total: 25.298 m³ |
|
Number of hatches |
7 6x 12,80 x 13,50 m 1x 12,80 x 10,80 m |
|
Max. permitted loads |
Hatch covers: 1,75 t/m² Tanktop: Hold 1: 22,5 t/m² Hold 2: 12,5 t/m² Hold 3: 29,0 t/m² Hold 4: 18,5 t/m² Hold 5: 29,0 t/m² Hold 6: 12,5 t/m² Hold 7: 29,0 t/m² |
|
Tank capacities |
Fuel oil: 1.350 m³ Water ballast: 9.806 m³ |
|
Lifting equipment |
1x Cranes - SWL 3,0 t 1x Cranes - SWL 3,2 t |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
ISM & commercial manager |
"Murmansk Shipping Company", Joint-Stock Company ul. Kominterna, 15 183038 Murmansk Russia |
|
Registered owner |
Murmansk Shipping Co. ul Kominterna 15 Murmansk, 183038 Russia |
|
Latest data adjustment |
15 May 2024 |
