Westerschelde 01 February 2017 |
|
Name |

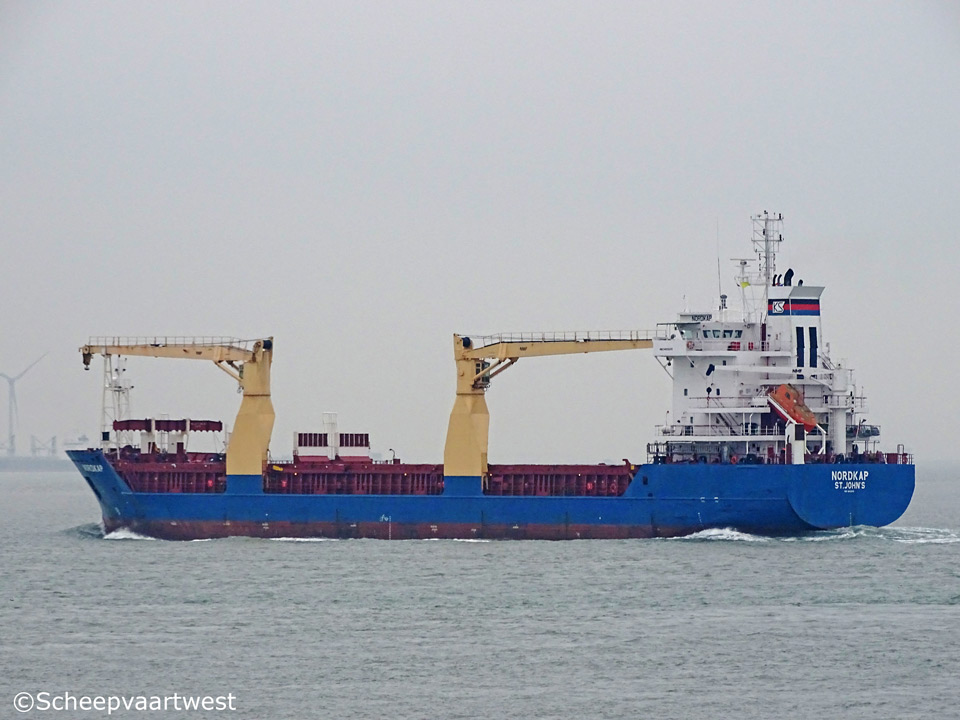

NORDKAP |
|
Previous names |
2000 Nordcap 2000 - 02.2004 Nordkap 02.2004 - 04.2005 Flinternoord 04.2005 - 07.2008 Normed Hamburg 07.2008 - 01.2013 Nordkap 01.2013 - 11.2013 BBC Nordkap |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo - Equip. for the carriage of container |
|
IMO-number |
9210270 |
|
Call sign |
V2GC6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
2000 - 2000 Germany 2000 - 2001 Antigua & Barbuda 2001 - 2012 Gibraltar |
|
GT |
6.204 t |
|
DWT |
Summer: 8.275 m |
|
NT |
2.958 t |
|
Number of 20ft containers |
Hold 1: 33 Hold 2: 168 Hatch cover: 174 Total: 375 |
|
Length |
107,72 m overall 102,10 m between perpendiculars |
|
Breadth |
18,20 m extreme |
|
Draught |
7,80 m |
|
Depth |
10,10 m to maindeck |
|
Speed |
Services: 13,5 knots |
|
Built |
2000 |
|
Keel laid |
26.01.2000 |
|
Launch date |
19.05.2000 |
|
Date of completion |
25.08.2000 |
|
Builder |
Stocznia Gdanska Grupa Stocznia Gdynia S.A. |
|
Yard number |
8203/4 |
|
Hull material |
Steel |
|
Hull type |
Sigle hull Double bottom |
|
Watertight bulkheads |
5 |
|
Movable bulkheads |
1x Moveable bulkhead/ fully box shaped on 43,85 m length and 15,60 m breadth |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 8L2/40 - 8 cylinder diesel engine output 3.840 kW at 7 50 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 500 kVA |
|
Generators |
2x Scania DI14 main diesel generatorsets output 357 kW at 1.5 00 rpm - 375 kVA 1x Scania DI9 main diesel generatorset |
|
Emergency generator |
1x Diesel generatorset output 177 kW - 200 kVA |
|
Bow thruster |
1x 350 kW |
|
Number of holds |
2 Hold 1: 22,40 x 15,60 x 10,30 m Hold 2: 45,50 x 15,60 x 11,05 m all heights without tweendeck |
|
Cargo hold capacity |
Grain/bale: Hold 1: abt 97.044 ft³ / 2.748 m³ Hold 2: abt 257.832 ft³ / 7.031 m³ abt. 10.401 m³ - abt. 367.307 ft³ without tweendecks |
|
Floor space |
Weatherdeck: Hold 1: 267,20 m² Hold 2: 669,20 m³ Twendeck: 696,20 m² tanktop: Hold 1: 267,20 m² Hold 2: 669,20 m³ |
|
Hatch type |
Steel folding hatch covers / integrated hydraulic |
|
Max. permitted loads |
Tanktop: 20,0 t/m² Hatch cover: 1,75 t/m² Tweendeck: 2,5 t/m² |
|
Tank capacities |
Heavy fuel oil: 400 m³ Gas oil: 50 m³ Lub oil: 35 m³ Fresh water: 40 m³ Ballast: 2.536,7 m³ |
|
Anchor equipment |
Length: 522,00 m Diameter: 48 mm |
|
Cargo gear |
2x NMF hydraulic cranes located port side - SWL 38,0 t each Combinable upto 70,0 t |
|
Manager |
Krey Schiffahrts GmbH & Co. KG |
|
Registered owner |
MS "NORDKAP" Schiffahrts GmbH & Co. KG |
|
Latest data adjustment |
03 July 2017 |
