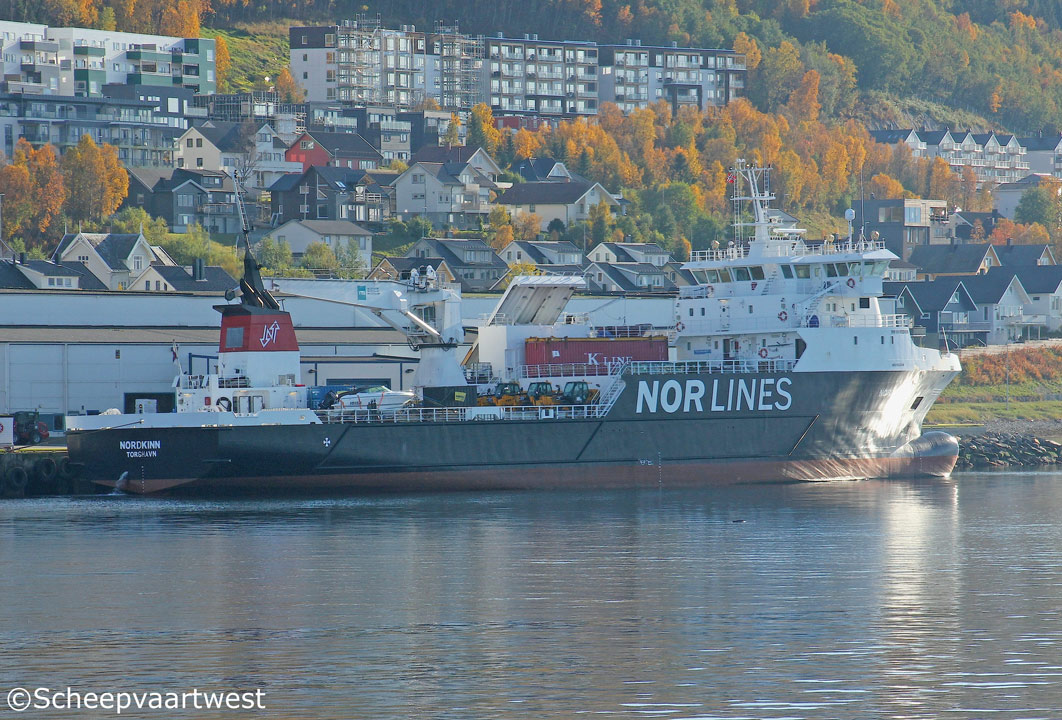

Larseng, Norway 24 September 2017 |
|
Name |
NORDKINN |
|
Previous names |
2006 - 06.2009 Storfoss |
|
Type |
Refrigerated cargo ship - Equipped for carriage of containers |
|
IMO-number |
9333644 |
|
Call sign |
OZ2080 |
|
Flag |
Faeroe Islands |
|
Port of registry |
Torshavn |
|
Previous flags |
2006 - 2009 Antigua & Barbuda, St. John’s |
|
GT |
2.990 t |
|
DWT |
Summer: 2.713 t Winter: 2.579 t |
|
NT |
1.332 t |
|
Number of 20ft containers |
28 |
|
Number of 40ft containers |
2 |
|
Reefer capacity |
30 |
|
Length |
79,99 m overall 78,15 m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
5,95 m |
|
Freeboard |
2.105 mm |
|
Depth |
6,10 m |
|
Speed |
Service; 14,5 knots Max.:16,0 knots |
|
Built |
2006 |
|
Date of completion |
09.11.2006 |
|
Builder casco |
Stocznia Marynarki Wojennej S.A. Gdynia |
|
Builder completed |
Vaagland Baatbyggeri A/S Norway |
|
Yard number |
137 |
|
Hull material |
Mild steel |
|
Main engine |
1x MAN B&W 9L27/38 - 4 stroke 9 cylinder 270 x 380 mm diesel engine 3.060 kW / 4.158 hp at 800 rpm |
|
Propellers |
1x Screw propeller controllable pitch - aft at 133 rpm |
|
Shaft generator |
1x 1.140 kVA - 912 kW |
|
Generators |
2x Main diesel generatorsets each 556 kVA - 445 kW - 637 hp |
|
Bow thruster |
1x 600 kW, forward 1x 350 kW, aft |
|
Number of holds |
4 |
|
Total capacity of holds |
6.034 m³ |
|
Deck area |
Weather deck: 800 m² Shelter deck: 390 m² / Height: 2,50 / 2,30 in door opening Main deck: 870 m² / Height: 2,35 / 2,23 in door opening Tank top: 470 m² / Height: 2,79 / 2,58 in door opening |
|
Sidedoor |
6,30 m |
|
Tank capacities |
Fuel oil: 300 m³ |
|
Cargo gear |
1x Crane - SWL 50,0 t 2x Pallet elevator - SWL 4,0 t each |
|
Crew size |
11 |
|
Manager |
Nor Lines Rederi |
|
Operator |
Norlines |
|
Registered owner |
NTS Shipping Færøerne Sp/f |
|
Latest data adjustment |
16 December 2017 |
