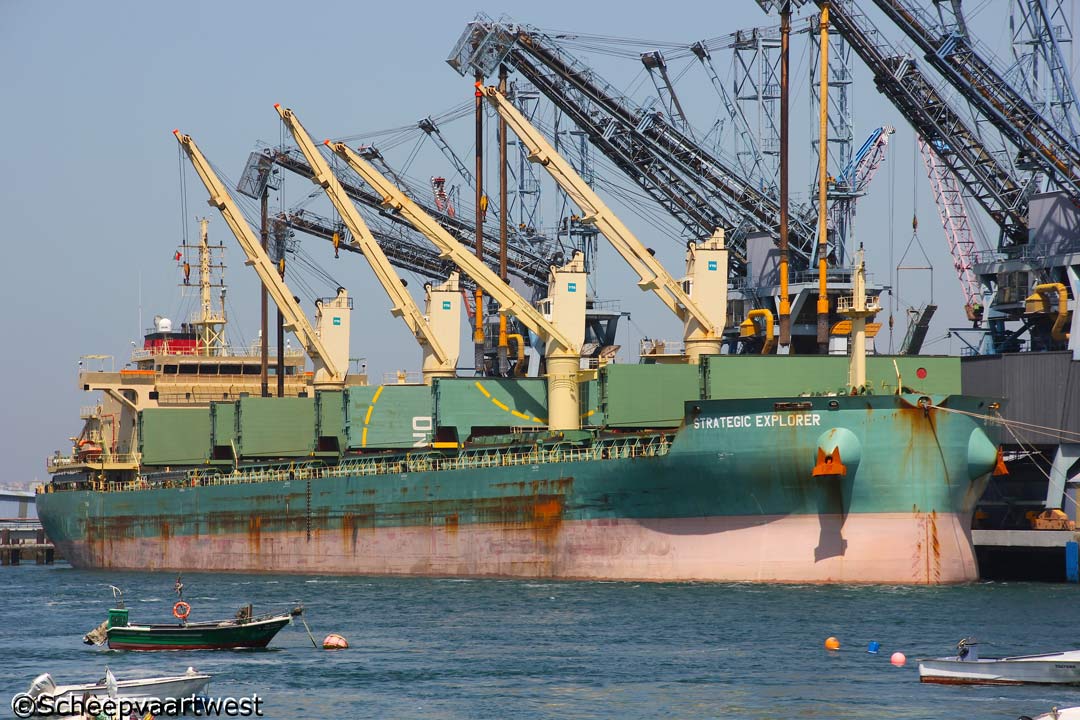

Strategic Explorer 02

Trafaria, Portugal 16 June 2017

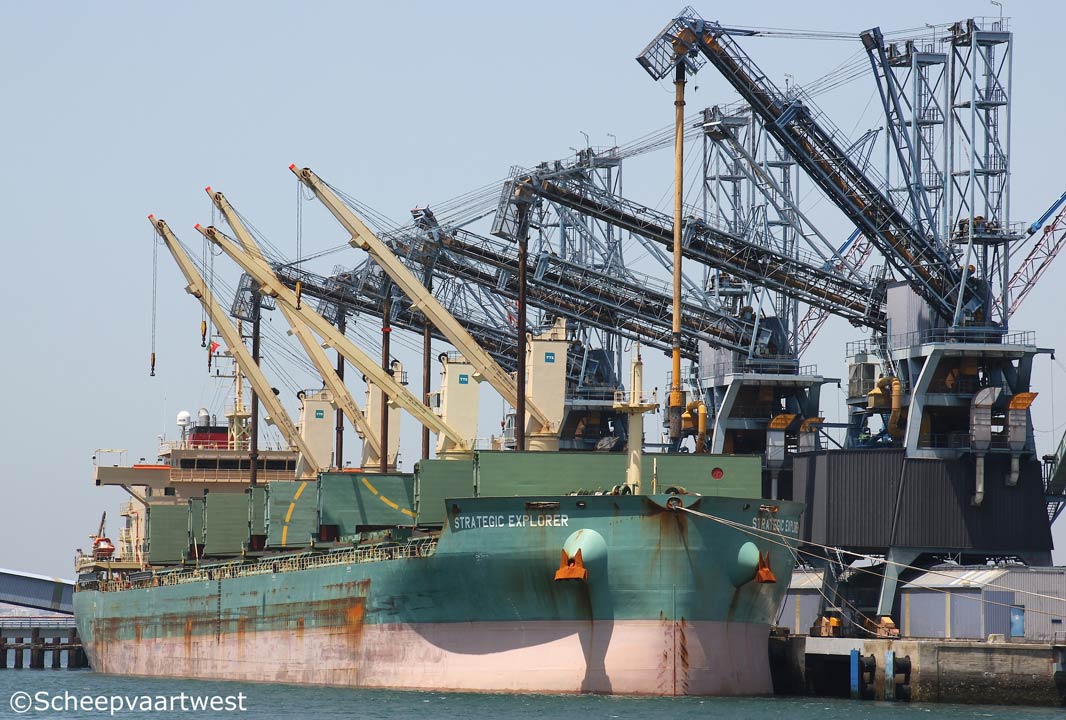

Strategic Explorer 01
Trafaria 16/06/17



Name

STRATEGIC EXPLORER

Type

Bulk carrier

IMO-number

9723708

Call sign

9V2363

Flag

Republic of Singapore

Port of registry

Singapore City

GT

24.658 t

DWT

Summer: 39.880 t

NT

13.171 t

Light ship

9.336,6 t

Length

179,99 m overall

176,65 m between perpendiculars

Breadth

30,06 m moulded

Draught

Max.: 10,50 m

Depth

15,00 m

Speed

14,0 knots

Built

2014

Date of completion

01.05.2014

Builder

Xingang Shipbuilding Heavy Industry
Tianjin
China

Yard number

NB0087

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W-Yichang Marine 5S50ME-B9.2 - 2 stroke 5 cylinder 500 x 2.214 mm diesel engine 6.050 kW at 99,0 rpm

Manufacturer: Yichang Marine Diesel Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Co., Ltd.

Boilers

1x Fired exhaust gas boiler - 9,5 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 680 kW

Manufacturer: HHI electro Electric System

Emergency generator

1x Diesel generatorset 120 kW

Number of cargo holds

5

Cargo hold capacity

Grain:

Hold 1: 309.995 ft³

Hold 2: 395.775 ft³

Hold 3: 368.935 ft³

Hold 4: 195,775 ft³

Hold 5: 340.754 ft³

Total: 1.811.234 ft³ / 51.392,3 m³

Number of hatches

5

Hatch 1: 16,80 x 20,80 m

Hatch 2-3-4-5: 19,20 x 20,80 m

Hatches type

Folding hatchcovers

Number of tanks

Fuel oil: 12

Ballast: 12

Lubricating oil: 9

Fresh water: 6

Waste water: 5

Diesel oil: 4

Chain: 2

Sludge: 2

Sea water: 1

Tank capacities 100%

Diesel Oil: 157,8 m³ / 134,13 t

Freshwater: 220,2 m³

Lube Oil: 172 m³ / 154,99 t

Tank Ballast: 14.783,6 m³ / 15.153,19 t

Lifting equipment

1x Electric engine room crane - SWL 4,0 t

Manufacture: Jiangyin Huasheng Marine Machine Co., Ltd.

1x Electric slewing crane - SWL 3,0 t

Manufacture: Zhenjiang Just MArine Equipment Co., Ltd.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Outreach 11,00 m
Manufacture: TTS Bohai Machinery Dalian Co., Ltd.

Manager

MTM Ship Management Pte Ltd.
78 Shenton Way, #29-02
Singapore 079120
Republic of Singapore

Operator

Strategic Shipping

Owner

SBC Explorer Pte Ltd.

Latest data adjustment

25 July 2017
