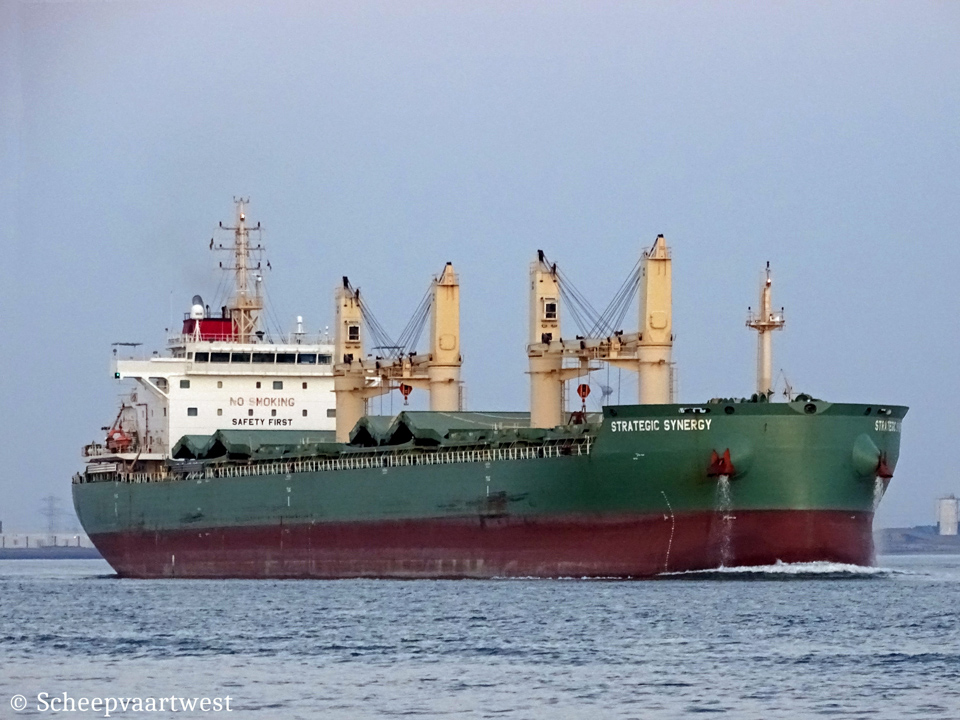

Strategic Synergy 01

Westerschelde 23 September 2017

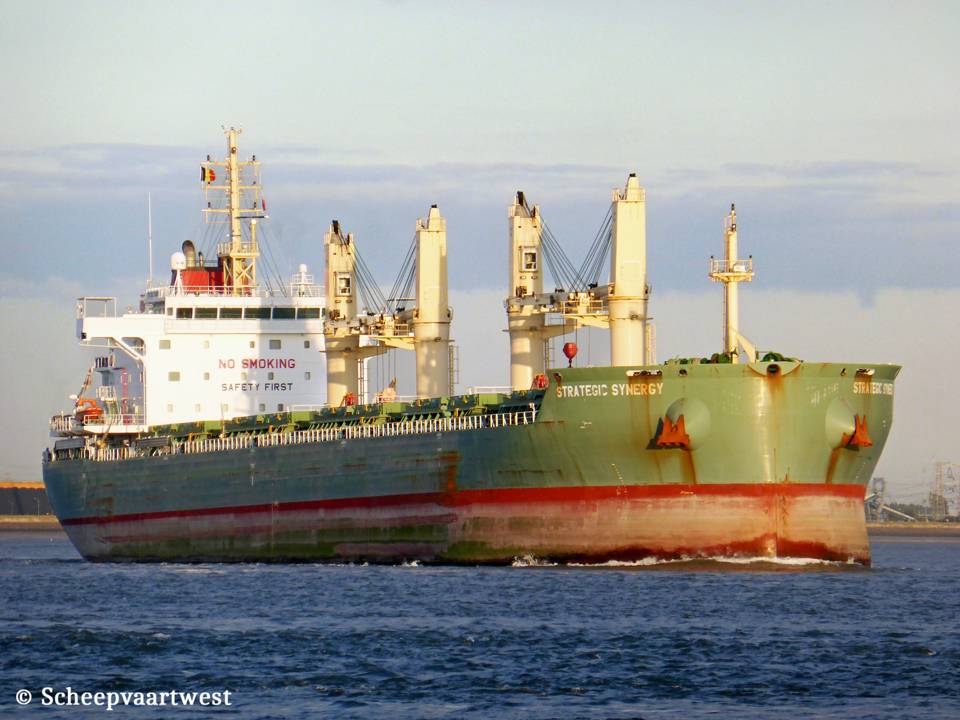

Strategic Synergy IMO 9648087 02
Westerschelde 26/09/15


Name

STRATEGIC SYNERGY

Type

Bulk carrier - Carriage of Dangerous goods

IMO-number

9648087

Call sign

9VAG4

Flag

Republic of Singapore

Port of registry

Singapore

GT

24.641 t registered

Suez: 25.386,82 t

DWT

39.893,4 t

NT

13.203 t registered

Panama: 20.509 t

Suez: 23.691,54 t

Displacement

49.216,4 t

Length

179,99 m overall

176,65 m between perpendiculars

Breadth

30,00 m moulded

Draught

Max: 10,50 m

Freeboard

4.541 mm

Depth

15,00 m moulded

Speed

14,0 knots

Built

2014

Keel laid

16/09/2013

Launch date

01/12/2013

Delivery date

23/04/2014

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd.

No. 2999 Huanghe Street, Harbor Economic Area Binhai New Area

Tianjin

China

Yard number

NB008-2

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W/Yichang Marine 5S50ME-B9.2 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.225 hp at 99,0 rpm

Manufacturer: Yichang Marine Diesel Engine Plant Co., Ltd. (B&W), Yichang - China

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Co., Ltd.

Boilers

1x Fired exhaust gas boiler - 9,5 MPa

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 680 kW

Manufacturer: HHI Electro Electric System

Number of holds

5

Cargo hold capacity

Hold 1: 309.995 ft³

Hold 2: 395.775 ft³

Hold 3: 368.935 ft³

Hold 4: 395.775 ft³

Hold 5: 340.754 ft³

Total: 1.811.234 ft³ / 51.393,3 m³

Number of hatches

5

Hatch 1: 16,80 x 20,80 m

Hatches 2,3,4,5: 19,20 x 20,80 m

Tank capacities

Fuel oil: 1.535,30 m³

Ballast: 25.258,20 m³

Fresh water: 220,20 m³

Diesel oil: 157,80 m³

Lub oil: 171,60 m³

Cargo gear

4x cranes - SWL 30,0 t each

4x Grabs 12 m³ each

Manufacturer: TTS Bohai Machinery Dalian Co., Ltd.

Lifting equipment

1x Electric engine room crane - SWL 4,0 t

Manufacturer: Jiangyin Huasheng Marine Machine Co., Ltd.

1x Electric slewing crane - SWL 3,0 t

Manufacturer: Zhenjiang Just Marine Equipment Co., Ltd.

Crew size

27

Manager

MTM Ship Management Pte Ltd.

Operator

Strategic Bulk Carriers Inc.

Registered owner

SSIBC N1 S.A.

Group

Maritime Management Group

Republic of Singapore

Latest data adjustment

24 January 2024
