Antwerpen 27 July 2017 |
|
Name |

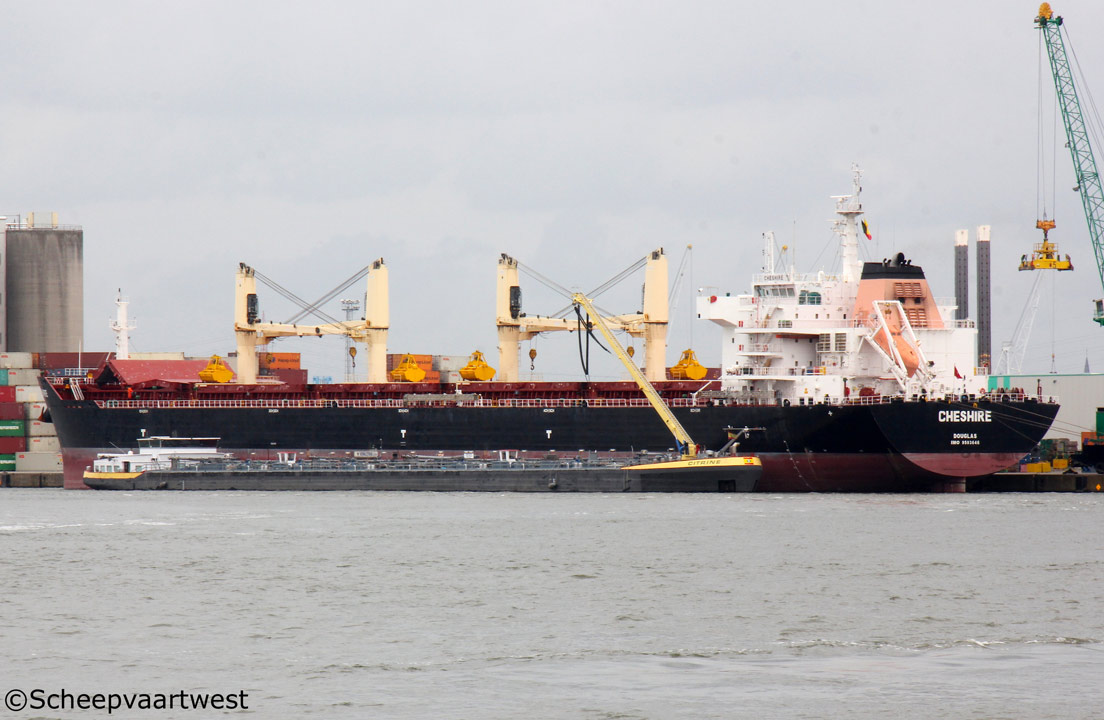

CHESHIRE |
|
Type |
Bulk carrier |
|
IMO-number |
9593646 |
|
Call sign |
2FEQ6 |
|
Flag |
Isle Of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
33.042 t Panama: 27.412 t Suez: 33.802,51 t |
|
DWT |
Summer: 56.597,8 t Winter: 55.027,2 t |
|
NT |
19.132 t Panama: 27.412 t Suez: 30.554,27 t |
|
Light ships |
11.083,31 t |
|
Displacement |
Summer: 67.981,1 t Winter: 66.110,5 t |
|
Length |
189,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,80 m Winter: 12,53 m |
|
Air draft |
46,75 m from keel |
|
Freeboard |
Summer: 5.224 mm Winter: 5.491 mm |
|
Depth |
18,00 m moulded |
|
Speed |
14,2 knots laden |
|
Built |
2012 |
|
Keel laid |
08.06.2011 |
|
Date of completion |
03.2012 |
|
Builder |
Jiangsu Jinling Shipyard |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Doosan 6S50MC-C - 6 cylinder diesel engine: MCR 9.480 kW at 127,0 rpm CSR 8.532 kW at 122,6 rpm |
|
Propellers |
1x Fixed right handed propeller |
|
Generators |
3x Main diesel generatorsets each 600 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain & bale: Hold 1: 13.009,86 m³ / 459.438,90 ft³ Hold 2: 15.333,25 m³ / 541.488,60 ft³ Hold 3: 14.553,08 m³ / 513.937,20 ft³ Hold 4: 15.333,27 m³ / 541.489,30 ft³ Hold 5: 13.404,64 m³ / 473,380,40 ft³ Total: 71.634,10 m³ / 2.529.734,40 ft³ |
|
Max. load on inner bottom |
Hold 1,3&5: 25,0 t/m² Hold 2&4: 20,0 t/m² |
|
Tank capacities |
Ballast tanks: 16/333 m³ + Hold 3: 14.553 m³ Fresh water: 433,59 t IFO: 1.971,48 t MDO: 263,44 t |
|
Cargo gear |
4x Cranes MacGregor GLB3028-2/2428gr - SWL 30,0 t 4x Peiner grabs MZGL 1200-6-B - WSL - 8 m³ each |
|
Crew size |
27 |
|
Previous managers |
Bibby Ship Management (Singapore) Pte. Ltd. |
|
Owner |
Bibby Transport Limited |
|
Latest data adjustment |
21 August 2017 |
