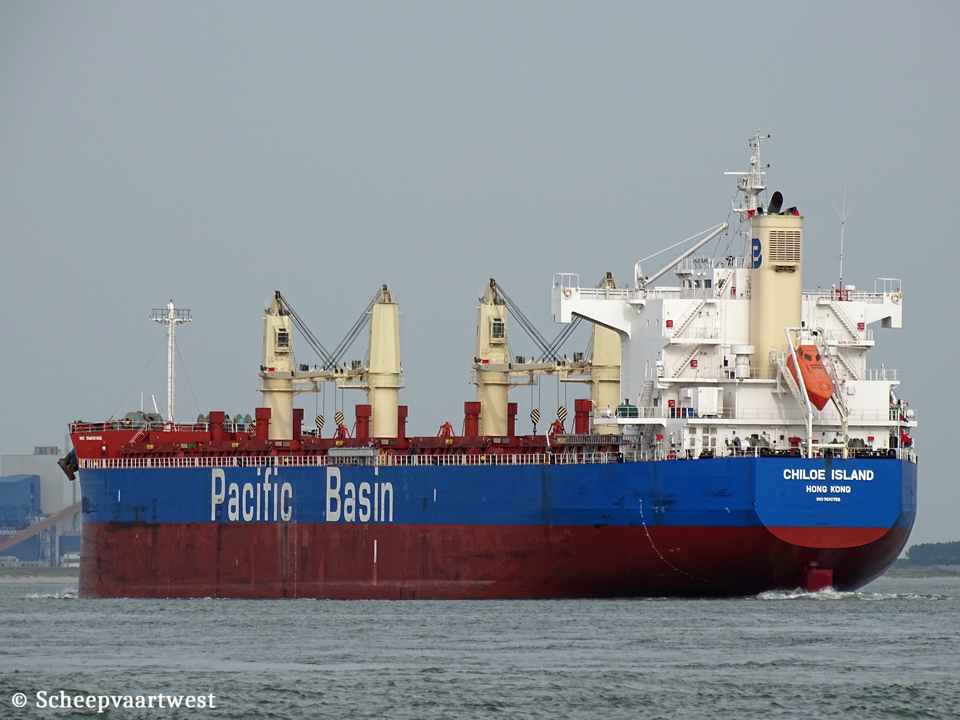

| Westerschelde 10 June 2016 |
|
Name |
CHILOE ISLAND |
|
Type |
Dry bulk carrier - Supramax |
|
IMO-number |
9610755 |
|
Call sign |
VRMO4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
32.377 t Suez: 33.156,27 t |
|
DWT |
58.044 t |
|
NT |
19.458 t Suez: 30.784,29 t Panama: 26.835 t |
|
Displacement |
67.802 t |
|
Length |
189,99 m overall 185,60 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,83 m |
|
Freeboard |
5.226 mm |
|
Depth |
18,00 m moulded |
|
Speed |
Max: 15,6 knots |
|
Built |
2013 |
|
Keel laid |
31/12/2011 |
|
Delivery date |
15/10/2013 |
|
Builder |
Tsuneishi Zhoushan Shipbuilding Inc. Retiao Villiage, Xiushan Island Daishan County, Zhoushan City, 316261 China |
|
Yard number |
SS-128 |
|
Hull material |
Steel |
|
Movable bulkheads |
Water tight: 2 Oil tight: 4 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MC-C - 6 cylinder combustion engine Mcr 8.400 kW at 113,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Fired exhaust gas boiler - 8,82 MPa Manufacturer: Osaka Boiler Mfg. Co.,Ltd. |
|
Generators |
3x Main diesel generatorsets each 560 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 70.122 m³ Grain: 72.689 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Diesel oil: 164,20 m³ Lub oil: 109,80 m³ Fresh water: 313,60 m³ Fuel opil: 2.250,90 m³ Ballast: 42.116,30 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew |
32 |
|
Manager |
Pacific Basin Shipping (HK) Limited 31/F, One Island South, 2 Heung Yip Road, Wong Chuk Hang Hong Kong - China |
|
Registered owner |
Chiloe Shipping Ltd. |
|
Latest data adjustment |
01 december 2023 |
