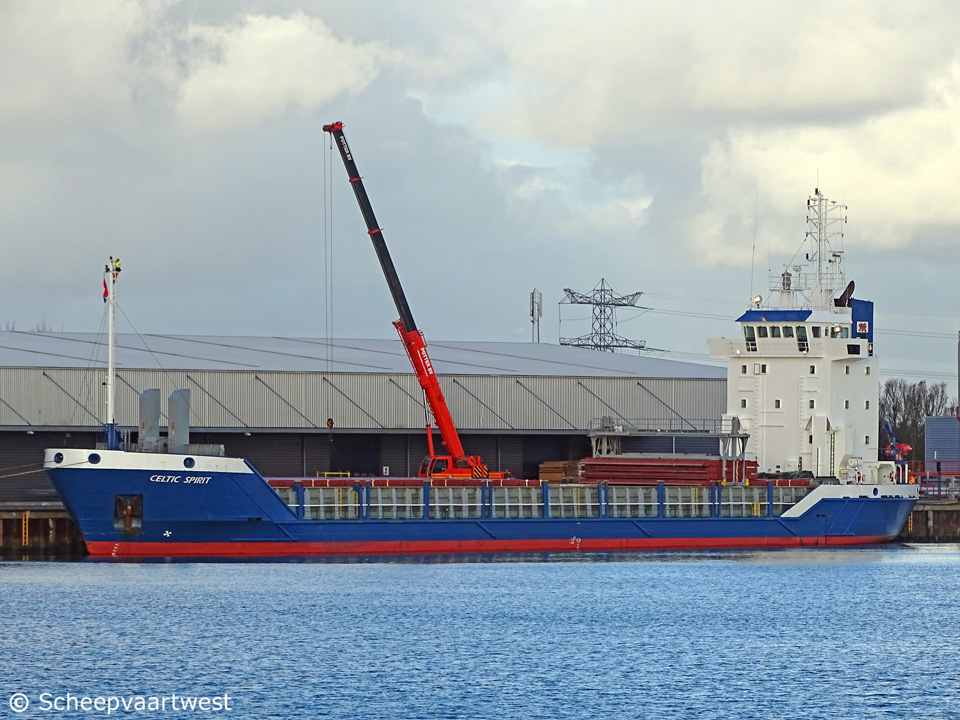

Vlissingen 28 November 2017 |
|
Name |
CELTIC SPIRIT |
|
Previous names |
Build as: 1996 Viator 07.1996 - 11.1996 Geestborg 11.1996 - 03.2014 Miramar 03.2014 - 03.2014 Celtic Spirit 02.2014 - 03.2014 Miramar |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9136204 |
|
Call sign |
2HHQ4 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
Gibraltar |
|
GT |
2.840 t |
|
DWT |
Summer: 4.135 t |
|
DWCC |
Summer: 3.900 t Winter: 3.800 t |
|
NT |
1.538 t |
|
Displacement |
5.476 t |
|
Number of 20ft containers |
On deck: 150 In hold: 111 Total: 261 |
|
Container capacity 14t |
211 |
|
Reefer capacity |
10 on deck |
|
Length |
89,72 m overall 84,98 m between perpendiculars |
|
Breadth |
13,60 m extreme |
|
Draught |
Summer: 5,72 m Winter: 5,60 m 4,60 m in ballast |
|
Air draft |
27,90 m in ballast |
|
Forecastle |
8,74 m |
|
Quarterdeck |
15,04 m |
|
Depth |
7,20 m |
|
Speed |
12,0 knots Service: 10,2 knots |
|
Built |
1996 |
|
Keel laid |
12.12.1994 |
|
Launch date |
16.03.1996 |
|
Date of completion |
13.04.1996 |
|
Builder |
Bodewes Scheepswerf "Volharding" Foxhol B.V. |
|
Yard number |
323 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Movable bulkheads |
2x Traversable bulkheads can be placed in 5 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6 M 453 C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.200 kW at 600 rpm Year of manufacture: 1995 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm |
|
Electric installations |
2x Plant 380/220 V - 270 kVA 1x Plant 380 V - 365 kVA 1x Plant 380 V - 110 kVA |
|
Shaft generator |
1x 365 kVA / 292 kW at 1.500 rpm |
|
Generators |
2x Scania DSI 11 main diesel generatorsets each 270 kVA at 1.500 rpm |
|
Emergency generator |
1x Sisu Diesel 620 DSG diesel generatorset 110 kVA at 1.500 rpm |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster fixed JASTRAM propeller - 200 kW, forward |
|
Number of holds |
1x One boxhold narrowing fore & aft 62,88 x 11,00 x 8,35 m, boxshaped |
|
Number of hatches |
1 62.88 x 11.00 m |
|
Hatch cover type |
Pontoons moved by ship-owned Gantry-cranes |
|
Hold ventilation |
12 air changes per hour |
|
Strength |
On deck: 1,6 t/m² On tanktop: 15,0 t/m² |
|
Cargo capacity |
Grain & bales: 5.597 m³ /198.000 ft³ |
|
Tank capacities |
Water ballast: 1.559,5 m³ Fresh water: 68,9 m³ Fuel oil: 331 m³ / 314,5 t Diesel oil: 56,5 m³ / 48 t Lub oil: 16,6 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Length: 440,00 m Diameter: 36 mm |
|
Lifting equipment |
1x Gantry crane |
|
Cargo gear |
Gearless |
|
Accommodation |
10 persons 9 cabins |
|
Manager |
Charles M Willie & Co. (Shipping) Ltd. |
|
Registered owner |
Charles M Willie & Co. (Chartering) Ltd. |
|
Latest data adjustment |
31 December 2017 |
