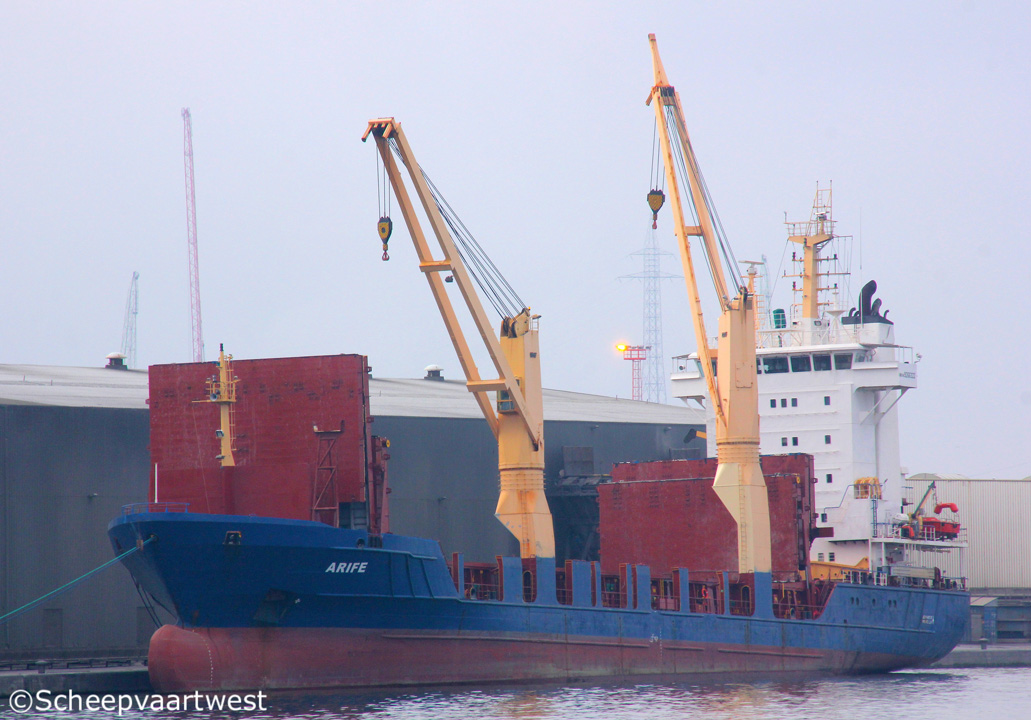

Arife 01

Antwerpen 26 January 2018



Name

ARIFE

Previous names

2002 Launch as: Knock

2002 - 2015 BBC Scotland

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9266322

Previous classification

GL

Call sign

H8XS

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

2002 - 2015 Gibraltar, Gibraltar - Call sign: ZDFF3

2015 - 2017 Antigua & Barbuda, St. John’s

GT

4.090 t registered

DWT

Summer: 4.713 t

NT

2.016 t registered

Number of 20ft containers

In hold: 127

On deck: 263

Total: 390

Number of 40ft containers

In hold: 56 and 4 TEU

On deck: 122 and 14 TEU

Total: 178 and 18 TEU

Container capacity 14t

220

Reefer capacity

30 on deck

Length

100,60 m overall

Breadth

16,60 m moulded

Draught

Summer: 6,41 m

Winter: 6,30 m

Moulded L x B x D

94,00 x 16,60 x 8,10 m

Registered L x B x D

94,15 x 16,60 x 8,10 m

Air draft

31,60 m

Forecastle

8,80 m

Poop

17,75 m

Freeboard

Summer: 1.709 mm

Depth

8,10 m moulded

Speed

15,0 knots

Built

2002

Keel laid

29/06/1998

Launch date

23/04/2002

Date of completion

06/08/2002

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd.
Tanggu
China

Yard number

SB329

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN B&W 9L32/40 4 - stroke single acting 9 cylinder 320 x 400 mm diesel engine 3.960 kW at 750 rpmManufacturer: MAN B&W Diesel GmbH

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 410 mm

Propellers

1x Controllable pitch propeller - aft at 180 rpm

Boilers

1x Thermal oil heater, oil fired - 10, bar

Heating surface: 34,7 m²

Manufacturer: Apparate- und Kesselbau AKB GmbH

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 131,0 m²

Manufacturer: Alfa Laval Aalborg A/S Division Heaters

Shaft generator

1x 800 kW

Generators

2x MAN D2842 LE diesel generatorsets each 399 kW

Emergency generator

1x MAN diesel generatorset 282 kW

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 50 litres - 20,0 bar

Bow thruster

1x SCHOTTEL fixed pitch propeller 350 kW

Number of holds

1

57,85 x 13,40 m x 8,92 m, boxshaped

Tweendecks: 1x 57,80 x 13,40 m

Cargo hold capacity

Grain: 6.836 m³

Bale: 6.801 m³

Hold ventilation

20x Air-changes per hour

Hatches

1

57,85 x 13,40 m (775,19 m²)

Hatch cover type

Kvaerner folding type / 8 segments

Tank capacities

Fuel oil IFO: 490,50 m³

MDO: 140,90 m³

Fresh water: 84,90 m³

Ballast: 1.801 m³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Cargo gear

2x NMF cranes - SWL: 80 t each situated portside
Combinable: 160 t

Crew size

15

Manager

Gemiciler Denizcilik Nakliyat Spor Yapi Tesisleri Sanayi Ve Tic. Ltd. Sti.

Koşuyolu Mah. Mahmut Yesari Cad.

73 Kadıköy

Istanbul

Turkey

Registered owner

Melody Shipping S.A.

Latest data adjustment

19 February 2018
