Antwerpen 30 January 2018 |
 |
 |
 |
 |
|||
| Antwerpen 30/01/18 | Antwerpen 30/01/18 | Antwerpen 30/01/18 | Antwerpen 26/01/18 |
|
Name |

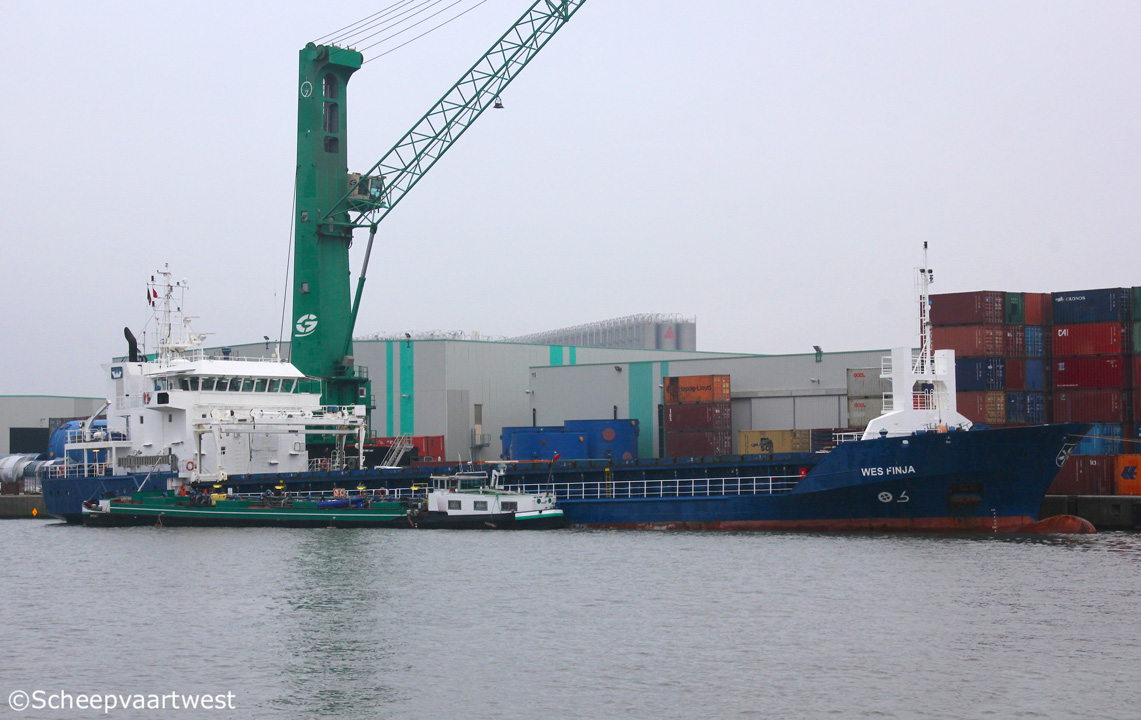

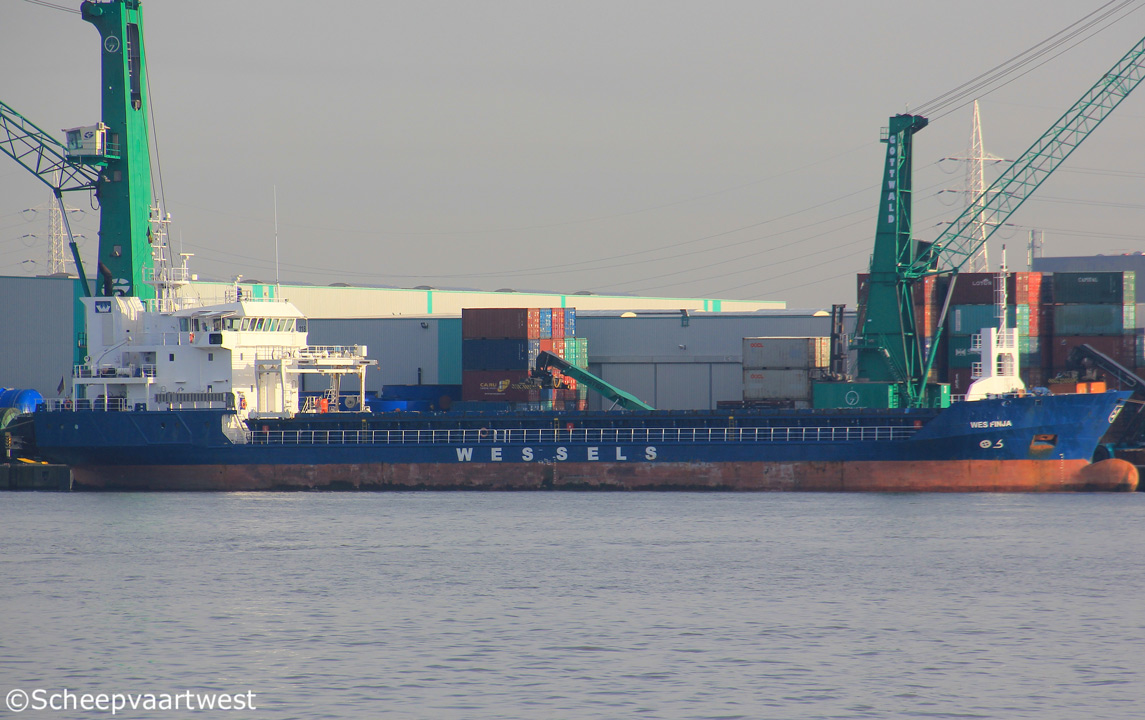

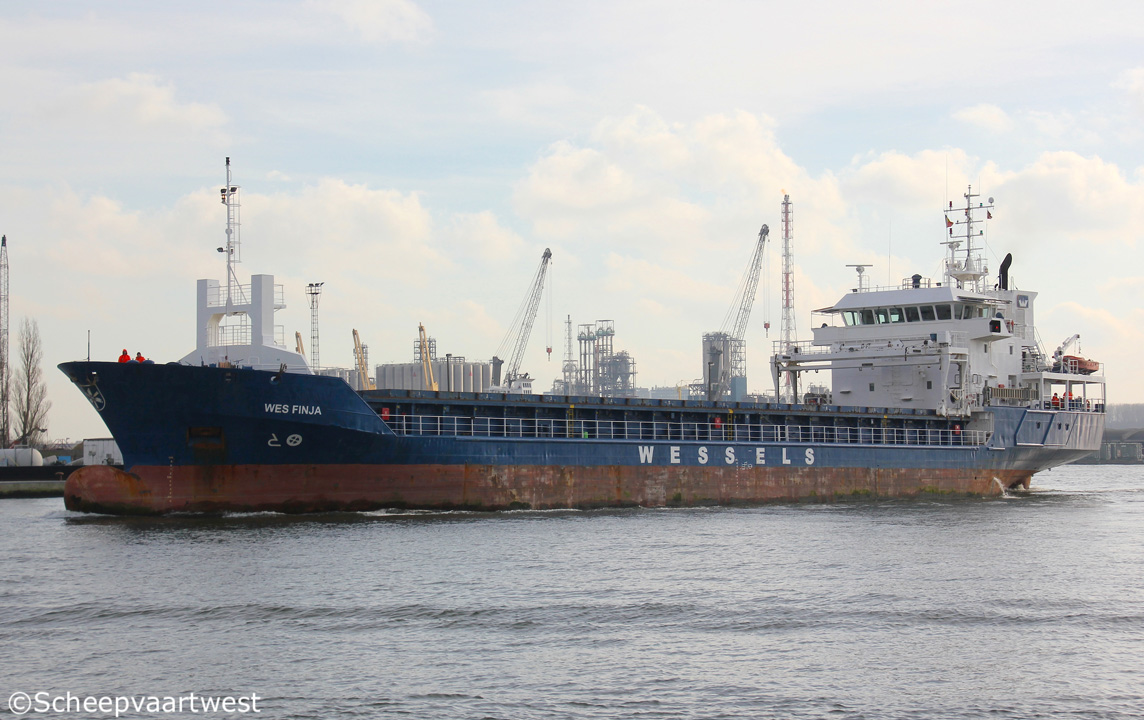

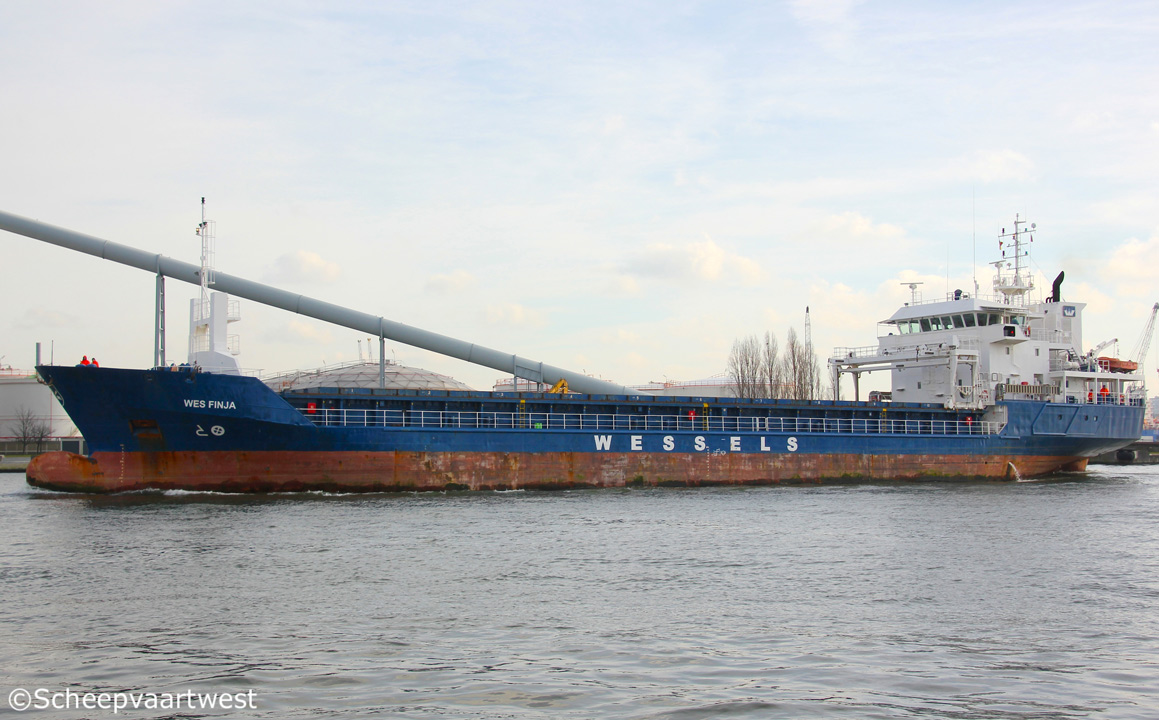

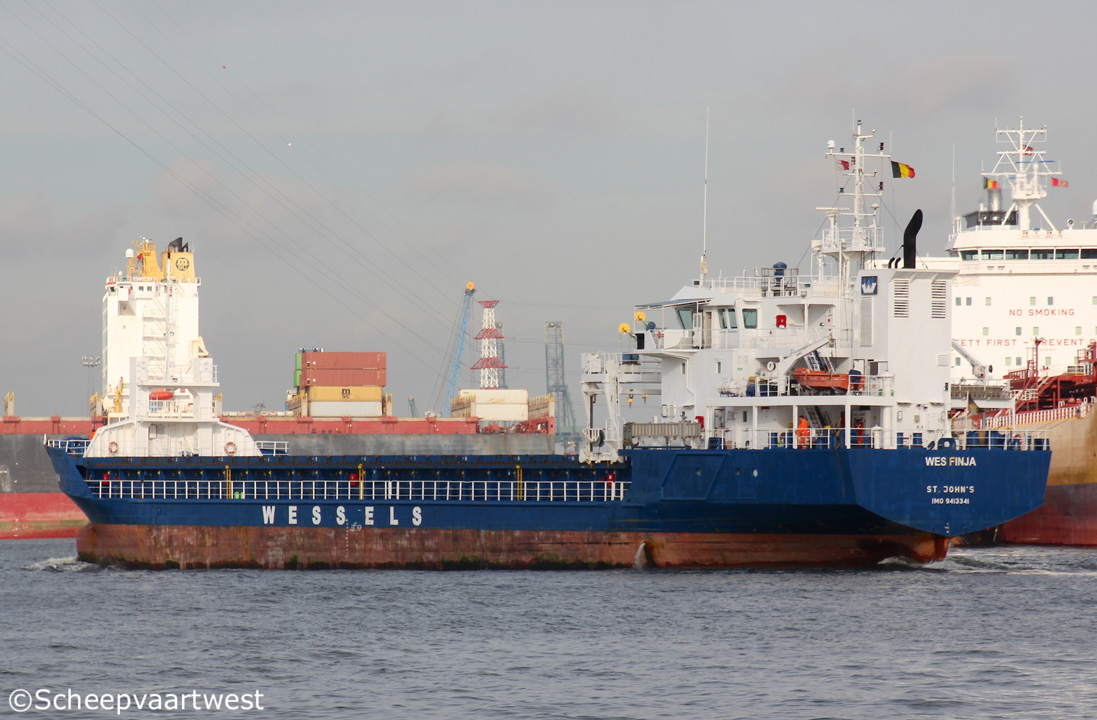

WES FINJA |
|
Previous names |
2007 - 12/2014 Paganini |
|
Type |
Boxshaped seagoing multi-purpose ship - Strengthened for heavy cargo |
|
IMO-number |
9413341 |
|
Call sign |
V2CL8 |
|
Flag |
Antigua & barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.971 t |
|
DWT |
Summer: 4.251,8 t |
|
NT |
1.503 t |
|
Number of 20ft containers |
325 |
|
Length |
89,88 m overall 84,80 m between perpendiculars |
|
Breadth |
15,40 m extreme 15,20 m moulded |
|
Draught |
5,64 m |
|
Depth |
7,10 m |
|
Speed |
12,5 knots |
|
Built |
2007 |
|
Keel laid |
25/06/1998 |
|
Launch date |
17/04/2007 |
|
Date of completion |
14/08/2007 |
|
Builder |
Rousse Shipyard A.D. |
|
Yard number |
205 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mak 8M25 - 4 stroke 8 cylinder diesel engine 2.400 kW Manufacturer: Caterpillar Motoren GmbH & Co., KG, Kiel - Germany |
|
Propellers |
1x controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 440 kW |
|
Generators |
2x MAN D2866LXE30 main diesel generatorset each 216 kW |
|
Emergency generator |
1x MAN D0824LE201 diesel generatorset 70 kW |
|
Bow thruster |
1x 220 kW |
|
Number of holds |
1 152,65 x 12,80 m |
|
Hold capacity |
Grain: 5.567 m³ |
|
Hold ventilation |
6 times |
|
Number of hatches |
2x Steel bulkheads hatch covers are pontoon type consisting of 10 panels operated by gantry crane |
|
Max permitted loads |
Tanktop: 12,0 t/m² |
|
Tank capacities |
IFO: 200 m³ MDO: 30 m³ Water ballast: 1.810 m³ |
|
Anchor equipment |
Length: 440,00 m |
|
Lifting equipment |
Diameter: 36 mm |
|
Manager |
Wessels Reederei GmbH & Co. KG. |
|
Registered owner |
MS “WES FINJA” Schiffahrts GmbH & Co. KG |
|
Previous names & owners |
2007 - 12/2014 Paganini - Paganini Ryn Shipping GmbH |
|
Latest data adjustment |
20 February 2018 |
