Antwerpen 19 April 2018 |
|
Name |

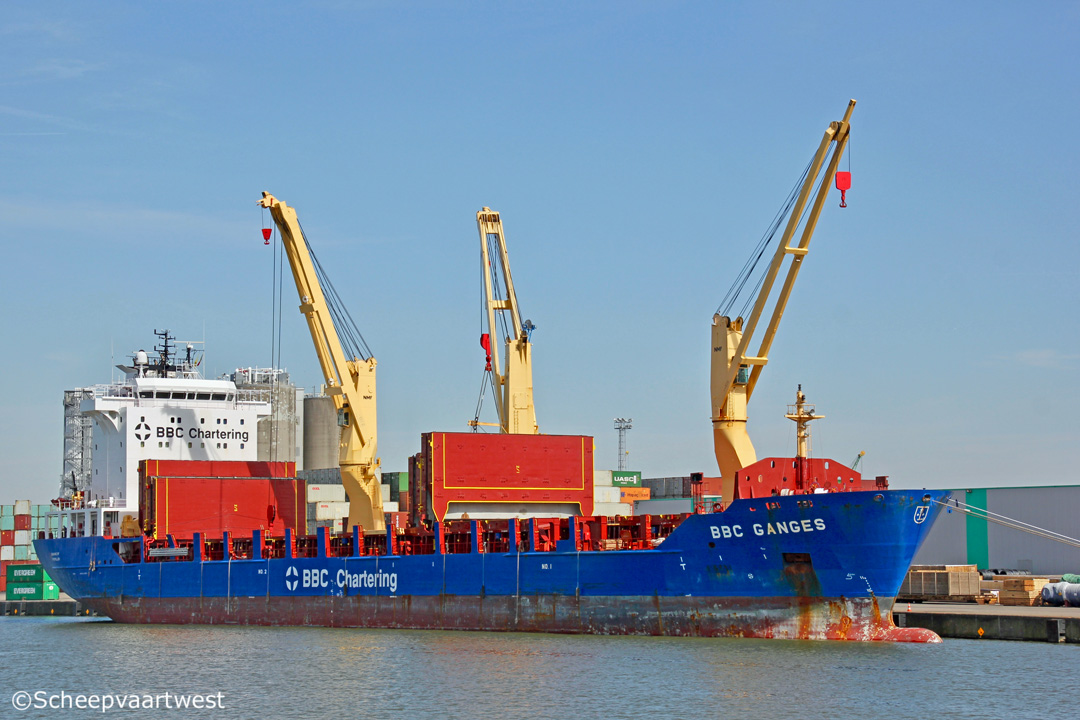

BBC GANGES |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9508304 |
|
Call sign |
V2ER7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
12.974 t |
|
DWT |
Summer: 16.943 t |
|
NT |
5.334 t |
|
Number of 20ft containers |
In hold: 408 |
|
Number of 40ft containers |
In hold: 193 + 22 TEU On deck: 225 + 100 TEU Total: 418 + 122 TEU |
|
Container capacity 14t |
617 |
|
Reefer plug |
60 reefer plugs on deck |
|
Length |
143,13 m overall 134,43 m between perpendiculars |
|
Breadth |
23,13 m extreme 22,81 m moulded |
|
Draught |
Max: 9,70 m |
|
Height above keel |
41,40 m |
|
Depth |
13,30 to main deck |
|
Speed |
Max: 15,0 knots |
|
Built |
2010 |
|
Keel laid |
26/11/2008 |
|
Launch date |
15/12/2009 |
|
Date of completion |
19/04/2010 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB355-11 |
|
Hull material |
hipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 6S46 MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.074 kW at 129,0 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 129 rpm 4 blades |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 8,0 bar Heating surface: 24,0 m² Manufacturer: TPK Nova d.o.o. |
|
Generators |
3x Yanmar 6EY18AL-EV main diesel generatorsets each 660 kW |
|
Emergency generator |
1x MAN D0824 LE201 diesel generatorset 100 kW |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW |
|
Number of holds |
2 Hold 1: 34,30 x 18,60/13,21 x 12,10 m |
|
Cargo hold capacity |
19.777 m³ / 698.429 ft³ |
|
Hold ventilation |
Hold 1: 15 times / h |
|
Number of hatches |
2 |
|
Hatches type |
2x Hatches are fitted with hydraulic operated folding hatch covers (can be |
|
Floor space under deck |
2.986 m² / 32.141 ft² |
|
Floor space on deck |
1.486 m² / 16.002 ft² |
|
Max permitted loads |
Tanktop: 20,00 t/m² Tweendeck: 4,70 t/m² Hatchcovers: 2,20 t/m² |
|
Tank capacities |
IFO: 1.458 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
3x NMF cranes situated portside SWL: 2x 250 t + 1x 80 t Capacity each 500 t capacity combined |
|
Crew size |
20 |
|
Manager |
Briese Schiffahrt GmbH & Co. KG |
|
Operator |
BBC Chartering GmbH |
|
Latest data adjustment |
03 May 2018 |
