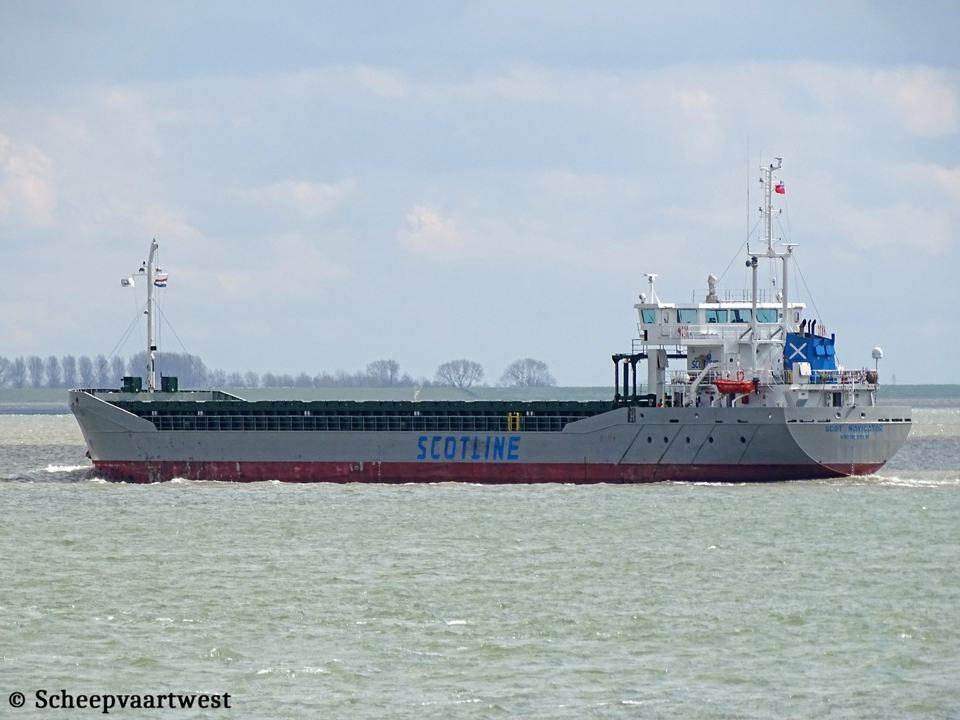

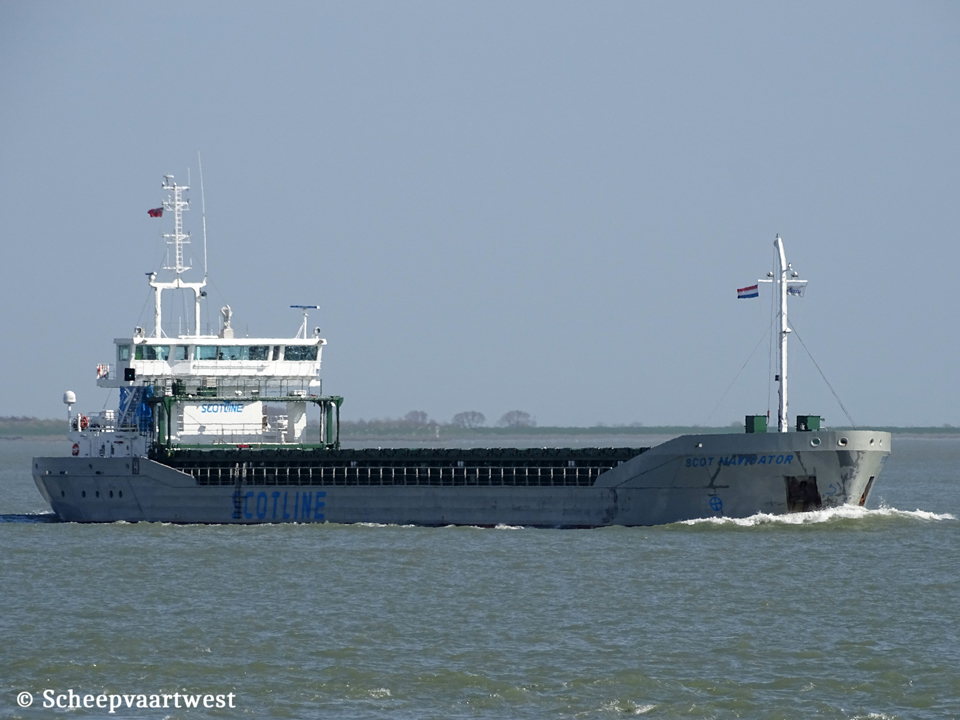

Westerschelde 17 April 2018 |
 |
 |
|

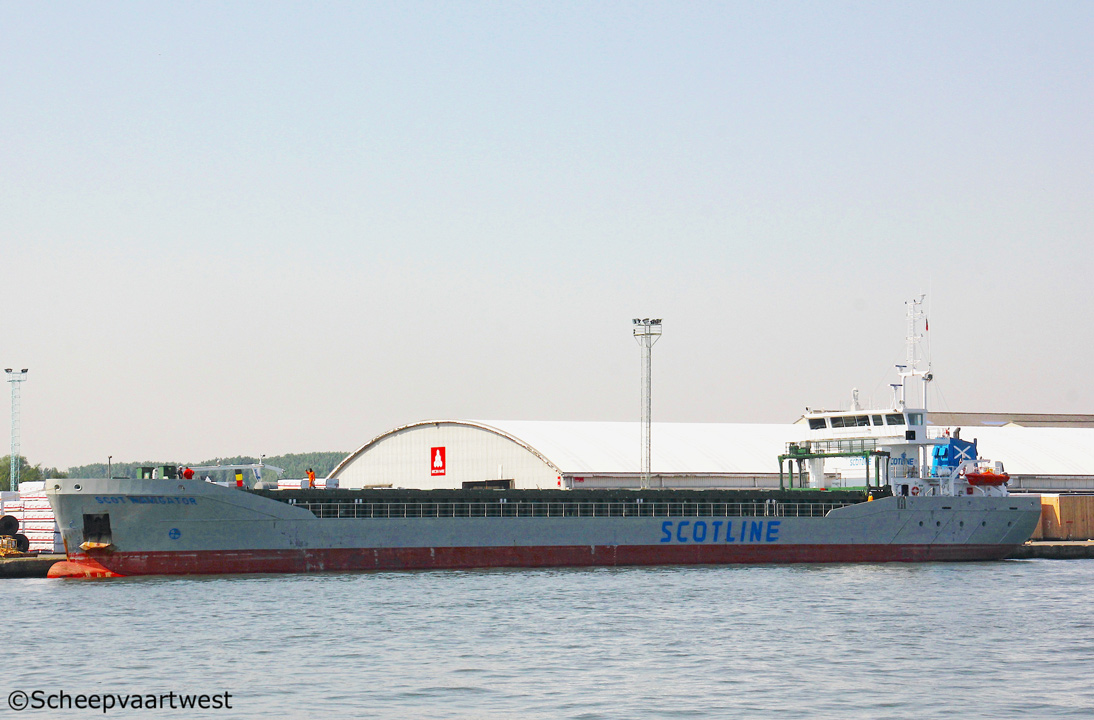

| Westerschelde 03/04/19 | Antwerpen 15/05/18 | |
|
Name |
SCOT NAVIGATOR |
|
Type |
General cargo ship - Box-shaped singledecker Eco Freighter 3700 |
|
IMO-number |
9820348 |
|
Call sign |
MBES8 |
|
Flag |
United Kingdom |
|
Port of registry |
Rochester |
|
GT |
2.571 t |
|
DWT |
3.732 t |
|
DWCC |
3.550 t |
|
NT |
1.216 t |
|
Displacement |
1.146 t |
|
Number of 20ft containers |
On deck: 16 |
|
Number of 40ft containers |
On deck 8 |
|
Length |
88,00 m overall 84,98 m between perpendiculars |
|
Breadth |
13,39 m extreme |
|
Draught |
Summer: 4,91 m |
|
Air draft |
27,80 m in ballast 19,50 m mast down |
|
Depth |
7,05 m moulded |
|
Speed |
10,0 knots |
|
Built |
2017 |
|
Keel laid |
16/12/2015 |
|
Launch date |
22/02/2017 |
|
Date of completion |
20/06/2017 |
|
Builder |
GS Yard Waterhuizen The Netherlands |
|
Yard number |
GS 169 |
|
Hull material |
Steel |
|
Number of decks |
1 |
|
Movable bulkheads |
2 |
|
Main engine |
1x Caterpillar 3508C - 4 stroke combustion engine 746 kW / 1014 hp at 1.600 rpm |
|
Gearbox |
1x Reintjes type WAF 572 L - Reduction: 7,474:1 |
|
Propellers |
1x Fixed pitch propeller 4 blades, diameter 2.310 mm |
|
Bow thruster |
1x Veth-Jet, type 4-K-1000V - 265 kW at 1.800 rpm |
|
Number of holds |
1 62,30 x 10,80 x 7,73 m |
|
Hold capacity |
Bale: 5.000 m³ Grain: 5.154 m³ |
|
Number of hatches |
1 62,30 x 10,80 m |
|
Timber fitted capacity |
5.300 |
|
ISM & commercial manager |
Intrada Ships Management Ltd. Unit 36, Medway Quay, Riverside Estate Sir Thomas Longley Road,Medway City Estate Rochester Kent, ME2 4DP United Kingdom |
|
Operator |
Scotline Ltd. 75 Main Road Gidea Park - Romford Essex, RM2 5EL United Kingdom |
|
Registered owner |
Scot Navigator Shipping Ltd. Care of Intrada Ships Management Ltd , Unit 36, Medway Quay, Riverside Estate, Sir Thomas Longley Road, Medway City Estate Rochester, Kent, ME2 4DP United Kingdom |
|
Latest data adjustment |
16 November 2022 |
