Westerschelde 04 July 2016 |
 |
 |
|
| Westerschelde 06/08/13 | Westerschelde 27/06/17 | |
|
Name |

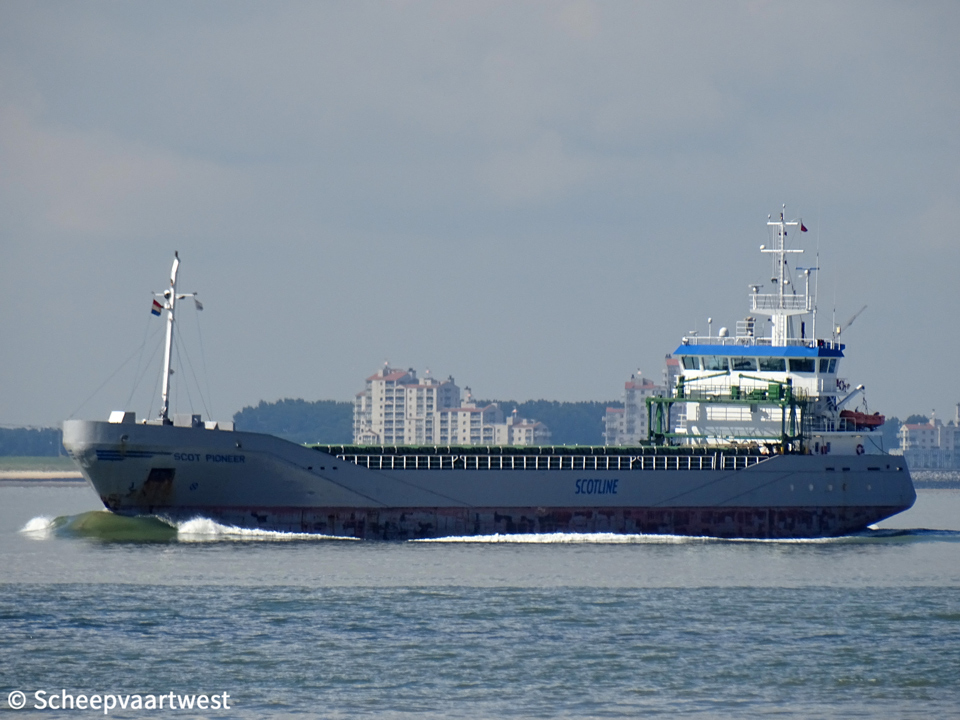

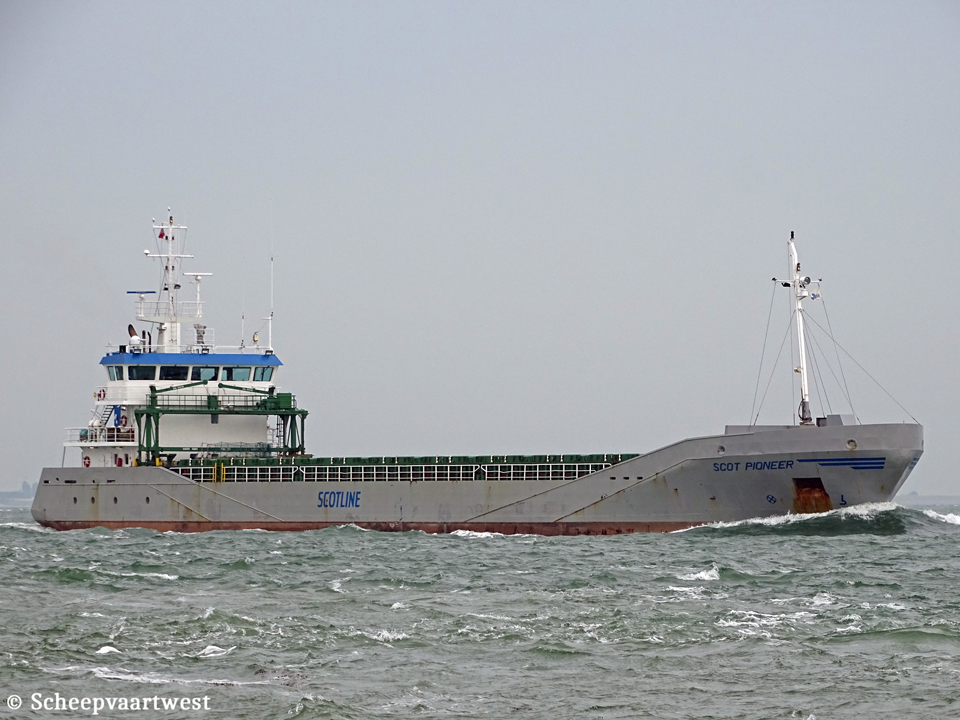

SCOT PIONEER |
|
Previous names |
12/2006 - 02/2008 Harns |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Box Shaped Singledecker |
|
IMO-number |
9331347 |
|
Call sign |
2ALZ7 |
|
Flag |
United Kingdom |
|
Port of registry |
Inverness |
|
Previous flag |
2006 - 2008 The Netherlands, Harlingen - Call sign: PHHO |
|
GT |
2.528 t |
|
DWT |
3.636 t |
|
DWCC |
3.400 t |
|
NT |
1.053 t |
|
Number of 20ft containers |
On deck: 52 In hold: 105 Total: 157 |
|
Number of ‘0ft containers |
On deck: 24 In hold: 48 Total: 72 |
|
Length |
89,99 m overall 84,69 m registered |
|
Breadth |
12,50 m registered |
|
Draught |
Summer: 5,31 m |
|
Air draft |
21,90 m in ballast |
|
Depth |
8,00 m moulded |
|
Speed |
13,0 knots |
|
Built |
2006 |
|
Keel laid |
23/12/2004 |
|
Launch date |
04/07/2006 |
|
Date of completion |
13/12/2006 |
|
Builder casco |
Leda d.o.o. Domince b.b 20 260 Korcula Croatia |
|
Builder completion |
Peters Shipyard Kampen The Netherlands |
|
Yard number |
1206 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
1 |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä W9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW at 1.000 rpm Year of manufacture: 2006 Manufacturer: Wärtsilä Nederland Kruiningen B.V. Stationsweg 6a 4416 PJ Kruiningen The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 190,0 rpm |
|
Boilers |
1x Water heater, oil fired - 1,5 bar Manufacturer: AVC Endüstriyel Ürünler San. ve Tic. Ltd. Sti. Can Sokak No. 7/B Kozyatagi Kadiköy Istanbul Turkey |
|
Electric installations |
1x Plant 400 V - 210 kVA 1x Plant 400 V - 390 kVA 1x Plant 400 V - 77 kVA |
|
Shaft generator |
1x Valmet 390 kVA |
|
Generators |
1x Valmet main diesel generator 210 kVA |
|
Emergency + harbour gen. |
1x Valmet diesel generator 77 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x 250 kW, forward |
|
Hold |
1 60,40 x 10,30/7,60 x 8,15 m |
|
Cargo capacity |
Grain & bale: 4.927 m³ / 174.066 ft³ |
|
Timber fitted capacity |
4.700 m³ |
|
Hatch length |
53,30 + 5,00 x 10,30 + 7,60 m |
|
Max permitted loads |
Tanktop: 15 t/m² Hatch cover: 1,6 t/m² |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Crew size |
8 |
|
Manager |
Scotline Ltd. 75 Main road, Gadea Park Romford Essex United Kingdom |
|
ISM manager |
Scot Pioneer Shipping Ltd. 41, Culduthel Road Inverness United Kingdom |
|
Previouis manager |
12/2006 - 02/2008 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Registered owner |
Scot Pioneer Shipping Ltd. |
|
Previous names & owners |
12/2006 - 02/2008 Harns - Kustvaart Harlingen V.V., Harlingen- The Netherlands |
|
Last data update |
02 October 2020 |
