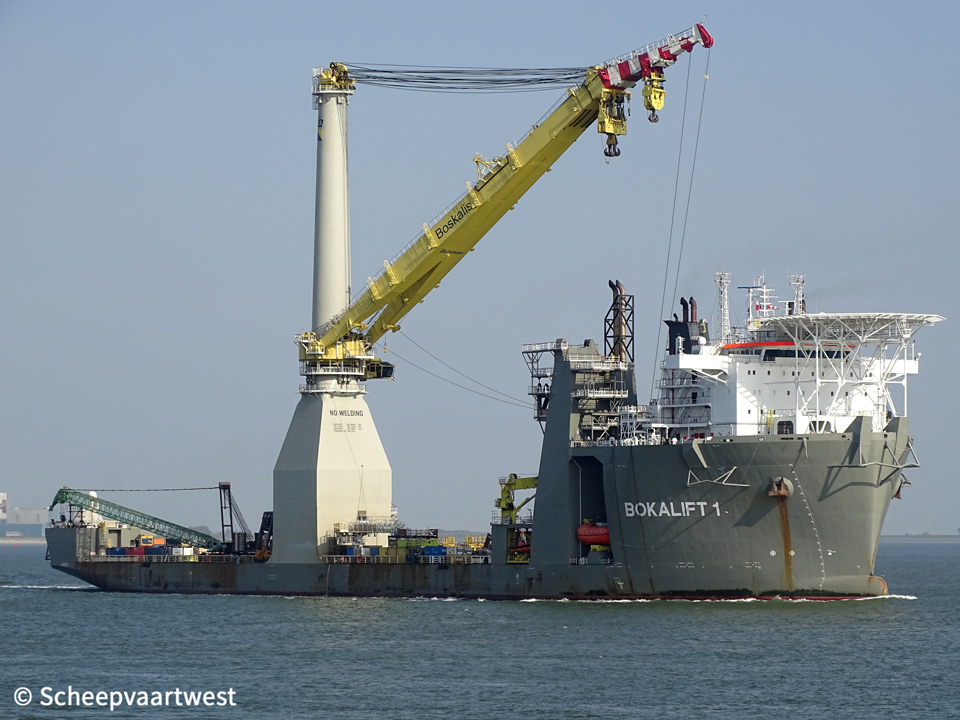

Westerschelde 17 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

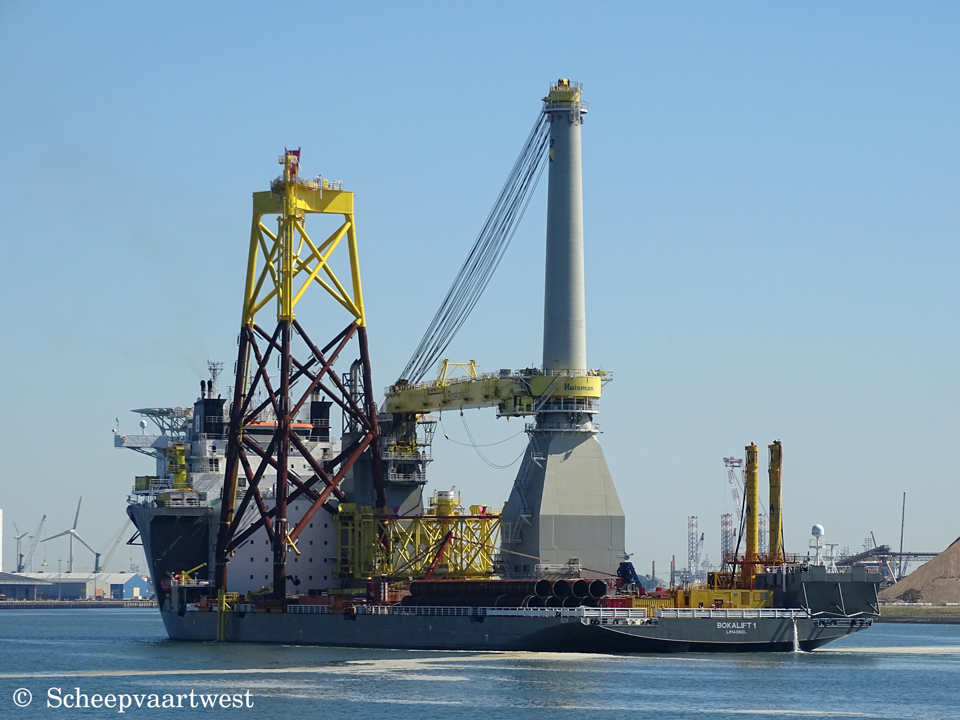

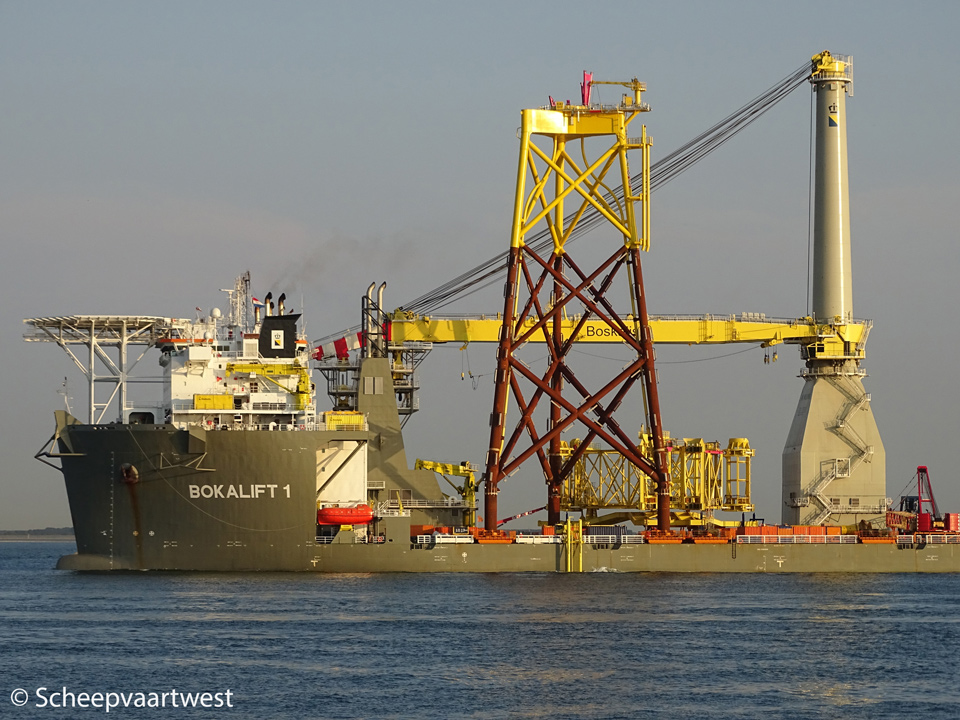

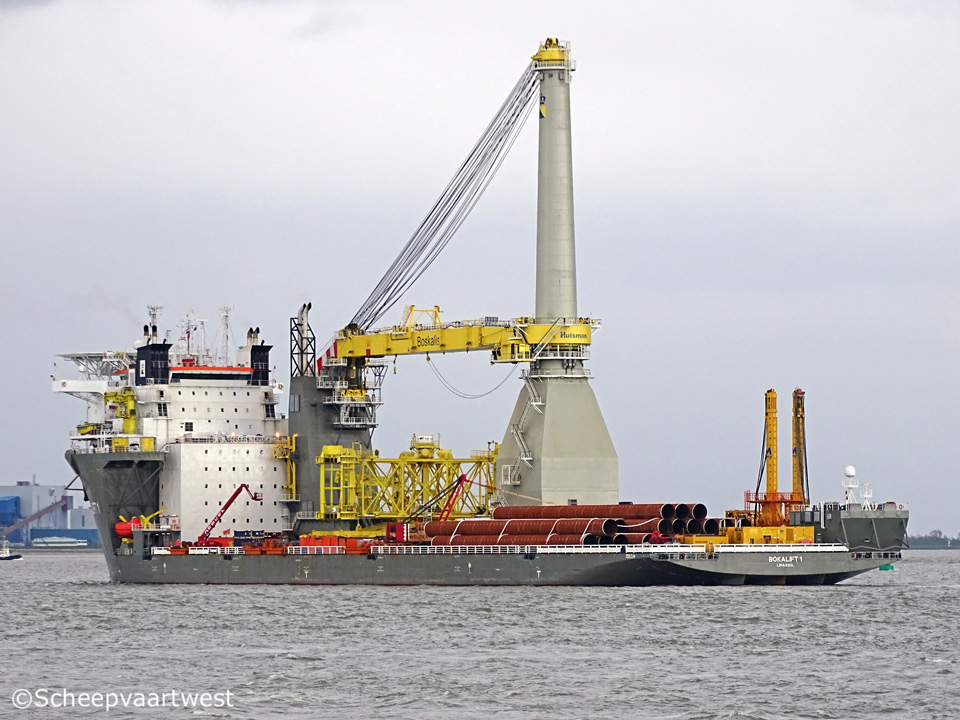

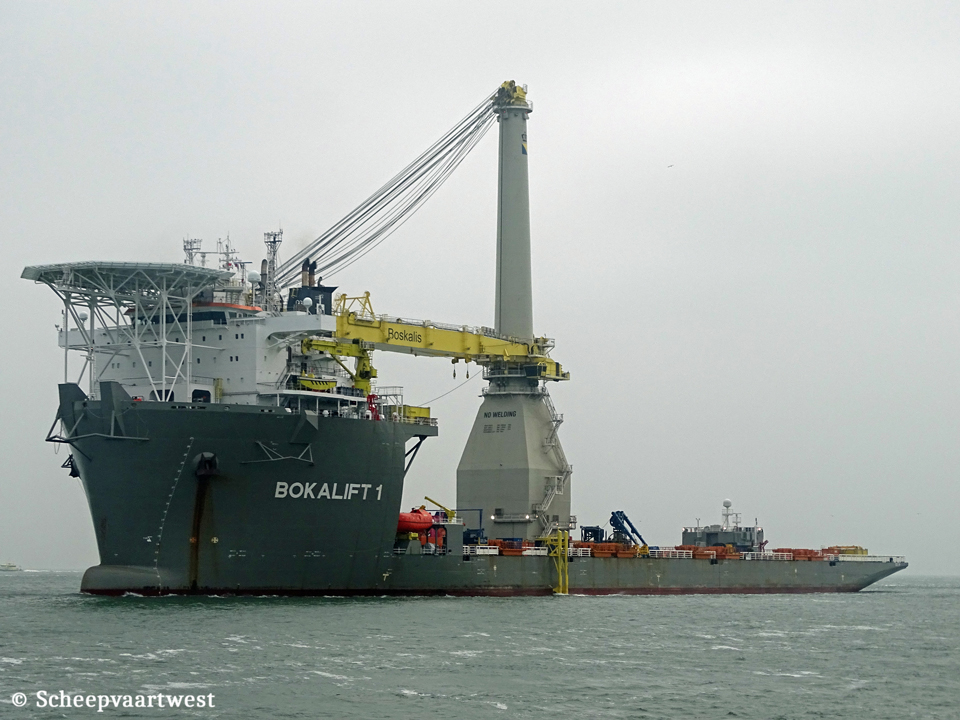

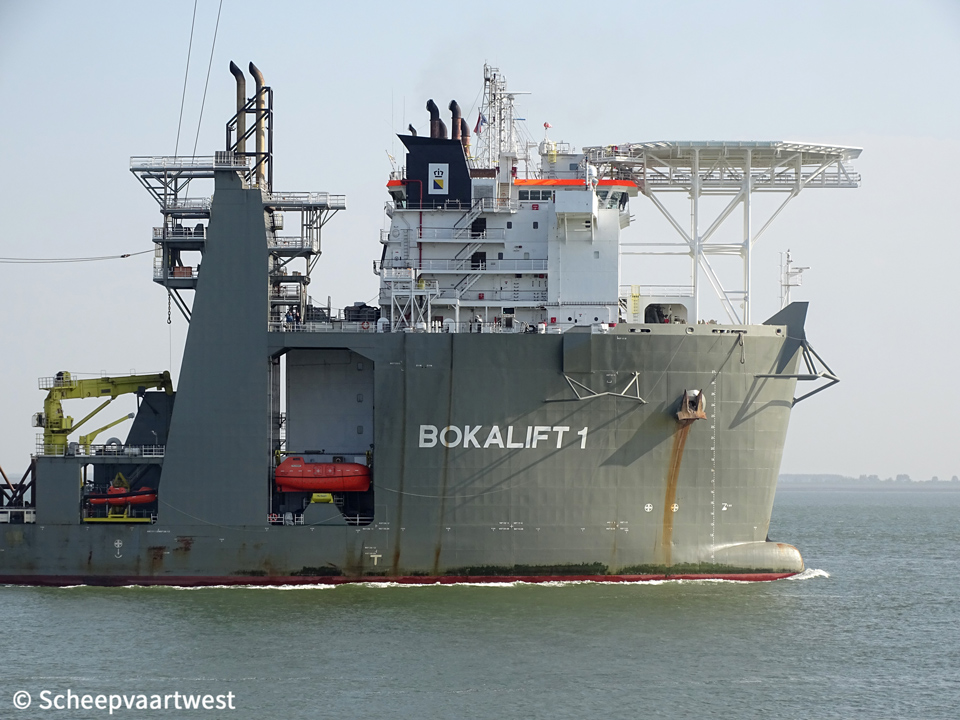

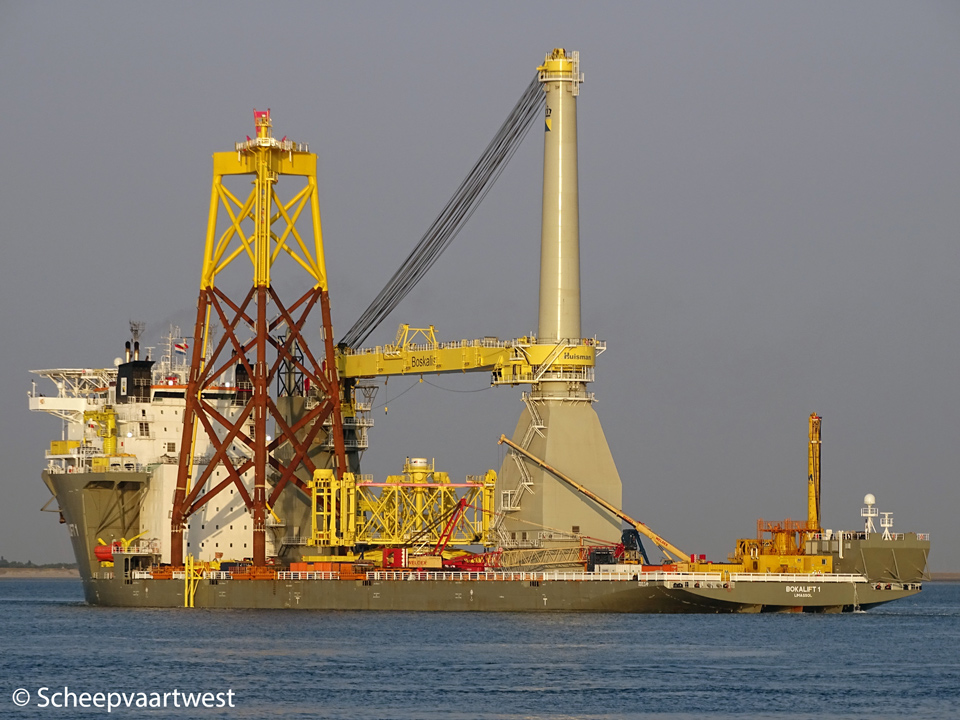

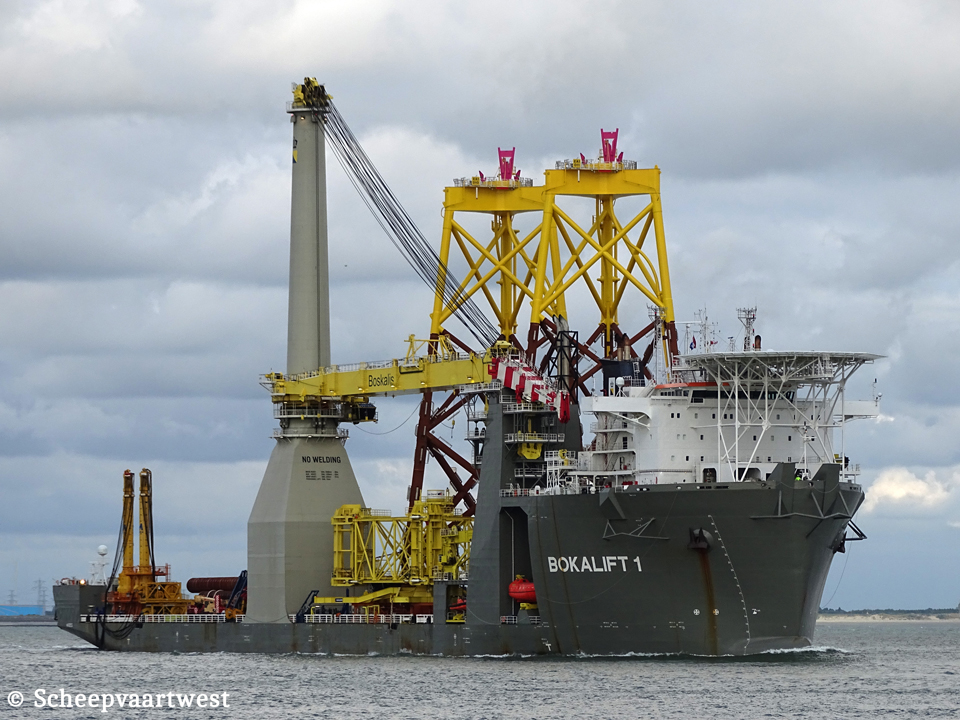

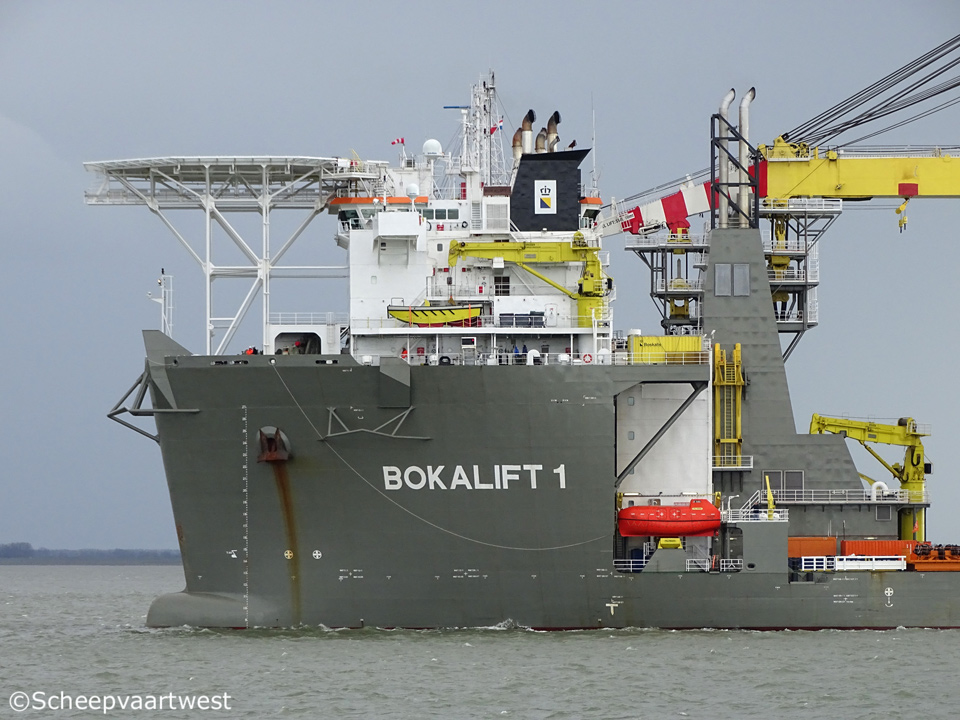

| Westerschelde 04/04/18 | Westerschelde 04/04/18 | Westerschelde 06/08/18 | Westerschelde 25/07/18 | Westerschelde 25/07/18 | Westerschelde 17/04/20 | |||||
 |
 |
 |
||||||||
| Westerschelde 12/06/18 | Westerschelde 19/05/19 | Westerschelde 19/05/19 | ||||||||
|
Name |
BOKALIFT 1 |
|
Previous names |
2012 - 2017 Finesse |
|
Type |
Semi-Submersible heavy lift cargo ship |
|
IMO-number |
9592850 |
|
Call sign |
5BVH4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
11/2012 - 01/2016 The Netherlands, Rotterdam - Call sign: PCNJ 01/2016 - 10/2017 Malta, Valletta - Call sign: 9HA4215 |
|
GT |
36.653 t |
|
DWT |
Summer: 47.500 t |
|
NT |
10.996 t |
|
Length |
216,70 m overall 212,13 m between perpendiculars |
|
Breadth |
42,98 m |
|
Draught |
9,68 m |
|
Air draft |
85,00 m |
|
Freeboard |
3.335 mm |
|
Depth |
13,00 m moulded |
|
Speed |
Max transit: 12,5 knots Service: 14,0 knots |
|
Built |
2012 Transformation Year: 2017 |
|
Keel laid |
22/10/2011 |
|
Launch date |
05/04/2012 |
|
Date of completion |
27/11/2012 |
|
Builder |
Guangzhou Shipyard International Co. Ltd. Guangzhou China |
|
Yard number |
10130004 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
4x Diesel electric oil engines driving 4 generators each 6.600 kW A.C Power: Mcr 16.000 kW / 21.752 hp Csr 13.600 kW / 18.492 hp 4x Wärtsilä Type 8L32- 4 stroke single acting 8 cylinder 320 x 400 mm combustion engines each 4.000 kW / 5.438 hp at 750 rpm Manufacture: Wärtsilä, Engine Builder - Finland |
|
Propellers |
2x Fixed pitch propeller - aft at 75 rpm |
|
Propelling type |
Electrical |
|
Electrical propulsion engine |
2x 5.250 kW at 75,0 rpm |
|
Boilers |
2x Auxiliary boiler, exhaust gas heated MISSION XS-2V 1x Auxiliary boiler, oil/gas fired MISSION OS-TCi |
|
Generators |
4x Wärtsilä 8L32E/E2 Propulsion/power generation 4.613 kVA - 3.690 kW - 5.217 hp Builder: Wärtsilä Finland Oy |
|
Harbour generator |
1x Wärtsilä 6L20 diesel generatorset 1.213 kVA - 9.70 kW - 1.386 hp |
|
Emergency generator |
1x Cummins KTA19-M3/-M/-D(M)/-D(M1) 500 kVA - 400 kW - 659 hp |
|
Thrusters |
2x Tunnel bow thruster solid each 1.200 kW / 1.632 bhp 4x Azimuth thruster solid |
|
Deck cargo |
Size: 6.300 m² Rated: 25,0 t/m² Max deck load: 15.000 t |
|
Helideck |
Suitable for S-61N and S-92 Max take-off weight: 12,8 t |
|
Tank capacities |
Fuel: 4.521,47 m³ |
|
Anchor equipment |
Length: 742,50 m Diameter: 97 mm |
|
Cargo gear |
1x Crane 3.000 t 2x Store cranes each 30,0 t |
|
Accommodation |
150 persons |
|
Manager |
Boskalis Ctd - Offshore B.V. (Royal Boskalis Westminster N.V.) 3350 AA Papendrecht The Netherlands |
|
Previous managers |
11/2012 - 10/2017 Fairstar Heavy Transport N.V., Rotterdam - The Netherlands |
|
Registered owner |
BW Marine (Cyprus) Limited Limassol Cyprus |
|
Previous name & owners |
11/2012 - 10/2017 Finesse - Fairstar Finesse B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
17 September 2020 |
