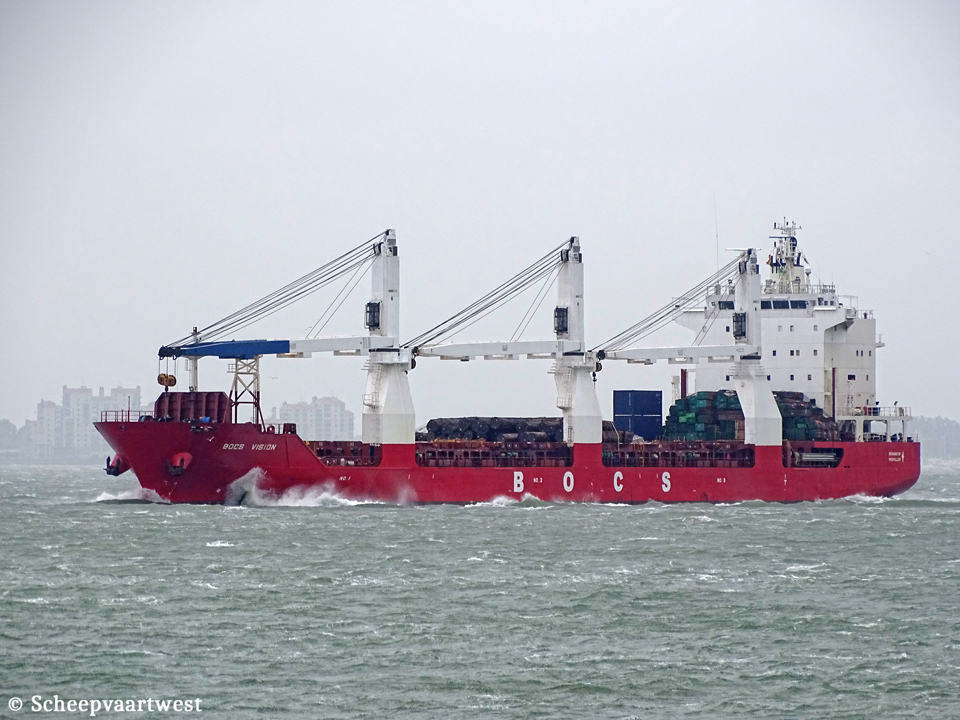

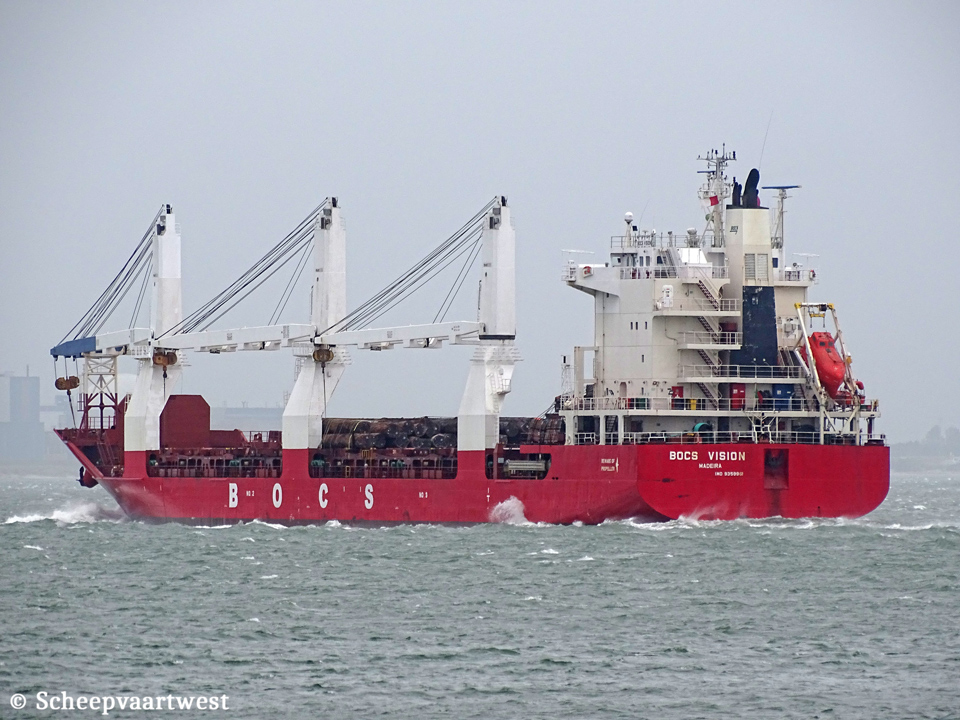

| Westerschelde 10 May 2020 |
 |
| Westerschelde 10/05/20 |
|
Name |
BOCS VISION |
|
Previous names |
2008 launch as: Safmarine Anita 06/2008 - 06/2013 Safmarine 02/2013 - 2017 SCL Andisa 2017 - 2019 Jennifer H |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9359961 |
|
Call sign |
CQAD7 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Switzerland, Basel - Call sign: HBEN |
|
GT |
9.938 t |
|
DWT |
Summer: 12.583 t |
|
NT |
4.266 t |
|
Number of 20ft containers |
In hold: 292 On deck: 414 Total :706 |
|
Reefer plugs |
138 sockets - 400 Volt |
|
Length |
139,94 m overall 133,77 m registered |
|
Breadth |
21,51 m moulded |
|
Draught |
Summer: 8,40 m |
|
Forecastle |
14,72 m |
|
Poop |
9,50 m |
|
Depth |
11,65 m moulded |
|
Speed |
16,7 knots |
|
Built |
2008 |
|
Keel laid |
26/01/2008 |
|
Launch date |
26/04/2008 |
|
Date of completion |
30/06/2008 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. 1, Jichang Street Tanggu, 300435 Tianjin People's Republic of China |
|
Yard number |
343-4 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Movable bulkheads |
Tweendeck panels can be used as port Bulkheads in hold 2 in 2 locations, in hold 3 in 1 location |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.686 hp at 129,0 rpm Manufacturer: Yichang Marine Diesel Engine Co., Ltd. 93, Xiling Er Road Yichang, 430003 Hubei People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft at 129,0 rpm 5 blades |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar 1x Steam boiler,exhaust gas heated - 8,0 bar Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
3x Plants each 450 V - 850 kVA 1x Plant 450 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each 850 kVA / 680 kW |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Controllable pitch thruster - 500 kW, forward |
|
Number of holds |
3x Box shaped type; partly of slant construction in hold 1 forward and 3 aft for bulk cargo Tween deck: 1x Tweendeck in all holds in hold 2 with two heights Hold 1: 20,30 x 7,00 m forward / 10,80 m aft Hold 2: 39,20 x 17,90 m Hold 3: 25,90 x 17,90 m |
|
Hold capacity |
Bale: 16.113 m³ / 569.048 ft³ |
|
Hold ventilation |
Mechanical: Hold 1 & 3: 6 times Hold 2: 10 times |
|
Number of hatches |
3 |
|
Hatch cover type |
MacGregor hydraulic folding type and lift away pontoons |
|
Max. permitted loads |
Tank top: 18,0 t/m² Tween deck: 3,5 t/m² Hatch covers: 3,5 t/m² |
|
Number of pumps |
2x Ballast pumps each 300 m³/h |
|
Tank capacities |
Fuel oil: 1.130 m³ Marine diesel oil: 140 m³ Fresh water: 180 m³ Ballast water: 4.920 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
1x Crane electro-hydraulic - SWL 45 t / 40 t 2x Cranes electro-hydraulic - SWL 80 / 60 / 45 / 40 t - combined 144 t with team beam - |
|
Accommodation |
Air-conditioned cap. For 19 persons in single cabins, galley, 2 x messroom, office, laundry and stores |
|
ISM & commercial manager |
Roerd Braren Bereederungs GmbhH Bielenberg 18 23577 Kollmar Germany |
|
Registered owner |
RMH Asset Verwaltungs Care of Roerd Braren Bereederungs GmbH & Co KG , Bielenberg 18 23577 Kollmar Germany |
|
Latest data adjustment |
09 February 2022 |
