Westerschelde 30 March 2018 |
 |
| WS 30/03/18 |
|
Name |

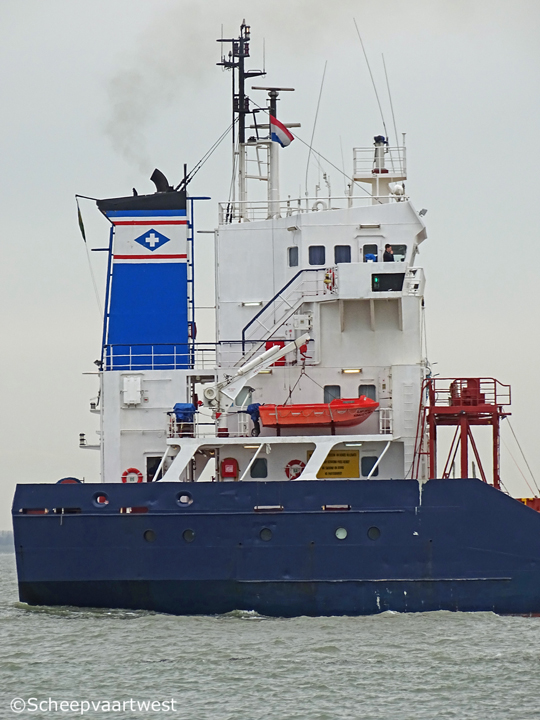

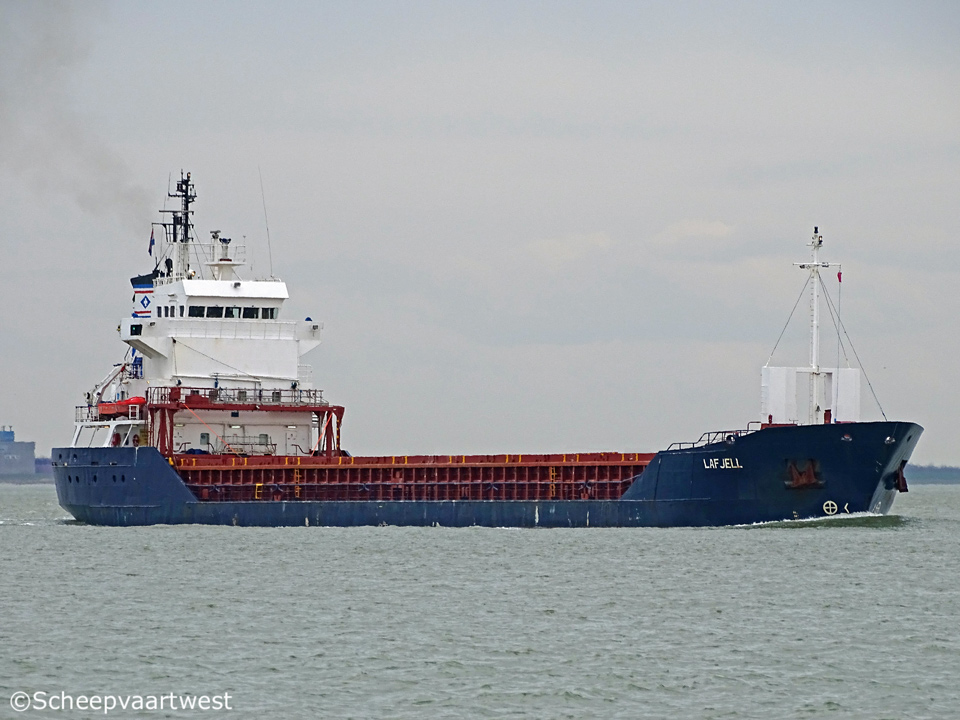

LAFJELL |
|
Previous names |
1996 Saar Bremen 12/1996 - 02/2015 Uphusen |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9115937 |
|
Call sign |
J8B5226 |
|
Flag |
Saint Vincent & Grenadines |
|
Port of registry |
Kingstown |
|
Previous flags |
Antigua and Barbuda, St. John’s |
|
GT |
2.846 t |
|
DWT |
Summer: 4.343 t Winter: 4.211 t |
|
NT |
1.584 t |
|
Number of 20ft containers |
206 |
|
Length |
90,33 m overall 84,60 m between perpendiculars |
|
Breadth |
13,20 m extreme |
|
Draft |
Summer: 5,87 m fully laden Winter: 5,75 m fully laden |
|
Air draft |
24,00 m in ballast |
|
Depth |
7,30 m |
|
Speed |
12,0 knots |
|
Built |
1996 |
|
Keel laid |
10/06/1995 |
|
Launch date |
18/11/1995 |
|
Date of completion |
01/02/1996 |
|
Builder |
Bodewes Shipyards B.V. |
|
Yard number |
573 |
|
Hull material |
Steel |
|
Main engine |
1x Deutz SBV9M628 - 4 stroke9 cylinder combustion engine 1.800 kW at 900 rpm Builder: Deutz-MWM Motorenwerke AG, Mannheim - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
1x Sisu 420DSG main diesel generatorset 405 kVA 2x Scania DS9 main diesel generatorset each 170 kVA |
|
Emergency generator |
1x Diesel generatorset 78 kVA |
|
Bow thruster |
1x 240 kW |
|
Number of holds |
1x Box 65,00 x 10,58 x 8,50 m |
|
Cargo hold capacity |
4.343 m³ |
|
Number of hatches |
1 65,00 x 10,58 x 8,50 m |
|
Hatch type |
Pontoons |
|
Max permitted loads |
Tanktop: 18,0 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.802,58 m Bunkering: 232 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Manager |
Venus Shipping ApS |
|
Registered owner |
AAT Shipinvest AS Norway |
|
Latest data adjustment |
27 July 2018 |
