Boabarge 36

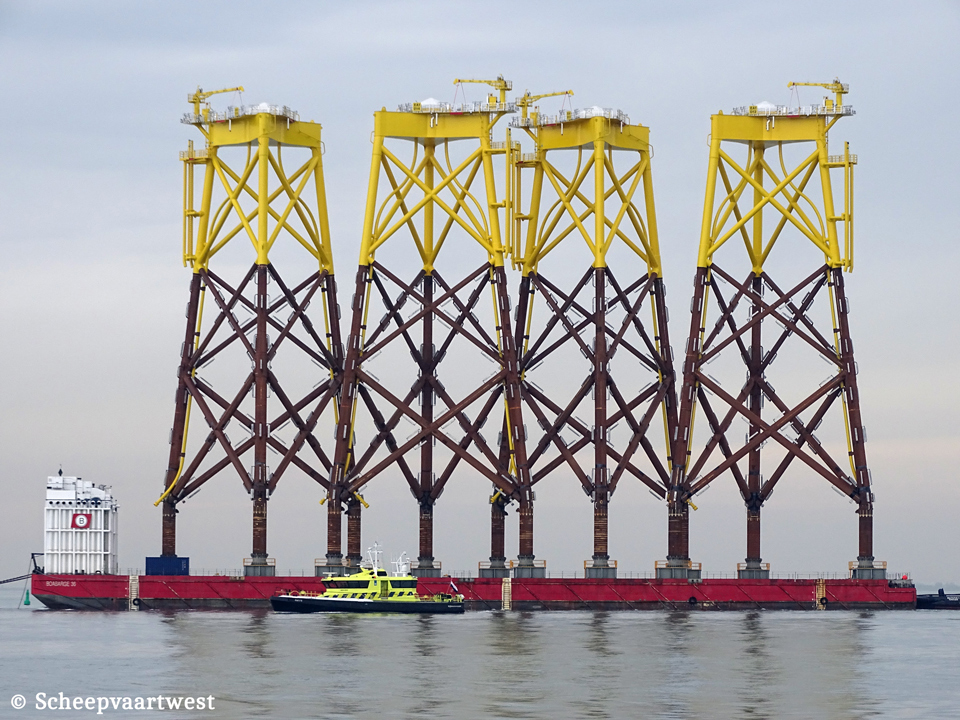

Westerschelde 06 August 2018

Name

BOABARGE 36

Type

Heavy lift and semi-submersible ocean going heavy deck cargo barges

Call sign

LG3025

Flag

Norway

Port of registry

Trondheim

GT

8.762 t

DWT

17.300 t

NT

2.629 t

Length

124,00 m overall

119,08 m between perpendiculars

Breadth

36,49 m extreme

31,50 m moulded

Draught

6,08m fully loaded

Depth

7,93 m moulded

Built

2009

Keel laid

09/10/2008

Launch date

16/07/2009

Date of completion

15/06/2010

Builder

Nanjing Wujiazui Shipbuilding Co. Ltd.

Nanjing

China

Yard number

WJZ036

Hull material

Steel

Power supply

2x Caterpillar 3306 main generators each 269 kVA, 440 Volt 60 Hz

1x Caterpillar 3306 main generator 154 kVA, 440 Volt 60 Hz

1x Work generator 22 kVA / 30 kW, 440 Volt 60 Hz

Shore power connections: 230 Volt and 440 Volt

Deck space

3.600 m²

Deck strength

31,5 t/m²

Launching capacity

Up to 5.000 t jacket

Submerging depths

Submerging (without floatation tanks) when grounding at stern:

8,00 m above deck forward

12,00 m above deck aft

Submerging (free floating) with 10m high floatation tanks positioned aft on main deck:

8,00 m above deck forward

8,00 m above deck aft

Floatation tanks for free floating:

L x B x H: 12,00 x 6,10 x 10,00 m

Ballast system

• Ballast pumps (Diesel driven): 2x 3.000 m³/h

• Ballast pumps (Electric driven): 1x 750 m³/h

• Service Pump (Electric driven): 1x 260 m³/h

• Ballast tanks: 24 in pontoon

• Remote operated pumps, valves and sounding system from the control room

• Ejector stripping system for all ballast tanks

Anchor & mooring equipment

• Anchor winch: 1x Hydraulic driven

• Anchor: 1x HPP anchor, 4.500 kg, 355,00 m x diameter 58 mm

• Work winch: 2x Double drum on winch deck

• Rope capacities: 220,00 m x 40 mm (721,8 ft x 1,57 in) & 150,00 m x 60 mm (492,1 ft x 2,36 in)

• Capstans: 3x 12 t pull

Towing equipment

• Towing Bridle: 1x Bridle, 2x 20,00 m legs, tow plate and 9,00 m long fore runner

• Bridle Chain: 66 mm K3, MBL 330 t, Max bollard pull 150 t

• Recovery System: A-frame and recovery winch with chain on main deck forward

• Emergency towing: Towing wire installed along port side Length 134,00 m, MBL 330 t

• Towing brackets: 3x forward 500 t MBL

Fuel oil tank

A fuel oil storage tank with a capacity 38,9 m³ and a fuel oil day tank with capacity 5,2 m³ are located in the pump room. A screw pump with capacity 16,5 m³/hour is installed for fuel transfer

Tank capacities

Ballast tanks: 36.770 m³

Bilge tanks: 34 m³

Sewage: 7,7 m³

Fresh water: 15,2 m³

Fuel MDO: 44,2 m³

Lub oil: 06, m³

Hydraulic oil: 1,3 m³

Accommodation

12 beds

1x Day room

1x Meeting room

Manager

Boa management AS

Strandveien 43

7067 Trondheim

Norway

Registered owner

Boa Barges AS

Strandveien 43

7067 Trondheim

Norway

Latest data adjustment

12 January 2023
