Antwerpen 26 April 2019 |
 |
| Antwerpen 26/04/19 |
|
Name |

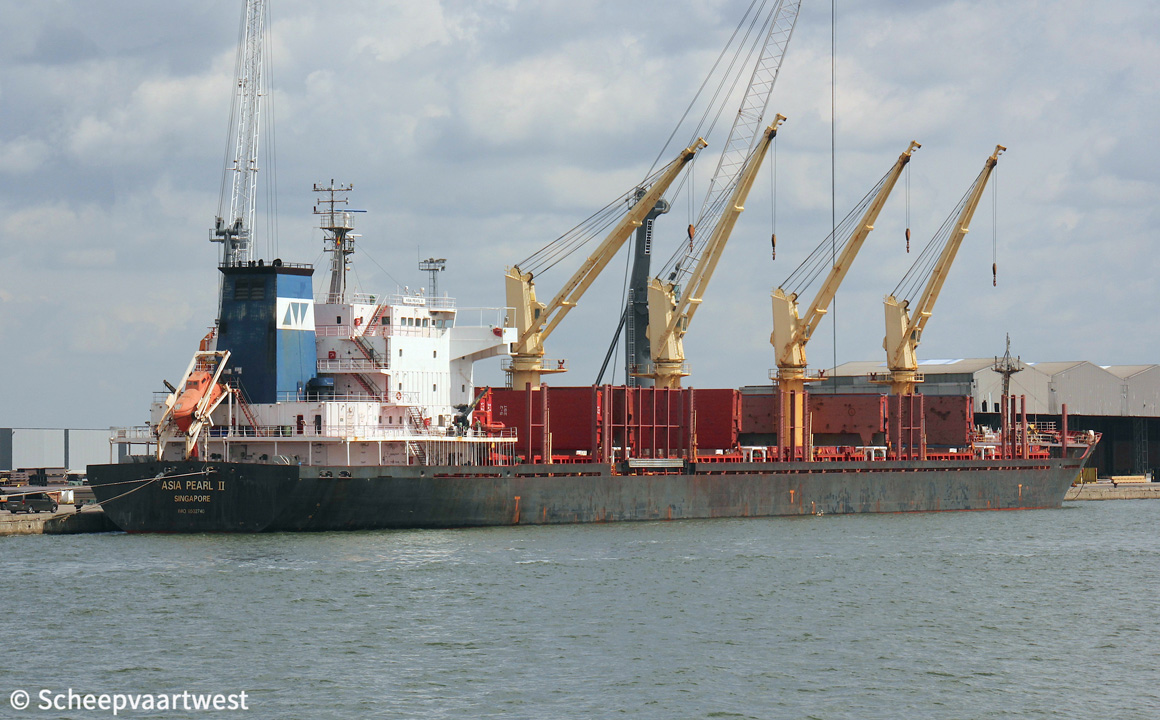

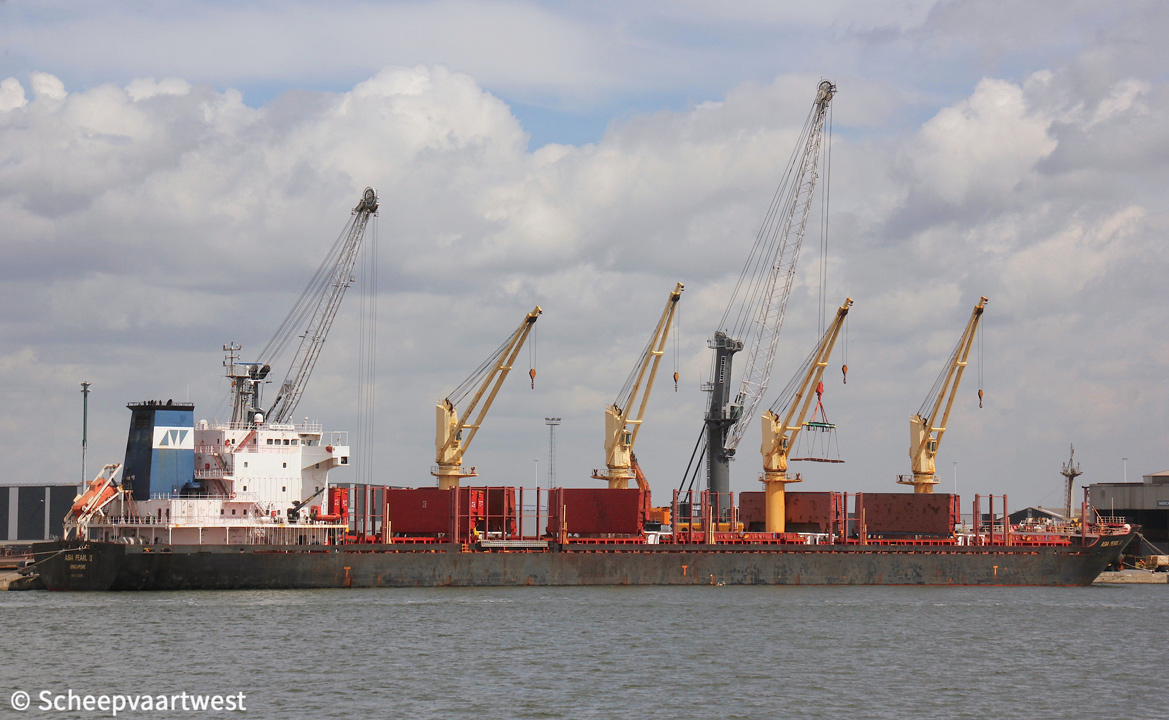

ASIA PEARL II |
|
Previous names |
2009 - 10/2009 Pretty Crown 10/2009 - 08/2012 Stella Kuma 08/2012 - 2016 United Tambora |
|
Type |
Bulk carrier |
|
IMO-number |
9502740 |
|
Call sign |
9V3191 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2009 - 2015 Liberia, Monrovia |
|
GT |
22.402 t |
|
DWT |
Summer: 35.239 t |
|
NT |
12.019 t |
|
Length |
179,90 m overall 171,50 m between perpendiculars |
|
Breadth |
28,40 m |
|
Draught |
Max: 10,80 m |
|
Freeboard |
4.224 mm |
|
Depth |
Laden: 13,5 knots Ballast: 14,0 knots Max: 15,00 m |
|
Speed |
15,2 knots |
|
Built |
2009 |
|
Date of completion |
27/10/2009 |
|
Builder |
Nantong Changqingsha Shipyard Co.,Ltd. |
|
Yard number |
CQS-0803 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.480 kW / 8.804 hp at 136,0 rpm Build: 20/02/2009 Builder: STX Engine Co.,Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 136,0 rpm |
|
Boilers |
1x CHM Greens Shazhou 226,00 m² - 7,0 bar |
|
Generators |
3x Xinzhong CXZ MAN 5L16/24 main diesel generatorsets each 581 kVA - 465 kW - 679 hp at 1.200 rpm |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 179 hp |
|
Number of holds |
5 1: 23,95 x 4,75/22,80 x 13,85 m 2: 28,73 x 24,50/24,50 x 13,85 m 3: 23,92 x 24,50/24,50 x 13,85 m 4: 28,74 x 24,50/24,50 x 13,85 m 5: 23,08 x 23,30/11,20 x 13,85 m |
|
Total Capacity of holds |
Hold 1: 6.910,70 m³ Hold 2: 10.018,30 m³ Hold 3: 9.375.40 m³ hold 4: 10.018.30 m³ Hold 5: 7.971.60 m³ Total grain: 44.294,30 m³ Total bale: 42.486,84 m³ |
|
Tank capacities |
Fuel: 1.665,5 m³ |
|
Cargo gear |
4x Cranes - SWL 30,5 t each outreach 9,60 m |
|
Manager |
Asia Maritime Pacific Shanghai |
|
Registered owner |
Maritime Asia Pearl Pte Ltd. |
|
Previous names & owners |
2009 - 10/2009 Pretty Crown - Parakou Sg Ltd. 10/2009 - 08/2012 Stella Kuma - ms "United Tambora" Schifffahrts GmbH & Co KG 08/2012 - 2016 United Tambora - ms "United Tambora" Schifffahrts GmbH & Co KG |
|
Latest data adjustment |
25 June 2019 |
