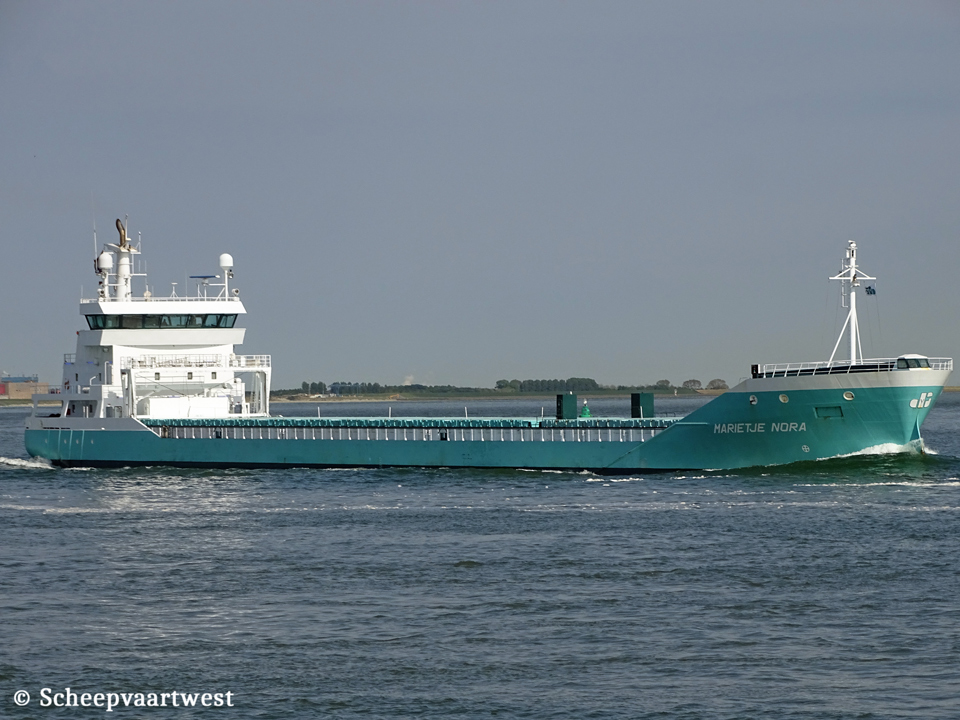

Westerschelde 23 May 2019 |
 |
 |
|

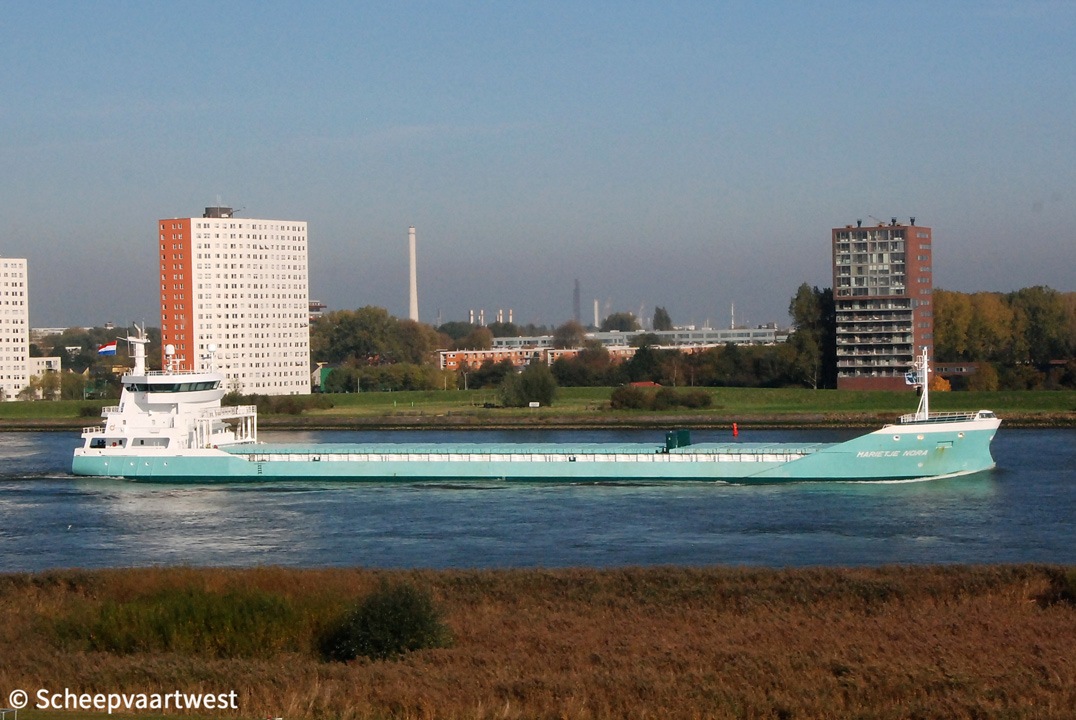

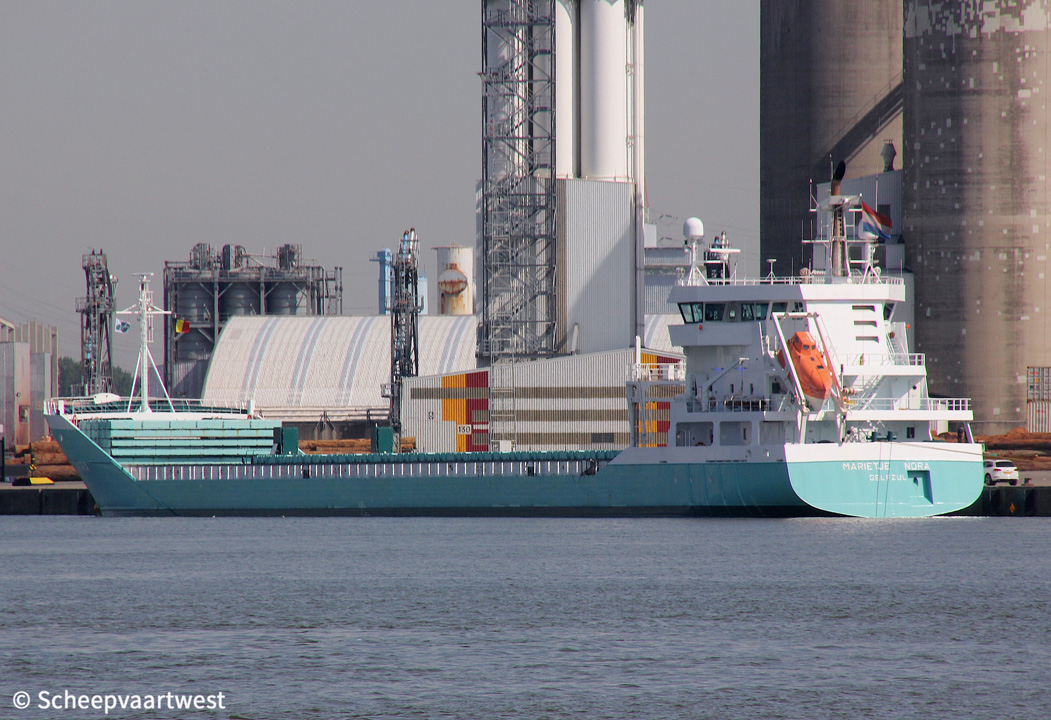

| Spijkenisse 21/10/19 | Antwerpen 23/05/19 |
|
Name |
MARIETJE NORA |
|
Type |
General cargo ship - Multi-purpose carrier - heavycargo Open hatch, fully box, double skinned, Part tween-decker |
|
IMO-number |
9481609 |
|
Call sign |
PDAS |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
5.904 t |
|
DWT |
Summer: 8.200 t |
|
DWCC |
Summer: 8.600 t |
|
NT |
2.863 t |
|
Length |
136,10 m overall 130,25 m between perpendiculars |
|
Breadth |
15,20 m overall |
|
Draught |
Summer: 6,88 m Winter: 6,74 m |
|
Air draft |
25,00 m in ballast |
|
Freeboard |
2.637 mm |
|
Depth |
9,50 m moulded |
|
Speed |
13,7 knots |
|
Built |
2015 |
|
Launch date |
06/02/2015 |
|
Date of completion |
10/07/2015 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
322 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Movable bulkheads |
3x Movable bulkheads |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9L27/38 - 4 stroke single acting 9 cylinder 270 x 280 mm combustion engine 2.999 kW / 4.160 bhp at 800 rpm Build: 07/2013 Builder: MAN Diesel & Turbo SE , Fredrica - Denmark |
|
Propellers |
1x Screw propeller controllable pitch |
|
Shaft generator |
1x 585 kVA - 468 kW |
|
Generators |
1x Main diesel generatorset 300 kVA - 240 kW - 353 hp |
|
Emergency generator |
1xDiesel generatorset 300 kVA - 240 kW - 353 hp |
|
Bow thruster |
400 kW |
|
Number of holds |
2 Hold 1: 30,6 x 12,8 x 9,15 m Hold 2: 63,6 x 12,8 x 9,15 m |
|
Total capacity of holds |
Grain/bale: 10.970 m³ / 387.241 ft³ |
|
Hold ventilation |
Electrical hold ventilation about 9 air changes per hour basis empty hold. Vessel is equipped with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 30,6 x 12,8 m Hatch 2: 63,6 x 12,8 m |
|
Tank capacities |
HFO: 274,14 m³ MGO: 220,30 m³ Water ballast: 3.691,5 m³ Fresh water: 53,09 m³ |
|
Manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Operator |
Wagenborg Scheepvaart BV |
|
Registered owner |
H.M. Danser, H.J. Danser Sr. & Wagenborg Delfzijl B.V. Delfzijl The Netherlands |
|
Latest data adjustment |
24 February 2022 |
