Westerschelde 10 July 2018 |
 |
 |
|
| Westerschelde 06/09/15 | Westerschelde 03/08/17 | |
|
Name |

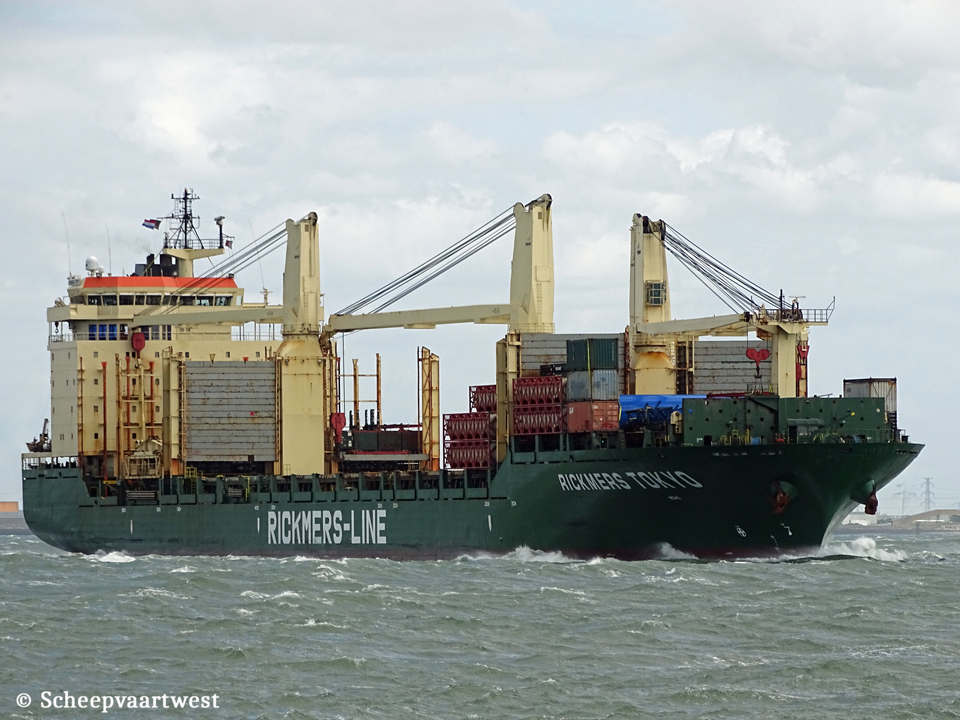

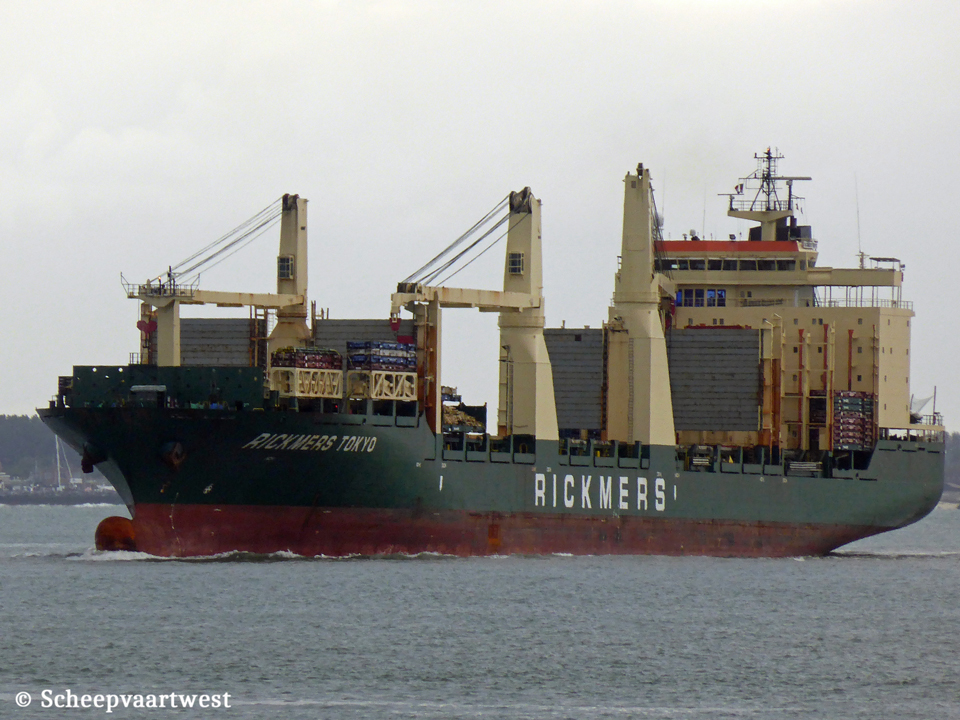

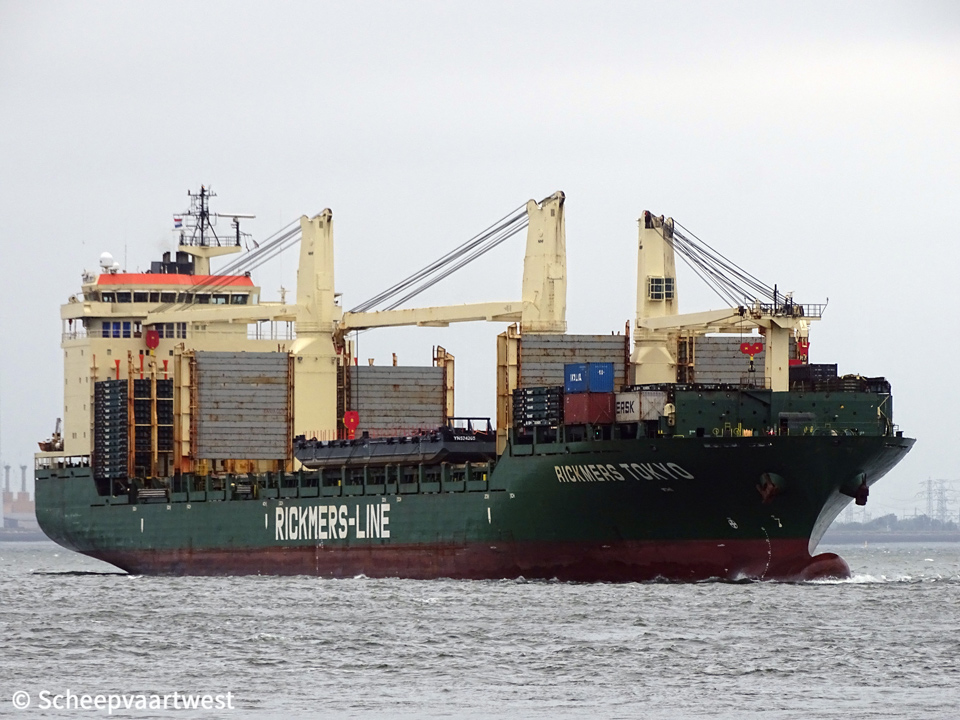

RICKMERS TOKYO |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy-lift box-hold MPP tweendecker |
|
IMO-number |
9235995 |
|
Call sign |
V7DW6 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
23.119 |
|
DWT |
Summer: 29.827 t |
|
NT |
9.752 |
|
Number of 20ft containers |
1.864 |
|
Container capacity 14t |
1.350 |
|
Reefer plug |
150 reefer plugs on deck |
|
Length |
192,90 m overall 183,56 m between perpendiculars |
|
Breadth |
27,80 m extreme |
|
Draught |
Summer: 11,20 m |
|
Depth |
15,50 m |
|
Speed |
Max: 18,0 knots |
|
Built |
2002 |
|
Keel laid |
16/12/2001 |
|
Launch date |
25/05/2002 |
|
Date of completion |
13/12/2002 |
|
Builder |
Xiamen Shipyard Industry Xiamen China |
|
Yard number |
439D |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W-Hudong Heavy Machinery 7S60MC-C - 2 stroke 7 cylinder combustion engine 15.785 kW |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated AV-4 1x Auxiliary boiler, oil/gas fired AQ-12 |
|
Generators |
2x MAN 7L23/30H main diesel generatorsets each 1.100 kW 1x MAN 6L23/30H main diesel generatorset 950 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset |
|
Bow thruster |
1x 900 kW |
|
Number of holds |
Hold#1: 12,80 x 15,40 / 12,80 x 20,40 m Hold#2: (twin) 25,60 x 10,32 m Hold#3: (twin) 32,00 x 10,32 m Hold#4: (twin) 25,60 x 10,32 m Hold#5: 12,80 x 10,32 m |
|
Cargo hold capacity |
Hold#1: 5.599 m³ / 197.727 ft³ Hold#2: 8.114 m³ / 286.543 ft³ Hold#3: 10.358 m³ / 365.789 ft³ Hold#4: 8.200 m³ / 289.580 ft³ Hold#5: 3.638 m³ / 128.474 ft³ Total: 35.909 m³ / 1.268.114 ft³ |
|
Floor space |
Under Deck: 2.439 m² / 26.253 ft² On Deck: 2.250 m² / 24.219 ft² |
|
Load distribution |
Weather Deck: 2,50 t/m² Hold#2: 4,00 t/m² (for all 4 levels) Hold#3: 4,00 t/m² (for all 4 levels) Hold#4: 4,00 t/m² (for all 4 levels) Tank Top: 22,00 t/m² except for hold 1: 13,75 t/m², for Hold#5: 13,5 t/m² |
|
Tank capacities |
Ballast: 12,196,5 m³ |
|
Anchor equipment |
Length: 631,10 m Diameter: 68 mm |
|
Cargo gear |
2x NMF cranes - SWL 320 t lifting capacity each Combined 640 mt lifting capacity 1x NMF crane - SWL forward 45 t lifting capacity 1x NMF crane - SWL aft 100 t lifting capacity |
|
Renamed |
2019 Zea Tokyo Marshall islands, Majuro - Call sign: V7DW6 Manager: Zeaborn Ship Management GmbH & Cie, KG Owner: Rickmers Tokyo Schiffahrtsgesellschaft mbH & Cie, KG Operator: Atlantic Gesellschaft zur Vermittlung Internationaler Investitionen mbH & Co, KG 07/2020 Kyo Comoros - call sign: D6A2756 |
|
Scrapped |
24/07/2020 As Kyo Beached at Alang - India |
|
Latest data adjustment |
19 June 2024 |
