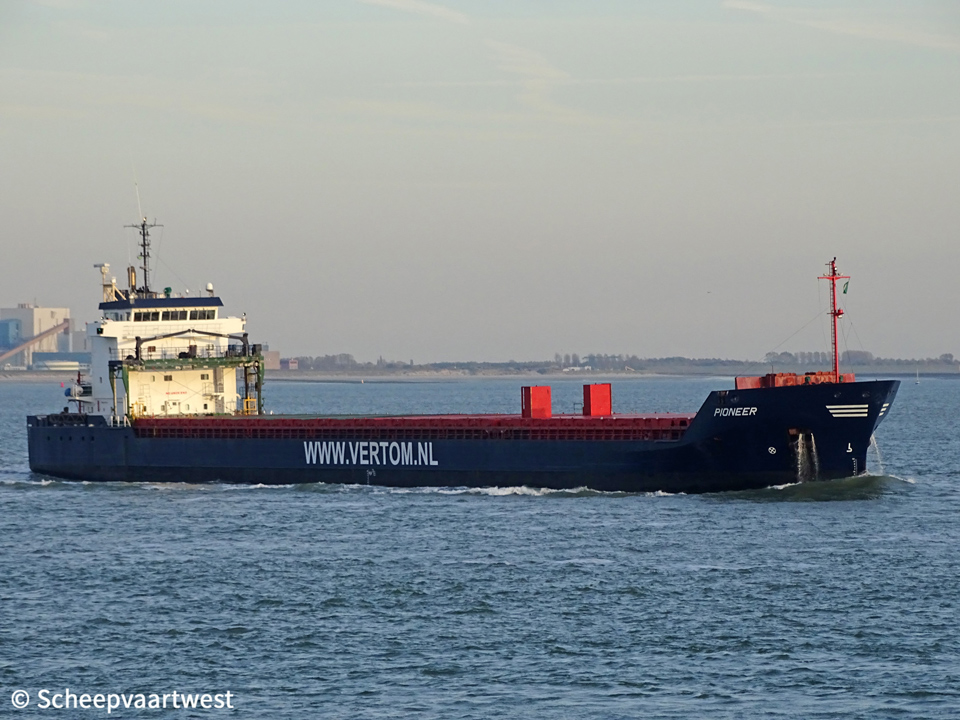

Westerschelde 03 November 2018 |
 |
|

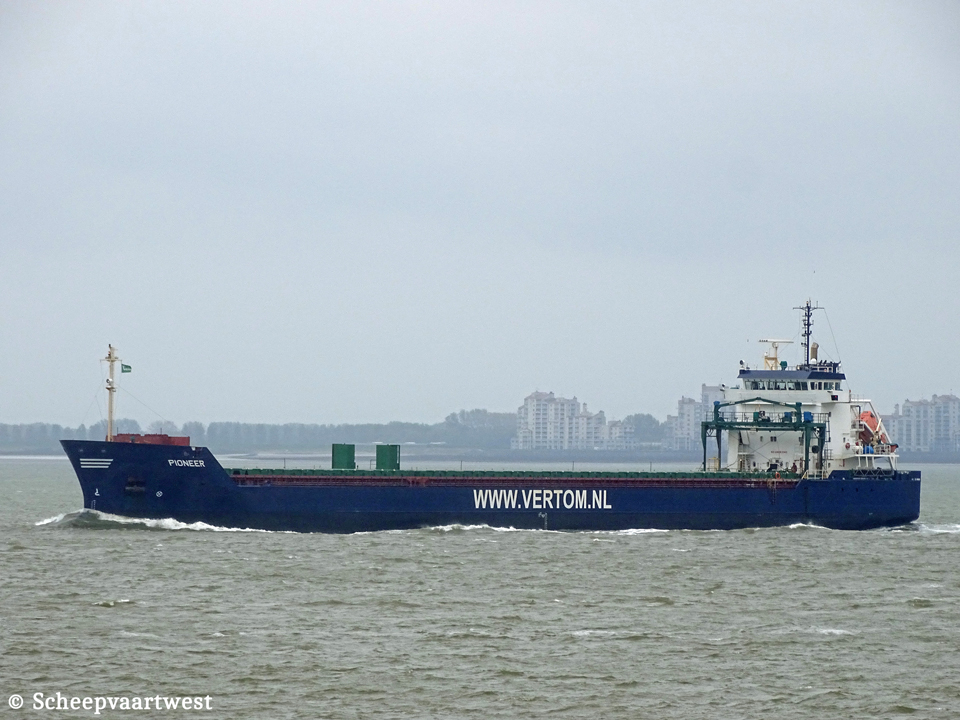

| Westerschelde 28/04/18 | |
|
Name |
PIONEER |
|
Previous names |
01/2010 - 12/2016 Pioneer 12/2006 - 09/2017 Rome |
|
Type |
Multi-purpose general cargo ship - Container ship - Strengthened for heavy cargoes Gearless box partly tweendecker |
|
IMO-number |
9504102 |
|
Call sign |
PBWO |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.621 t |
|
DWT |
Summer: 11.048 t Winter: 10.738 t |
|
DWCC |
Summer: 10.600 t pending on bunkers Winter: 10.250 t pending on bunkers |
|
NT |
3.448 t |
|
Number of 20ft containers |
In hold: 189 On deck: 189 Total: 365 |
|
Length |
132,60 m overall 126,90 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
Summer: 7,83 m |
|
Air draft |
35,00 m ballast |
|
Freeboard |
2.955 mm |
|
Depth |
10,78 m moulded |
|
Speed |
14,1 knots |
|
Built |
2010 |
|
Launch date |
21/11/2009 |
|
Date of completion |
15/01/2010 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
396 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Grain bulkheads |
2x in 6 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.435 hp at 600 rpm Build: 04/05/2009 Builder: M.A.K. Caterpillar Motoren G.m.b.H , Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 159 rpm |
|
Shaft generator |
1x 850 kVA - 680 kW / 450 Volt 50 Hz |
|
Generators |
2x Main diesel generatorsets each 387 kVA - 310 kW - 455 hp / 450 Volt 50 Hz |
|
Emergency generator |
1x Diesel generatorset 131 kVA - 105 kW - 166 hp |
|
Bow thruster |
1x Tunnel Thruster 573 kW / 816 bhp, forward |
|
Number of holds |
2 Hold 1: 32,40 x 13,20 x 10,60 m Tweendecks hold 1: under height 5,45 m upper height 4,52 m Hold 2: 63,50 x 13,20 x 10,60 m Tweendecks hold 2: under height 5,45 m upper height 4,52 m |
|
Total capacity of holds |
Hold 1: 146.000 ft Hold 2: 542.00 ft³ Total: 13.008,96 m³ / 452.000 ft³ |
|
Hold ventilation |
8x Air-changes per hour |
|
Number of hatches |
2 Hatch 1:32,40 x 13,20 m Hatch 2: 63,50 x 13,20 m |
|
Hatch type |
15 Pontoon hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m², suitable for heavy cargo capable to load steel coils of max 30,0 t each Hatch covers: 1,75 t/m² Tweendeck: 3,50 t/m² |
|
Tank capacities |
Fuel: 587,6 m³ |
|
Manager |
Vertom Scheepvaart- en Handelmaatschappij B.V. Oever 7 3161 GR, Rhoon The Netherlands |
|
Previous managers |
2010 - 2016 Flinter Management B.V., Barendrecht - The Netherlands 2016 - 2017 Management Facilities Group, Farmsum - The Netherlands |
|
Registered owner |
Monte Zoncolan Pioneer BV Oever 7 3161 GR Rhoon The Netherlands |
|
Previous names & owners |
01/2010 - 12/2016 Pioneer - Flinter Pioneer B.V., Delfzijl - The Netherlands 12/2016 Rome - Flinter Pioneer B.V., Delfzijl - The Netherlands |
|
Renamed |
06/2022 Kaie Antigua & Barbuda, St. John’s - Call sign: V2QY7 Manager: Hansa Shipping, Tallinn - Estonia |
|
Latest data adjustment |
21 July 2022 |
