Antwerpen 21 November 2019 |
 |
| Antwerpen 21/11/19 |
|
Name |

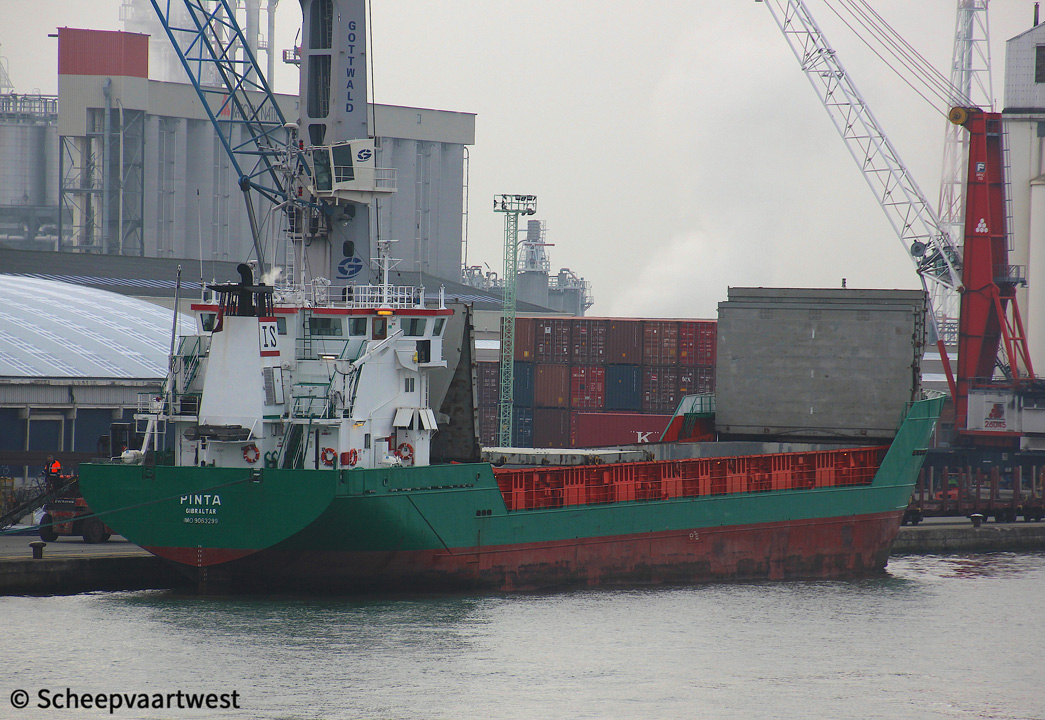

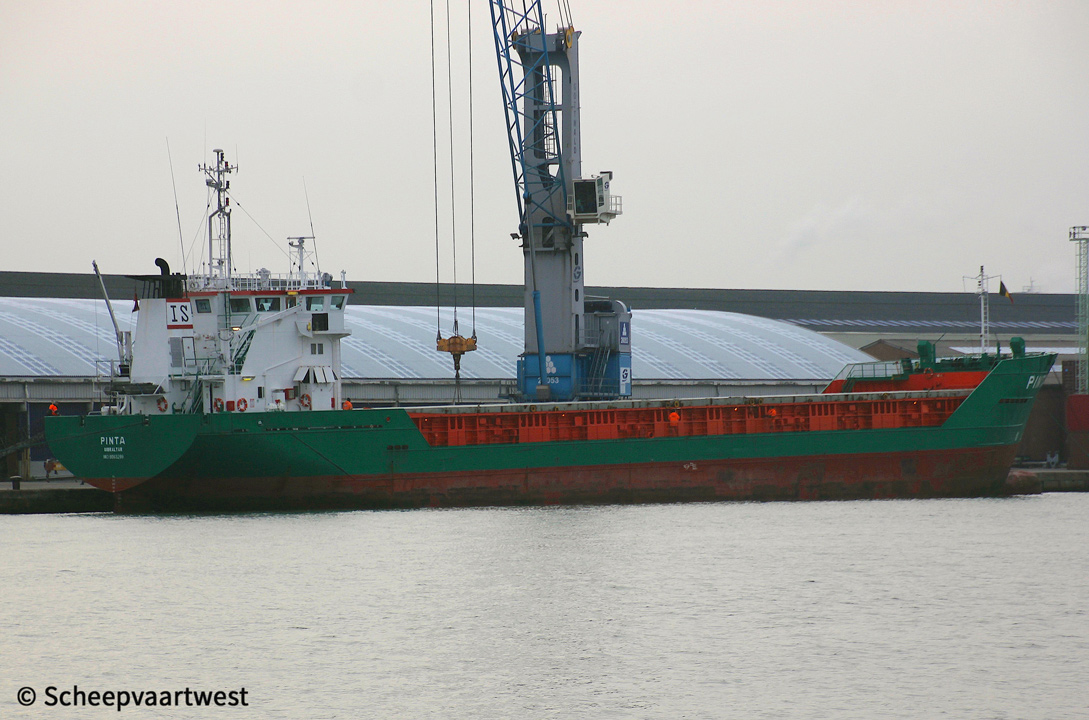

PINTA |
|
Type |
Multi-Purpose cargo carrier - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9063299 |
|
Call sign |
ZDFC8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
1993 - 2003 Germany - Call sign: DIWT |
|
GT |
2.190 t |
|
DWT |
Summer: 2.751 t |
|
DWCC |
Summer: 2.650 t Winter: 2.600 t |
|
NT |
1.095 t |
|
Number of 20ft containers |
88 |
|
Length |
82,38 m overall 78,90 m between perpendiculars |
|
Breadth |
13,00 m |
|
Draught |
Max: 4,92 m |
|
Air draft |
13,30 m full ballast |
|
Forecastle |
5,95 m |
|
Poop |
14,10 m |
|
Freeboard |
Summer: 1.466 mm |
|
Depth |
6,60 m |
|
Speed |
12,50 knots extreme |
|
Built |
1993 |
|
Keel laid |
14/07/1992 |
|
Launch date |
28/11/1992 |
|
Date of completion |
01/02/1993 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH Wewelsfleth Germany |
|
Yard number |
643 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine 1.650 kW at 1.000 rpm Starter type: Compressed air Build: 1992 Builder: Deutz MWM Motoren-Werke Mannheim AG - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 224 rpm 4 blades |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
825 kVA |
|
Generators |
1x Cummins 6BT5.9G2M main diesel generatorset 300 kVA |
|
Emergency generator |
1x Cummins NTA855G2M main diesel generatorset 86 kVA |
|
Compressed air receivers |
2x Compressed air receivers 125 litres - 30,0 bar |
|
Bow thruster |
1x Jastram 132 kW |
|
Number of cargo holds |
1 57,20 x 10,20 x 7,03 m Fully box: 48,20 m |
|
Cargo hold capacity |
Grain/Bale: 141.000 ft³ - 3.780 m³ |
|
Timer intake |
3.800 m³ |
|
Number of hatches |
1 57,60 x 10,20 m |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch cover: 1,5 t/m² |
|
Tank capacities |
Ballast: 1.332,3 m³ |
|
Anchor equipment |
2x Anchor weight: 1.590 kg each 2x Length: 412,50 m Diameter: 30 mm |
|
Crew size |
7 |
|
Manager |
Interscan Schiffahrtsgesellschaft mbH Raboisen 32 20095 Hamburg Germany |
|
Commercial operator |
H.H. Danship AS Jessens Mole 15 DK-5700 Svendborg Denmark |
|
Technical operator |
Boeckans Belgie NV Van Meterenkaai 1 2000 Antwerpen Belgium |
|
Registered owner |
Pinta Interscan Shipping GmbH & Co. KG Wewelsfleth Germany |
|
Latest data adjustment |
28 January 2020 |
