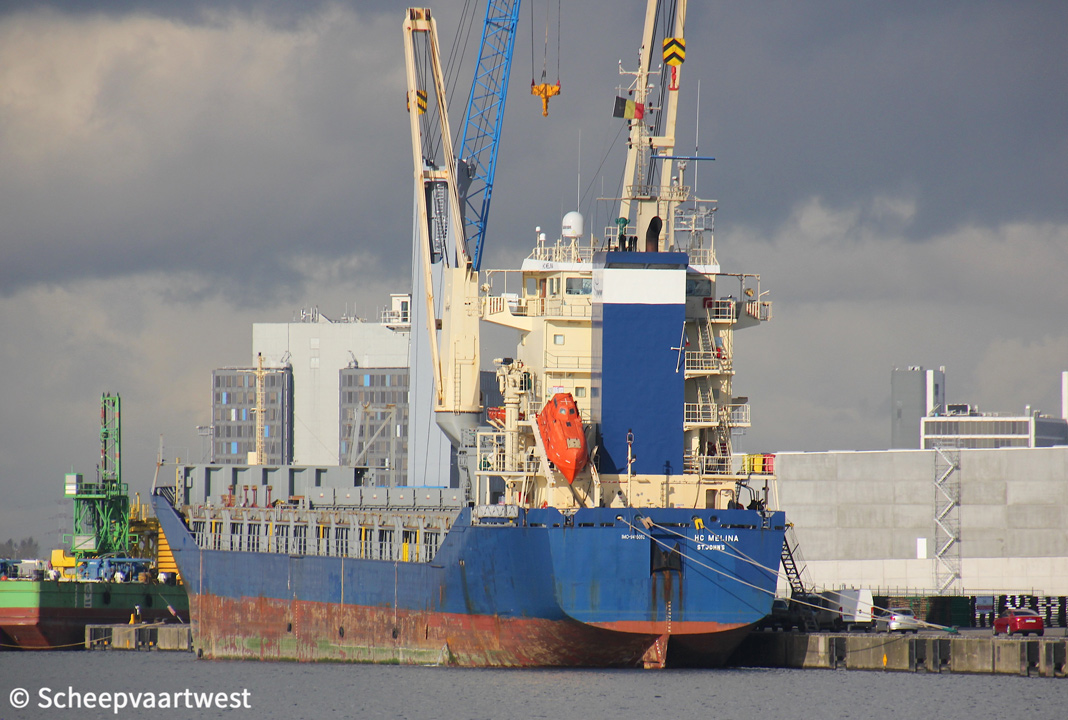

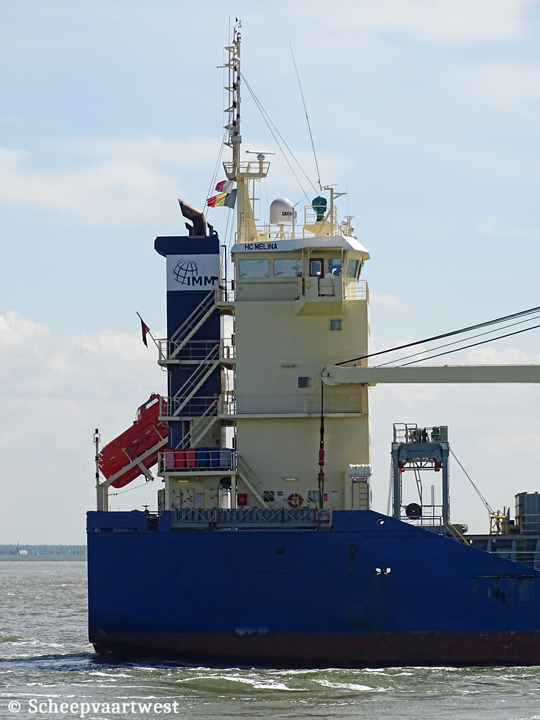

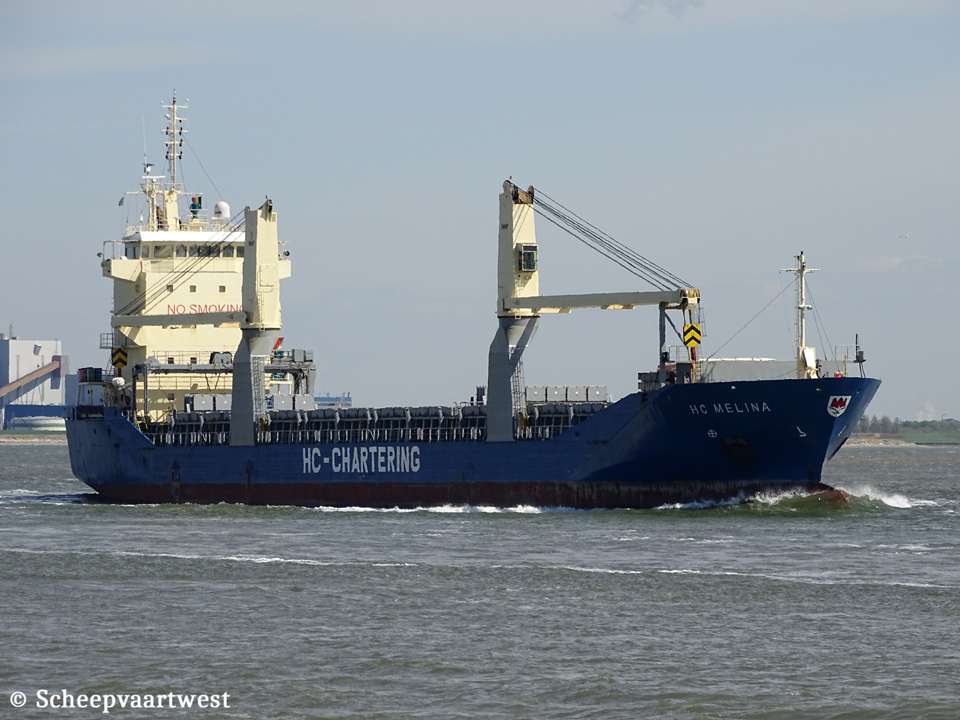

Westerschelde 01 May 2018 |
 |
 |
|
| WS 01/05/18 | Antwerpen 16/11/19 | |
|
Name |
HC MELINA |
|
Previous names |
2011 - 2011 Flinterschelde 2011 - 2011 Flinterspring |
|
Type |
Multi-purpose dry cargo ship |
|
Special loading |
Bulk cargo, heavy lift cargo, general cargo, dangerous goods and project cargo |
|
IMO-number |
9415052 |
|
Call sign |
V2FR2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
6.577 t |
|
DWT |
Summer: 9.198 t |
|
NT |
2.881 t |
|
Number of 20ft containers |
In hold: 228 On deck: 268 Total: 496 |
|
Reefer capacity |
30 |
|
Length |
129,40 m overall 122,10 m between perpendiculars |
|
Breadth |
17,00 m moulded |
|
Draught |
Summer: 7,35 m |
|
Depth |
10,00 m |
|
Speed |
Service: 14,7 knots Max: 15,2 knots |
|
Built |
2011 |
|
Builder |
The Ben Kien Shipbuilding Industry Company Hai Phong Vietnam |
|
Yard number |
9200-RSBK-02 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.438 hp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 159 rpm |
|
Shaft generator |
1x 660 kW - 440 Volt |
|
Generators |
3x Main diesel generatorset each 350 kW - 440 Volt |
|
Emergency generator |
1x Diesel generatorset 125 kW |
|
Bow thruster |
1x Tunnel thruster 500 kW / 680 bhp, forward |
|
Number of holds |
2x Boxshaped Hold 1: 25,90 x 13,50 x 10,70 m Hold 2: 52,50 x 13,50 x 10,70 m |
|
Cargo hold capacity |
Hold 1: 3.648 m³ / 128.827,9 ft³ Hold 2: 7.496 m³ / 264.718,7 ft³ Total: 11.144 m³ / 393.546,6 ft³ |
|
Floor space |
Under deck: 2.117 m² / 22.787 ft² On deck: 1.059,9 m² / 11.796,2 ft² |
|
Max permitted loads |
Weather deck: 1,75 t/m² Tweendeck: 3,50 t/m² Tanktop: 16,0 t/m² |
|
Cargo gear |
2x NMF deck cranes - SWL 80,0 t each(Starboard side) Combined: 160 t |
|
Crew size |
12 |
|
Commercial manager |
IMM Shipping GmbH & Co. KG Breite Straße 61 22767 Hamburg Germany |
|
ISM manager |
Marlow Ship Management Deutschland Breite Strasse 61 22767 Hamburg Germany |
|
Registered owner |
HC Melina Schiffahrtsgeschaft Care of IMM International Maritime Management GmbH & Co KG Hamburger Strasse 131 22926 Ahrensburg Germany |
|
Group |
Hanse Capital Gruppe |
|
Latest data adjustment |
01 December 2022 |
