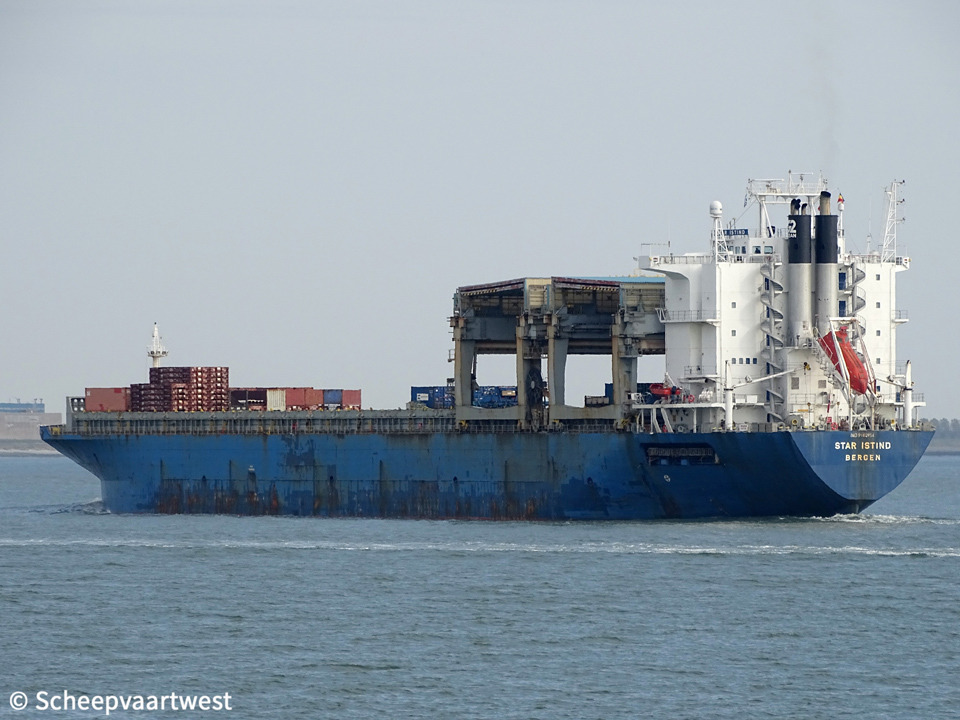

Star Istind 01

Westerschelde 15 October 2018

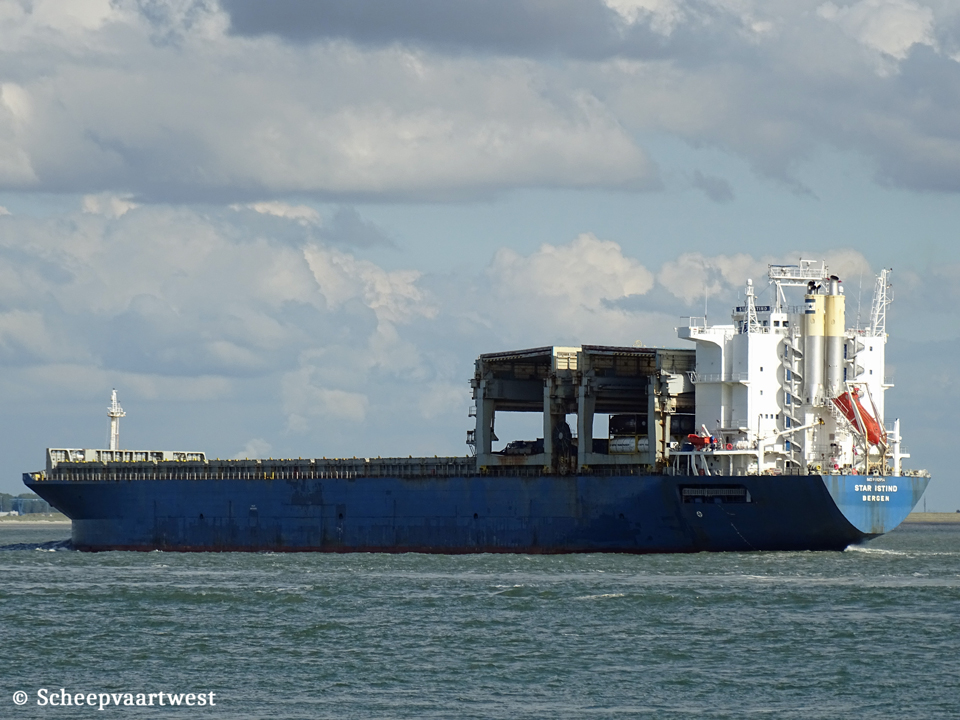

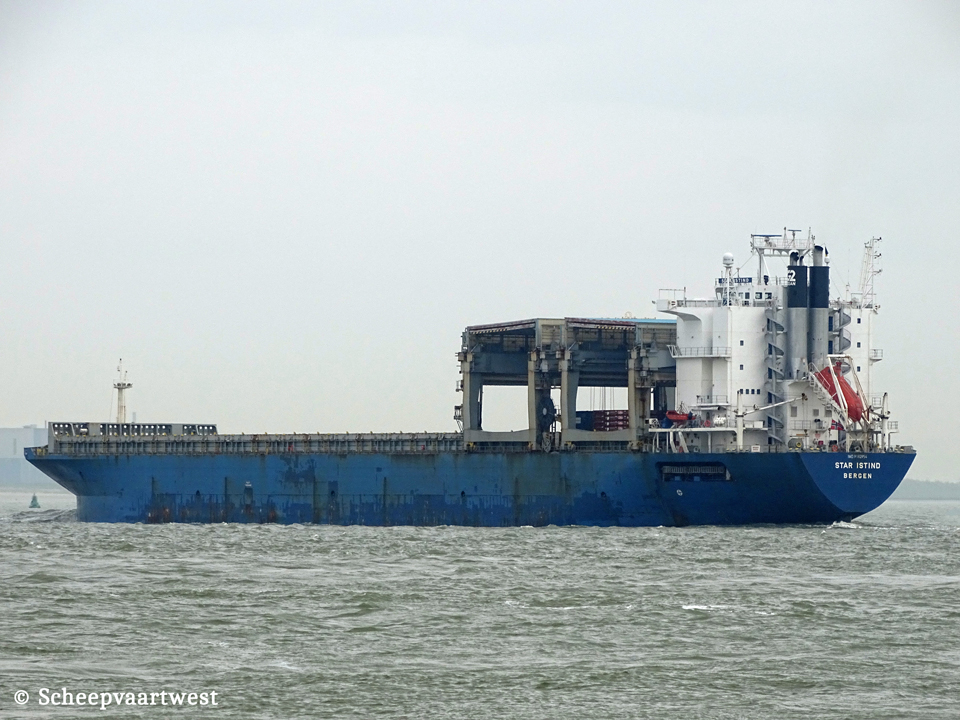

Star Istind IMO 9182954 02   Star Istind IMO 9182954 03
Westerschelde 24/04/18   Westerschelde 19/08/16


Name

STAR ISTIND

Type

Open hatch general cargo carrier - Heavycargo - Equipped for carriage of containers

Main products

Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes

IMO-number

9182954

Call sign

LAMP5

Flag

Norway

Port of registry

Bergen

GT

32.628 t

DWT

Summer: 46.428 t

NT

13.538 t

Number of 20ft containers

On hatch covers: 720

in hold: 1.350

Total: 2.070

Length

198,00 m overall

187,00 m between perpendiculars

Breadth

31,00 m moulded

Draught

Max: 12,32 m

Air draft

Max: 46,00 m

Freeboard

3.316 mm

Depth

19,00 m to main deck

Speed

Max: 16,0 knots

Eco: 14,7 knots

Super eco: 13,2 knots

Built

1999

Builder

Mitsui Engineering & Shipbuilding Co. Ltd., Tamano Works

Tamano

Japan

Yard number

1487

Hull material

Mild steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Mitsui/B&W 6S60MC - 2 stroke 6 cylinder 600 x 2.192 mm combustion engine:

MCR: 10.520 kW / 14.303 hp at 96,0 rpm

NCR: 9.470 kW / 12.875 hp at 92,7 rpm

Builder: Mitsui & Co., Ltd., Japan

Propellers

1x Screw propeller solid - aft at 96,0 rpm

Boilers

1x CHR 188,00 m² - 6,0 bar

1x CHO 22,00 m² - 6,0 bar

Generators

2x Rolls Royce KRG-8 - 4 stroke single acting 8 cylinder diesel engines each 1.370 kW at 720 rpm connected with generators each 1.300 kW / 1.625 kVA

1x Rolls Royce KRG-5 - 4 stroke single acting 5 cylinder diesel engines 760 kW kW at 720 rpm connected with generator 720 kW / 900 kVA

Emergency generator

1x Diesel generatorset 100 kVA - 80 kW - 135 hp

Builder: Mitsui Zosen Machinery & Service Inc.

Compressed air receivers

2x Main air compressors: Sperre HV2/200 - 136 m³/h capacity at 30,0 bar

1x Sperre HV2/300A - 437 m³/h capacity at 8,0 bar

1x Diesel generator cold start air compressor: SANWA S10A - 25 m³/h at 30,0 bar

Number of holds

11x Box-shaped cargo holds

Cargo holds clear opening: 26,24 x 12,30 m

Dehumidification system for all cargo holds

Cargo hold capacity

Hold 1: 4.048,8 m³ / 142.983 ft³

Hold 2: 5.510,5 m³ / 194.603 ft³

Hold 3: 6.204,4 m³ / 219.179 ft³

Hold 4: 6.204,4 m³ / 219.179 ft³

Hold 5: 6.204,4 m³ / 219.179 ft³

Hold 6: 6.204,4 m³ / 219.179 ft³

Hold 7: 6.204,4 m³ / 219.179 ft³

Hold 8: 6.204,4 m³ / 219.179 ft³

Hold 9: 6.204,4 m³ / 219.179 ft³

Hold 10: 5.722,2 m³ / 202.079 ft³

Hold 11 2.764,7 m³ / 97.635 ft³

Total: 61.491 m³ / 2.171.553 ft³

Number of hatches

11

26,64 x 12,62 m

Under deck capacity

4.841 m²

Weather deck

3.550 m²

Max permitted loads

Hatch covers: 3,60 t/m²

Tweendecks: 5,50 t/m²

Tank top hold #1: 22,0 t/m²

Tank top hold #2 - 10: 28,0 t/m³

Tank top #11: 17,0 t/m²

Tank capacities

Fuel: 2.267 m³

Cargo gear

2x Gantry cranes on deck - SWL 68,0 t

Accommodation

Aft for a total of 29 persons

Manager

Grieg Star AS

C Sundtsg 17-19

5004 Bergen

Norway

Operator

Grieg Star AS

Registered owner

Grieg International II AS

Grieg Shipping II AS

C Sundtsg 17-19

5004 Bergen

Norway

Latest data adjustment

20 August 2023
