Antwerpen 07 March 2014 |
|
Name |

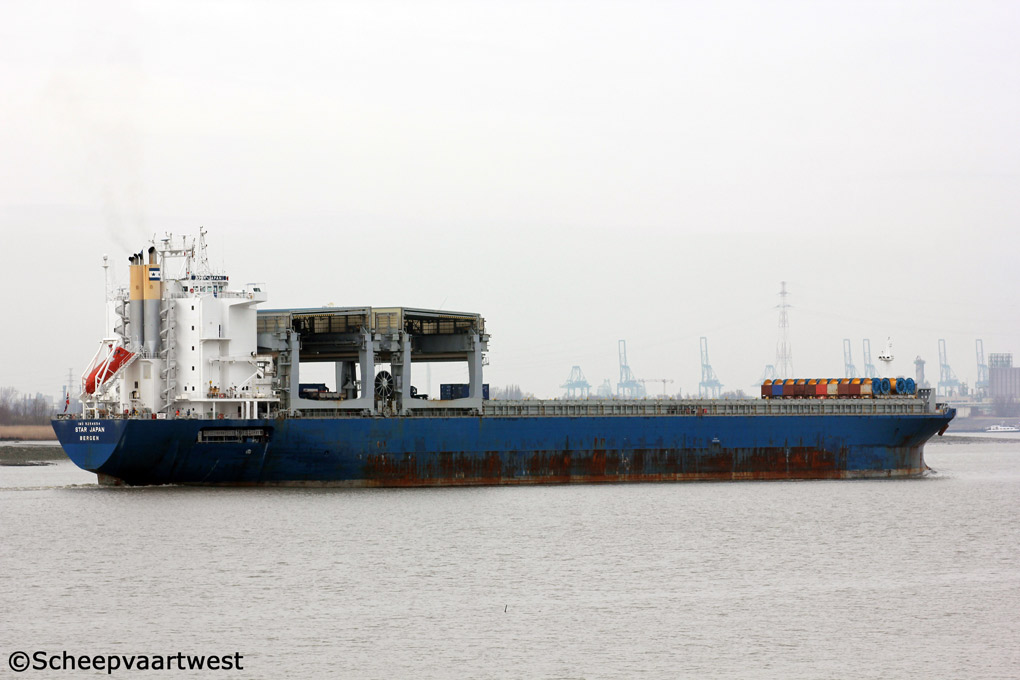

STAR JAPAN |
|
Location |
Antwerpen 07 March 2014 |
|
Type |
Open hatch general cargo carrier - Containers arranged in holds and on deck |
|
Carriage of |
Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9254654 |
|
Call sign |
LAZV5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.844 t registered |
|
DWT |
Summer: 44.837 t |
|
NT |
13.085 t registered |
|
Number of 20ft containers |
On hatch: 720 in holds: 1.350 Total: 2.070 |
|
Length |
198,00 m overall 187,00 m between perpendiculars |
|
Breadth |
31,06 m extreme |
|
Draught |
12,02 m moulded |
|
Air draft |
Max.: 46,00 m |
|
Depth |
19,00 m to main deck |
|
Speed |
16,0 knots full loaded |
|
Built |
2004 |
|
Keel laid |
27.12.2003 |
|
Launch date |
09.03.2004 |
|
Date of completion |
30.06.2004 |
|
Builder |
Mitsui Tamano Engineering & Shipbuilding Tamano |
|
Yard number |
1532 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 12 |
|
Main engine |
1x Mitsui B&W 6S60MC - 2 stroke single acting 6 cylinder - 10.520 KW at 96,0 rpm |
|
Turbo charger |
Mitsui MAN NA-57 |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler, OSAKA Boiler type OEV-120-14 Steam production: 1.200 kg/h Working pressure: 6 kg/cm² (0,59 MPa) Fuel oil consumption: 89 kg/h 1x Exhaust gas economizer, OSAKA Boiler type DC-061510-1B Steam production: 1.100 kg/h Working pressure: 6 kg/cm² (0,59 MPa) Exhaust gas amount: 84.240 kg/h Builder: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
2x Rolls Royce KRG-8 - 4 stroke single acting 8 cylinder diesel engines 1.370 kW at 720 rpm coupled with generators 1.300 kW each 1x Rolls Royce KRG-5 - 4 stroke single acting 4 cylinder diesel engine 760 kW with generators 720 kW |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset |
|
Compressed air receivers |
2x Main air compressors: SPERRE HV2/200 - 136 m³/h capacity at 30,0 bar 1x Working air compressor: SPERRE HV2/300A - 437 m³h capacity at 8,0 bar 1x Diesel generator cold start air compressor: SANWA S10A - 25 m³/h at 30,0 bar Dehumidifiers: MA 5000, semi closed, 2 x 5000 m³/h |
|
Bow thruster |
1x 2.000 bhp |
|
Stern thruster |
1x 1.000 bhp |
|
Number of holds |
11x Box-shaped cargo holds |
|
Hold capacity |
No. 1: 4.049 m³ / 142.983 ft³ No. 2: 5.511 m³ / 194.603 ft³ No. 3: 6.206 m³ / 219.179 ft³ No. 4: 6.206 m³ / 219.179 ft³ No. 5: 6.206 m³ / 219.179 ft³ No. 6: 6.206 m³ / 219.179 ft³ No. 7: 6.206 m³ / 219.179 ft³ No. 8: 6.206 m³ / 219.179 ft³ No. 9: 6.206 m³ / 219.179 ft³ No. 10: 5.722 m³ / 202.079 ft³ No. 11: 2.765 m³ / 97.635 ft Total: 61.489 m³ / 2.171.553 ft³ |
|
Number of hatches |
11 Dimension: 12,30 x 26,24 m |
|
Fresh water generator |
1x Alfa Laval JWP-28-C100 Capacity: 30 t/day |
|
Ballast capacity |
15.538 m³ |
|
Anchor equipment |
Length: 660,00 m diameter: 78 mm |
|
Cargo gear |
2 Gantry cranes- SWL 68,0 t each |
|
Accommodation |
Accommodation aft for a total of 29 persons |
|
Manager |
Grieg Star Shipping AS Bergen |
|
Operator |
Grieg star |
|
Registered owner |
Grieg Shipping II AS |
|
Latest data adjustment |
27 April 2014 |
