Westerschelde 07 April 2020 |
|
Name |

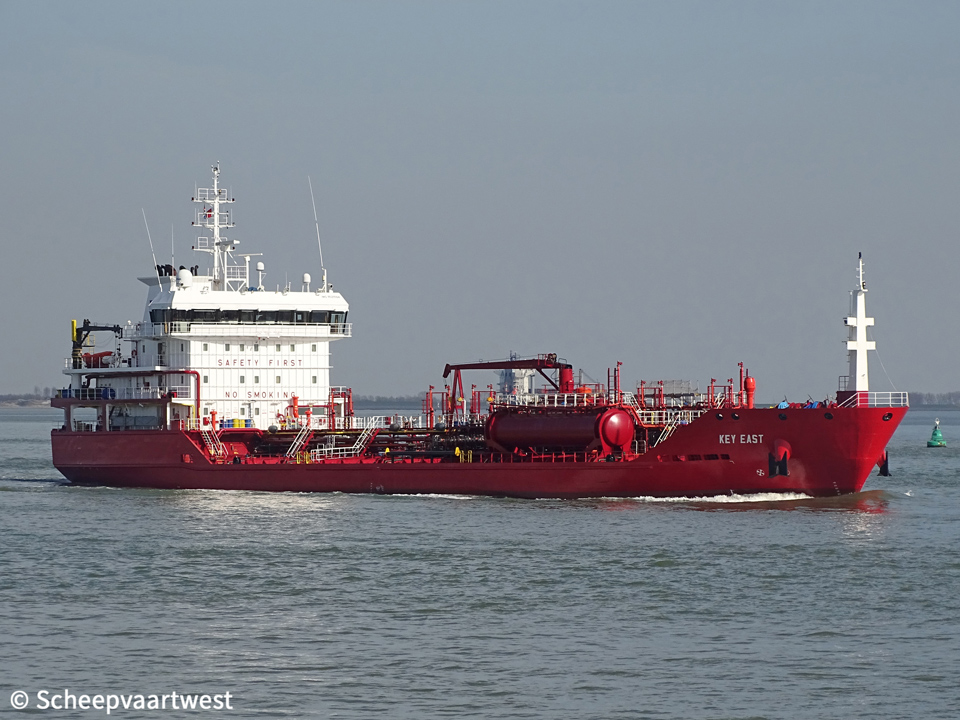

KEY EAST |
|
Previous names |
2011 - 2018 Tana |
|
Type |
Oil / chemical tanker |
|
IMO-number |
9525584 |
|
Call sign |
9HA2992 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.242 t |
|
DWT |
Summer: 6.487,6 t Winter: 6.269,7 t |
|
NT |
1.992 t |
|
Length |
109,00 m overall 103,10 m between perpendiculars |
|
Breadth |
16,80 m |
|
Draught |
6,65 m |
|
Air draft |
32,00 m |
|
Freeboard |
1.661 mm |
|
Depth |
8,30 m |
|
Speed |
Max: 14,5 knots Service: 12,0 knots |
|
Built |
2011 |
|
Date of completion |
31/11/2011 |
|
Builder |
Desan Shipyard Istanbul Turkey |
|
Yard number |
22 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 8L27/38 - 4 stroke single acting 8 cylinder 270 x 380 combustion engine 2.720 kW / 3.696 hp at 800 rpm Builder: MAN Diesel A/S- Denmark |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO S-Man AB 35,00 m² - 10,0 bar 1x CHO S-Man AB 43,00 m² - 10,0 bar |
|
Shaft generator |
1x Tunnel thruster 346 kW / 470 bhp, forward |
|
Generators |
3x MAN diesel generatorsets each 520 kVA - 416 kW / 400 Volt 60 hZ |
|
Emergency generator |
1x Diesel generatorset 125 kVA - 100 kW |
|
Bow thruster |
1x 350 kW |
|
Number of tanks |
10 |
|
Total capacity of tanks 98% |
Portside / Starboard Tank 1: 484,4 m³ / 480,5 m³ Tank 2: 737,2 m³ / 736,9 m³ Tank 3: 748,4 m³ / 749,0 m³ Tank 4: 747,6 m³ / 748,9 m³ Tank 5: 704,0 m³ / 706,8 m³ Slop: 78,0 m³ / 78,0 m³ Total: 6.999,7 m³ incl. Slop tanks |
|
Number of slop tanks |
2 |
|
Slop tanks capacity 98% |
Tank P: 78 m³ Tank S: 78 m³ Total: 156 m³ |
|
Segregation |
12 |
|
Number of pumps |
10x Cargo pumps each 200 m³/h 2x Cargo pumps each 70 m³/h |
|
Loading rate |
400 m³/h |
|
Discharging rate |
4x 220 m³/h |
|
Heating capacity |
Steam heating, max. load/discharge temp 80°C |
|
Manifolds |
Manifold to main deck: 2.136 mm Manifold to platform: 900 mm Manifold to stern: 60,00 m Manifold to bow: 49,00 m Manifold to rail: 4.557 m |
|
Tank capacities |
Fuel oil: 320,65 m³ Diesel oil: 66,65 m³ Water ballast: 2.315,99 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t |
|
Crew size |
14 |
|
Manager |
Sea Tank Chartering AS Skuteviksboder 22 N-5035 Bergen Norway |
|
Previous managers |
2011 - 2018 K Tankering & Shipmanagement, İstanbul - Türkiye |
|
Operator |
V.Ships UK LTD. |
|
Owner |
Key Tankers AS Skuteviksbodene 22 5035 Bergen Norway |
|
Previous owners |
2011 - 2018 Desan Deniz Insaat San. A.S., Istanbul - Turkey |
|
Latest data adjustment |
03 August 2020 |
