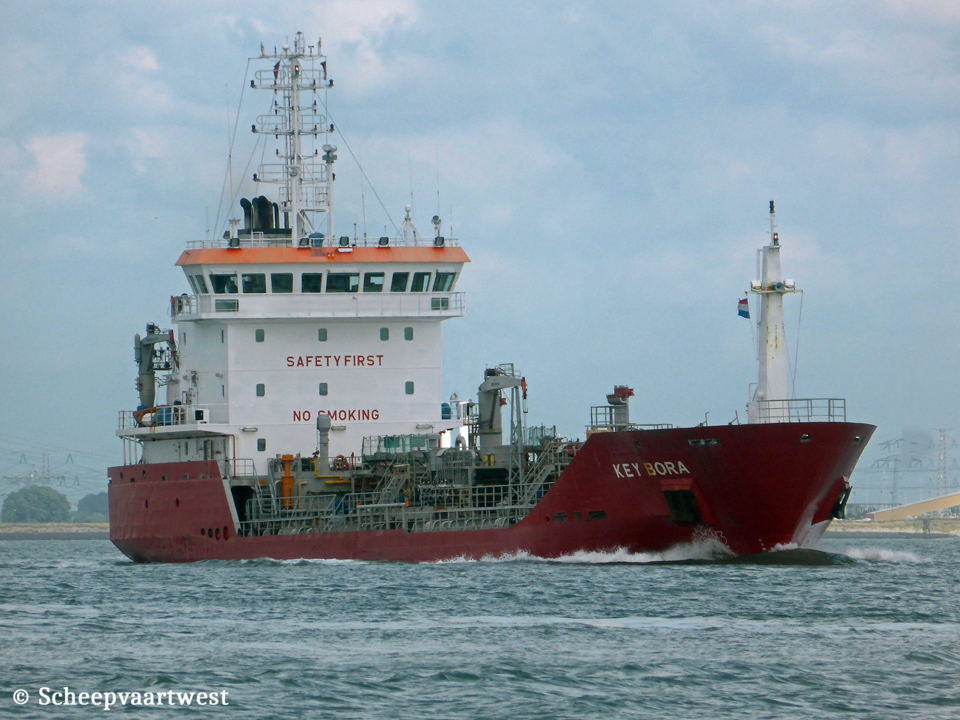

| Westerschelde 21 July 2015 |
|
Name |
KEY BORA |
|
Previous names |
2006 - 2007 Atlantis Acra 2007 - 2008 Vedrey Frame 2008 - 2013 Brøvig Bora |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9316024 |
|
Call sign |
ZDHW9 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
2.657 t |
|
DWT |
Summer: 3.502 t Winter: 3.373 t |
|
NT |
1.140 t |
|
Length |
92,86 m overall 86,65 m between perpendiculars |
|
Breadth |
14,10 m moulded |
|
Draught |
5,70 m |
|
Freeboard |
1.511 mm |
|
Depth |
7,20 m moulded |
|
Speed |
13,5 knots |
|
Build |
2006 |
|
Keel laid |
12/04/2005 |
|
Date of completion |
17/03/2006 |
|
Builder |
Celiktrans Deniz Insaat Kizaklari Ltd. Sirketi (Celiktrans Shipbuilding Co. Ltd.) Tuzla - Istanbul Turkey |
|
Yard number |
29 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.514 hp at 750 rpm Built: 2005 Builder: Caterpillar Motoren GmbH & Co. KG; Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO 49,90 m² - 10,0 bar 1x CHR 51,60 m² - 10,0 bar |
|
Shaft generator |
1x 750 kVA - 600 kW |
|
Generators |
3x Main diesel generatorsets each 400 kVA - 320 kW - 467 hp |
|
Emergency generator |
1x Diesel generatorset 138 kVA - 110 kW - 150 hp |
|
Bow thruster |
1x Fixed pitch 354,95 kW |
|
Number of tanks |
10 + 1 slop tank |
|
Cargo tank capacity 98% |
Tank 1 (P&S): 321,4 m³ / 323,4 m³ Tank 2 (P&S): 436,3 m³ / 429,0 m³ Tank 3 (P&S): 430,9 m³ / 433,0 m³ Tans 4 (P&S): 430,3 m³ / 432,9 m³ Tank 5 (P&S): 406,8 m³ / 409,2 m³ Total: 4.077,6 m³ |
|
Slop tanks capacity |
117,8 m³ |
|
Segregation |
2 valve segregation 11 |
|
Max loading rate |
600 m³/h |
|
Max discharging rate |
600 m³/h |
|
Number of pumps |
11 |
|
Cargo heating |
Maximum heating: 70°C |
|
Tank capacities |
Fuel oil: 190,7 m³ Diesel oil: 56 m³ Fresh water: 57 m³ Water ballast: 1.435 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 t |
|
Accommodation |
3 Double berth and 9 single berth cabins (incl. Hospital) with separate private facilities are provided |
|
Commercial manager |
Sea Tank Chartering AS Skuteviksboder 22 NO-5035 Bergen Norway |
|
ISM manager |
V.Ships UK Limited Glasgow United Kingdom |
|
Owner |
Key shipping AS Bergen Norway |
|
Latest data adjustment |
08 October 2024 |
