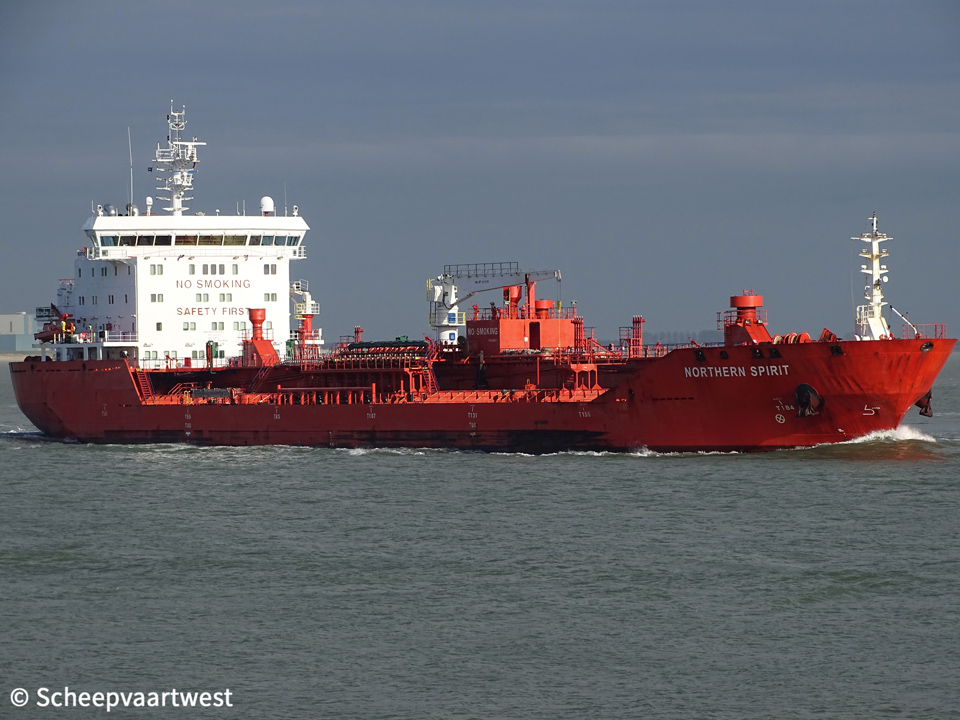

Westerschelde 02 April 2020 |
 |

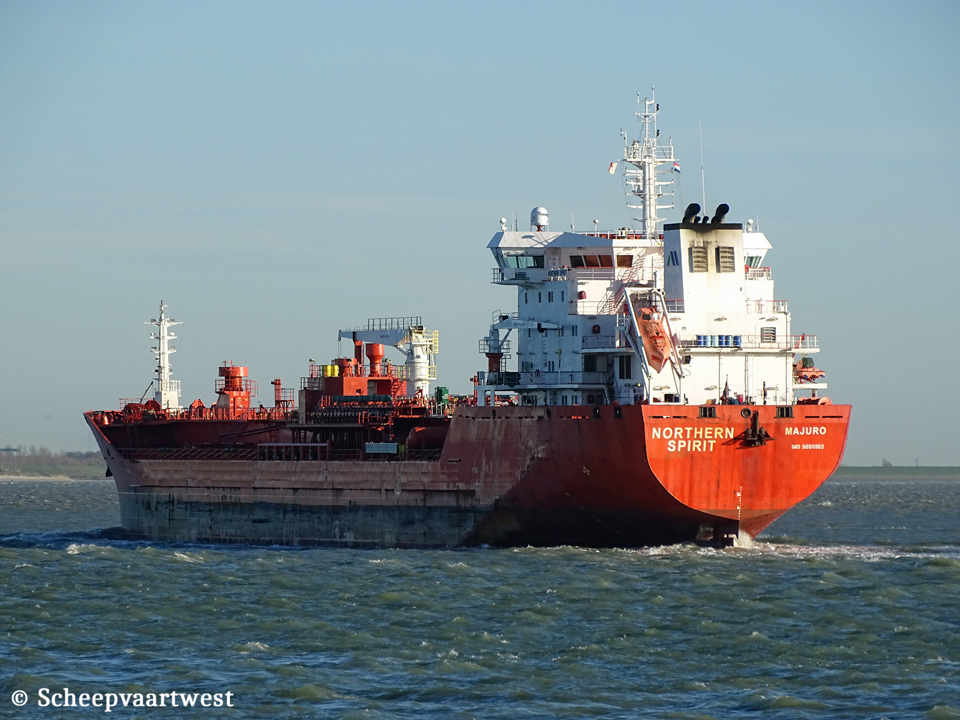

| Westerschelde 18/11/20 |
|
Name |
NORTHERN SPIRIT |
|
Previous names |
2011 - 09/2012 Osttank Norway 09/2012 - 03/2020 Adfines Sea |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9580962 |
|
Call sign |
V7A2858 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2011 - 2012 Portugal - Call sign: COKA 2012 - 03/2020 Malta, Valletta - Call sign: 9HA2981 |
|
GT |
13.239 |
|
DWT |
Summer: 19.118 t Winter: 18.517 t |
|
NT |
6.093 Suez: 14.141,58 |
|
Displacement |
Summer: 25.695 t Winter: 25.094 t |
|
Length |
161,68 m overall 150,80 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
Summer: 9,00 m Winter: 8,81 m |
|
Keel to masthead |
41,85 m |
|
Air draft |
Summer: 32,85 m Winter: 33,04 m |
|
Freeboard |
Summer: 3.412 mm Winter: 3.600 mm |
|
Depth |
12,40 m moulded |
|
Speed |
12,5 knots |
|
Built |
2011 |
|
Keel laid |
09/2009 |
|
Date of completion |
12/02/2011 |
|
Builder |
Yang Fan Shipyard Co., Ltd. Zhoushan China |
|
Yard number |
2005 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.560 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Screw propeller controllable pitch 4 blades - diameter 5.400 mm |
|
Boilers |
1x CHM 247,00 m² - 9,0 bar 1x CHO 57,00 m² - 9,0 bar |
|
Shaft generator |
1x AEM 1.875 kVA - 1.500 kW at 1.800 rpm |
|
Generators |
3x Hyundai/Himsen 5H21/32 main diesel generatorsets each 1.125 kVA - 900 kW - 1.304 hp at 1.800 rpm |
|
Emergency generator |
1x Nordhavn - Meccalte ECO 38-ISN/4 diesel generatorset 188 kVA - 150 kW - 204 hp at 1.800 rpm |
|
Main air compressor |
1x Sauer & Sohn WP45L - 62 m³/h - 30,0 bar at 1.770 rpm |
|
Bow thruster |
1x Schottel STT002CP - 800 kW @ 1.770 rpm, forward |
|
Number of tanks |
15 |
|
Total cap. of tanks 98% |
Tank 1P: 1.362,7 m³ Tank 1S: 1.358,9 m³ Tank 2P: 1.954,3 m³ Tank 2S: 1.957,4 m³ Tank 3P: 1.991,9 m³ Tank 3S: 1.987,2 m³ Tank 4P: 1.988,3 m³ Tank 4S: 1.986,8 m³ Tank 5P: 1.997,3 m³ Tank 5S: 1.989,3 m³ Tank 6P: 1.421,3 m³ Tank 6S: 1.426,5 m³ Total: 21.379,1 m³ |
|
Max rate loading |
2.100 m³/h |
|
Max rate discharging |
2.100 m³/h |
|
Max. pressure cargo line |
10,0 bar |
|
Number of segregations |
13 |
|
Cargo manifolds |
13 x 250 mm + 1 x 100 mm |
|
Cargo tanks coating |
Marine Line |
|
Cargo heating |
Framo deck heat exchanger |
|
Cargo pumps |
12x Framo cargo pumps each 300 m³/h 2x Framo cargo pumps each150 m³/h 1x Frama cargo pump 75 m³/h |
|
Tank capacities |
Fuel oil 98% : 686,4 m³ Diesel oil 98%: 75,2 m³ Fresh water 100%: 473,1 m³ Lub oil 98%: 60,2 m³ Water ballast 100%: 9.255,8 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t |
|
Crew size |
23 |
|
Manager |
ABC Maritime AG Rue Perdtemps 1 1260 Nyon Switzerland |
|
Technical operator |
ABC Maritime AG |
|
Registered owner |
McKeil International 1 Inc. |
|
Latest data adjustment |
22 December 2024 |
