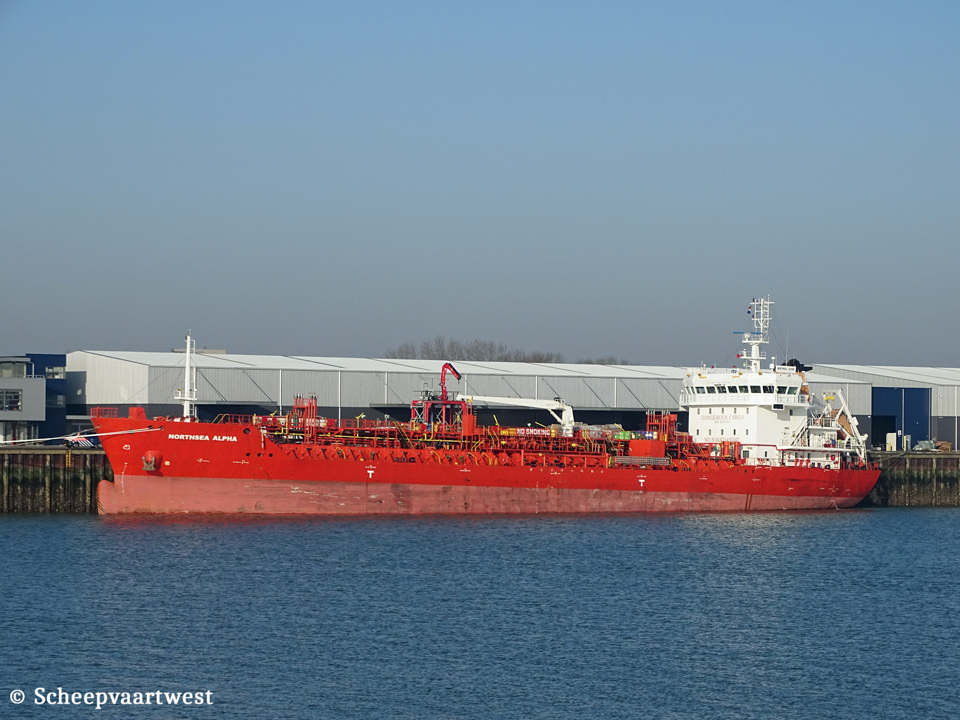

| Westerschelde 08 March 2019 |
|
Name |
NORTHSEA ALPHA |
|
Previous names |
2010 - 2010 Pyxis Alpha |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9547764 |
|
Call sign |
9HA2595 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2010 - 2010 Marshall Island, Majuro - Call sign: V7SW3 |
|
GT |
5.256 t Suez: 5.702;91 t |
|
DWT |
Summer: 8.615,0 t Winter: 8.313,3 t |
|
NT |
2.847 t Panama: 4.475 t Suez: 4.866,85 t |
|
Displacement |
Summer: 11.751,0 t Winter: 11.449,7 t |
|
Length |
110,00 m overall 105,20 m between perpendiculars |
|
Breadth |
18,60 m extreme |
|
Draught |
Summer: 7,80 m Winter: 7,63 m |
|
Keel to mast end |
48,61 m |
|
Freeboard |
Summer: 2.211 mm Winter: 2.374 m |
|
Depth |
10,01 moulded |
|
Speed |
11,2 knots |
|
Built |
2010 |
|
Delivery date |
28/05/2010 |
|
Builder |
Yangzhou Kejin Shipyard Co.,Ltd. Jiangdu China |
|
Yard number |
KJ06043 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 8L27/38 - 4 stroke 8 cylinder 270 x 380 mm combustion engine Mcr 2.700 kW at 800 rpm Manufacturer: Zhenjiang Marine Diesel Works - China |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3 x Cummins KTA19-D(M) main diesel generatorsets each 361 kW |
|
Bow thruster |
1x 385 kW |
|
Number of tanks |
10 + 2 slop tanks |
|
Capacity of each natural segregation 98% |
Seg#1: 4.138,096 m³ (1P, 1S,3P,3S, slops,slops) Seg#2: 3.765,696 m³ (2P, 2S,4P,4S) Seg#3: 1.960,349 m³ (5P, 5S) |
|
Cargo tank capacity 98% |
9.521,81 m³ excluding slop tanks |
|
Slop tank capacity 98% |
342,32 m³ |
|
Number of pumps |
3x Cargo pumps each 550 m³/h 2x Centrifugal ballast pumps each 150 m³/h |
|
Manifolds |
Bow to centre manifold: 35,75 m Stern to centre manifold: 56,50 m Distance bridge front to centre of manifold: 38,30 m |
|
Lifting equipment |
1x Cargo handling crane - SWL 5,0 t |
|
Crew size |
17 |
|
Commercial manager |
Pyxis Maritime Corp. 59, Konstantinou Karamanli Street Marousi, 151 25 Athens Greece |
|
ISM managers |
ITM Holding Ltd. Office 809, Executive Heights, DAMAC Building Dubai United Arab Emirates |
|
Registered owner |
Secondone Corp. Ltd., Valletta - Malta Care of Pyxis Maritime Corp. 59, Konstantinou Karamanli Street Marousi, 151 25 Athens Greece |
|
Renamed |
02/2022 Marine Hercules republic of Singapore, Singapore City - Call sign: 9V7755 Owner: Hercules Tankers Pte. Ltd. Manager: V-Bunkers Tankers Pte Ltd. |
|
Latest data adjustment |
11 November 2022 |
