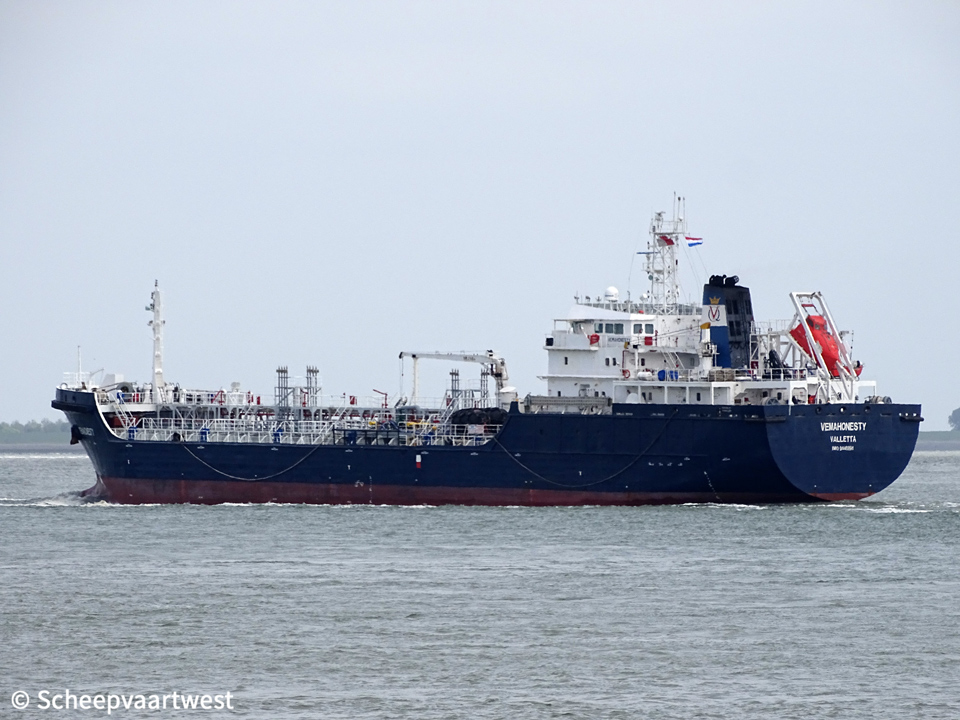

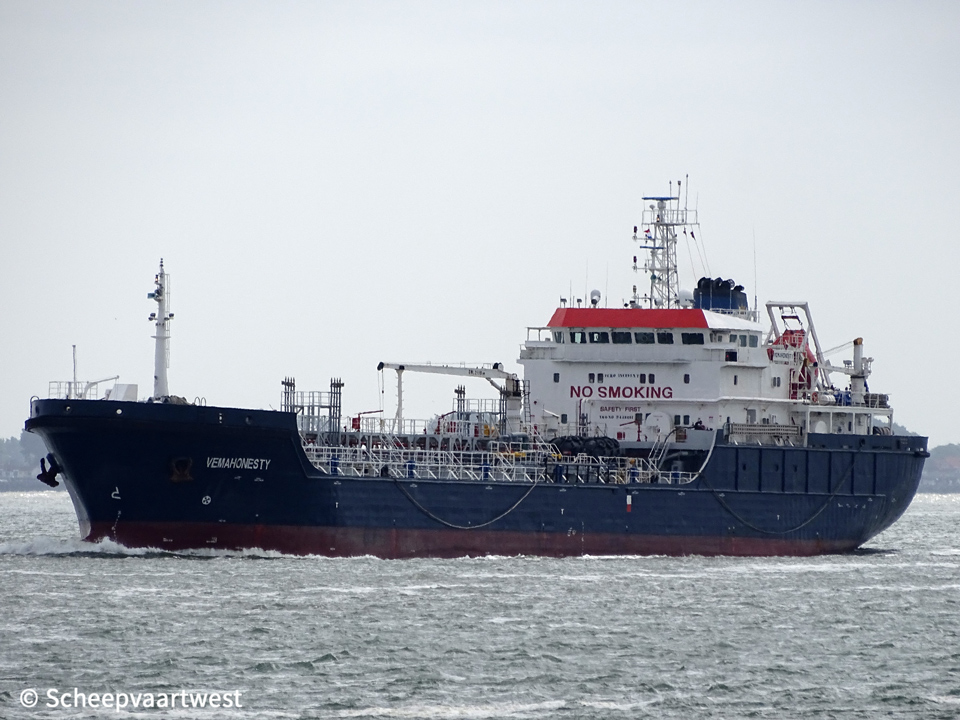

Westerschelde 18 May 2018 |
 |
| Westerschelde 18/05/18 |
|
Name |
VEMAHONESTY |
|
Previous names |
2009 - 2014 Sophia 2014 - 2015 Sophia III 2015 - 2017 Ganga 2017 - 2017 Sophia III |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9448891 |
|
Call sign |
9HA4694 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2009 -2014 Marshall islands, Majuro - call sign: V7LV2 2014 - 2015 Republic of Panama, Panama City - Call sign: 3END4 2015 - 2017 Liberia, Monrovia - Call sign: D5IY2 |
|
GT |
5.034 t |
|
DWT |
Summer: 6.388,2 t Winter: 6.171,7 t |
|
NT |
1.686 t Suez: 4.211,6 t |
|
Displacement |
Summer: 9.158,4 t Winter: 8.941,9 t |
|
Length |
99,60 m overall 94,00 m between perpendiculars |
|
Breadth |
18,00 m extreme |
|
Draught |
Summer: 6,51 m Winter: 6,38 m |
|
Keel to masthead |
29,55 m |
|
Air draft |
Lightship: 27,28 m Normal ballast: 25,36 m At loaded summer deadweight: 23,04 m |
|
Freeboard |
Summer: 3.111 mm Winter: 3.246 mm |
|
Depth |
9,60 m moulded |
|
Speed |
11,9 knots |
|
Built |
2009 |
|
Date of completion |
10/04/2009 |
|
Builder |
Zhenjiang Sopo Shipbuilding Co., Ltd. China |
|
Yard number |
SP09 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 9M25C - 2 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 710 rpm Builder: Caterpillar Motoren, GmbH & Co., KG - Germany |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHO Aalborg-License 8,00 m² / 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 360 kW |
|
Bow thruster |
1x 250 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity 98% |
NO.1 (P+S): 649,05 m³ NO.2 (P+S): 1.223,04 m³ NO.3 (P+S): 1.279,29 m³ NO.4 (P+S): 1.279,29 m³ NO.5 (P+S): 1.279,29 m³ NO.6 (P+S): 1.279,29 m³ Slop (P+S): 320,17 m³ Total excluding slop tanks: 6.989,15 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
320,17 m³ |
|
Pumps |
2x W8-4ZK-144Z3 cargo pumps each 750 m³/h 1x W7T.2ZK-112Z1 cargo pumps 300 m³/h 2x 200CWZ1-15 ballast pumps each 300 m³/h |
|
Manifolds |
Bow to centre manifold: 50,30 m Stern to centre manifold: 41,80 m Distance bridge front to centre of manifold: 22,29 m Distance between cargo manifold centres: 1,50 m Distance ships rail to manifold: 2,70 m Distance manifold to ships side: 2,75 m Top of rail to centre of manifold: 600 mm Distance main deck to centre of manifold: 1,80 m |
|
Tank capacities |
MDO: 293,1 m³ MGO: 130,9 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t on main deck 1x Crane - SWL 1,0 t aft port side |
|
Manager |
Queensway Navigation Co Ltd. 373, Andrea Syngrou Avenue Athens Greece |
|
Operator |
Transocean Singapore Pte Ltd. 36 Craig Rd, Singapore Republic of Singapore |
|
Registered owner |
Sea Baltic Maritime Ltd. Malta |
|
Latest data adjustment |
05 September 2020 |
