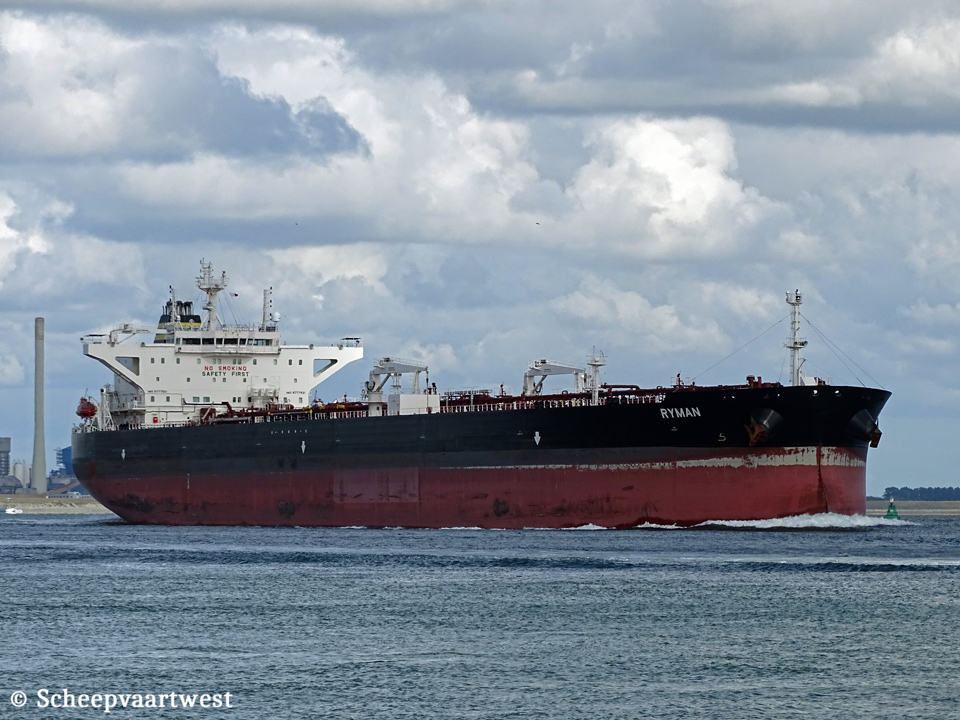

Ryman IMO 9777931 03

Westerschelde 08 July 2019

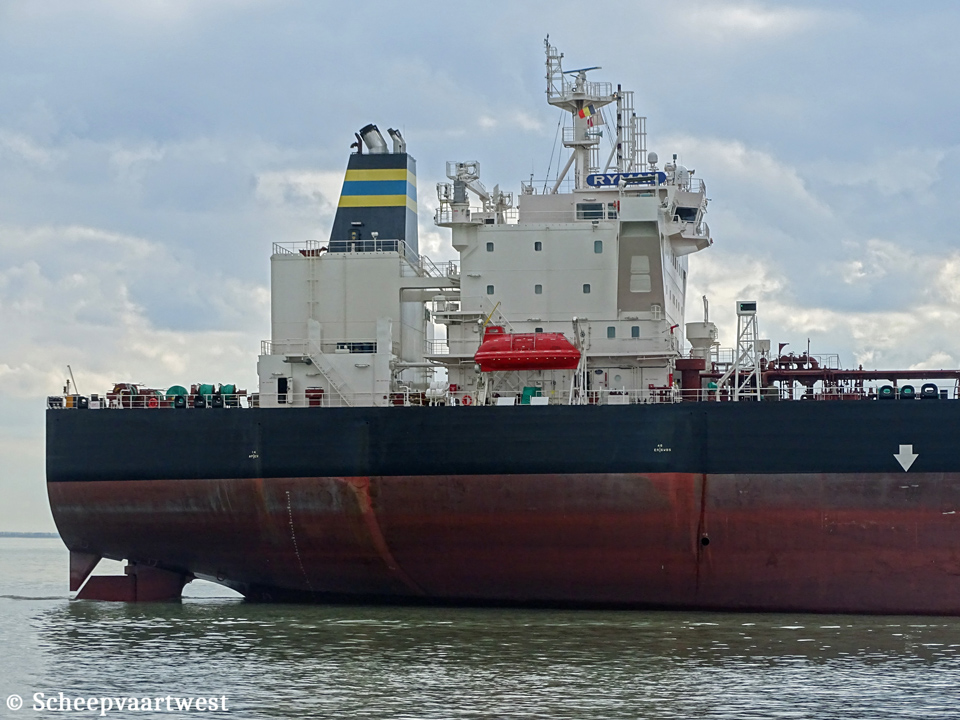

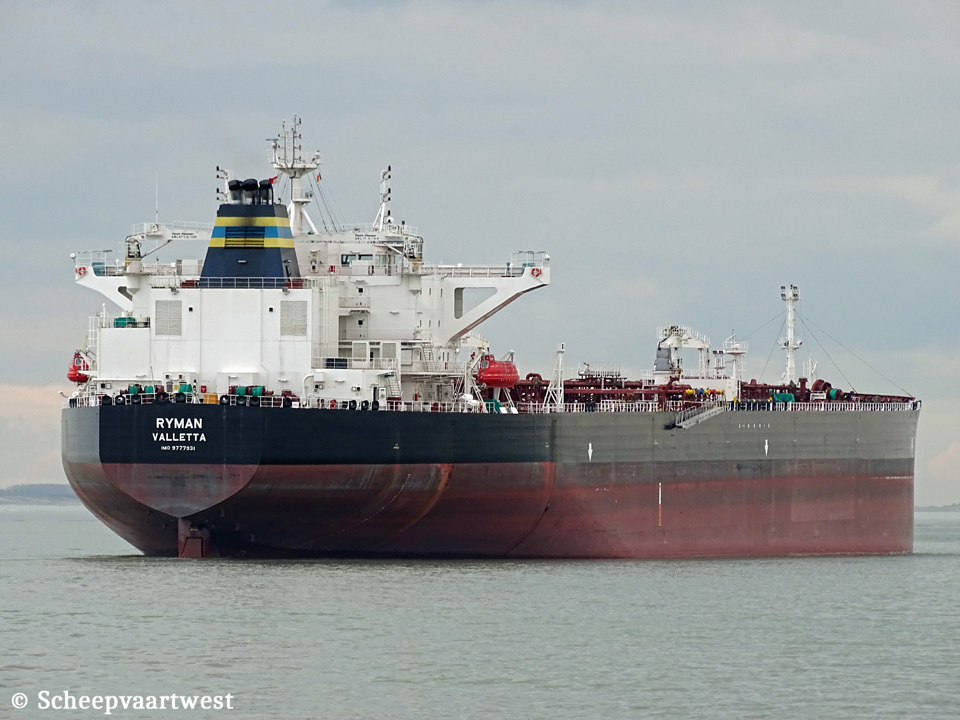

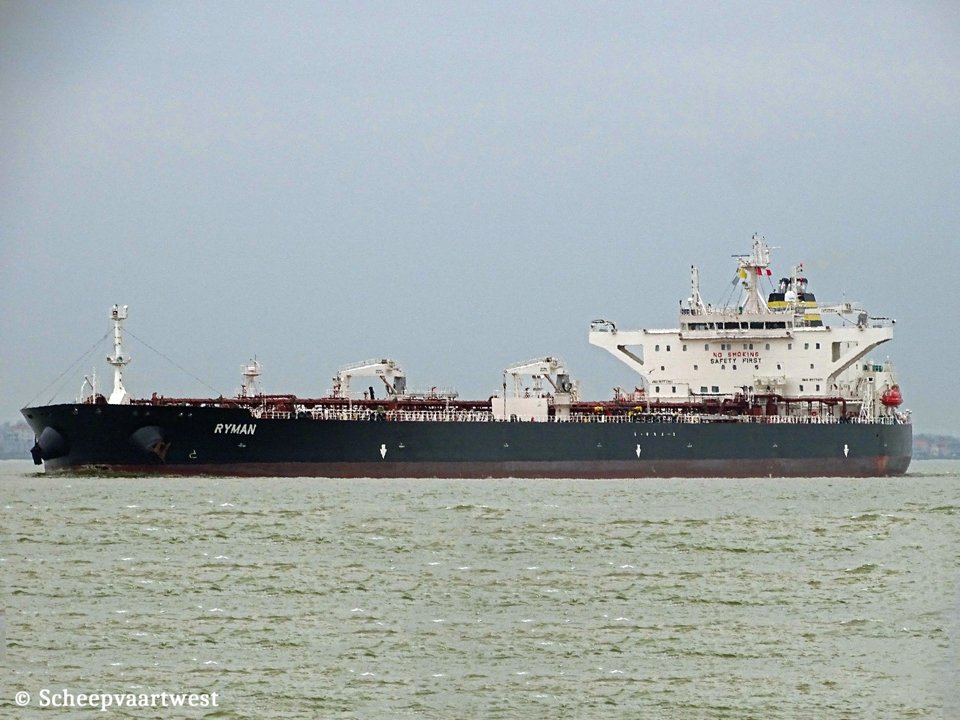

Ryman IMO 9777931 02   Ryman IMO 9777931 01   Ryman IMO 9777931 04
Westerschelde 06/03/18 Westerschelde 06/03/18   Westerschelde 04/03/18


Name

RYMAN

Type

Crude oil tanker

IMO-number

9777931

Call sign

9HA4401

Flag

Malta

Port of registry

Valletta

GT

61.468 t

Suez: 63.388,15 t

DWT

Summer: 112.870,1 t

NT

35.718 t

Suez: 57.500,43 t

Panama: 50.513 t

Displacement

133.217,7 t

Light ship

20.388 t

Length

249,87 m overall

243,00 m between perpendiculars

Breadth

43,80 m extreme

Draught

Summer: 15,12 m

Keel to mast end

43,38 m

Freeboard

6.119 mm

Depth

21,20 m moulded

Speed

14,5 knots

Built

2017

Keel laid

29/12/2015

Launch date

24/01/2017

Delivery date

17/05/2017

Builder

Samsung Heavy Industries co., Ltd.

80 Jangpyeong 3-Ro, Geoje-Si

Gyeongsangnam-Do, 53261

South Korea

Yard number

SN2165

Hull material

Steel

Hull type

Double hull

Main engine

1x Hyundai/MAN- B&W 6G60ME-C9.5 - 2 stroke 6 cylinder 600 x 2.790 mm combustion engine Mcr 14.280 kW / 19.415 hp at 86,2 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler Mission OL (Aalborg OL) Standard - 18,0 MPa

1x Auxiliary boiler Mission OL (Aalborg OL) Inverted - 18,0 MPa

1x Composite boiler Aalborg OC-TCi - 9,0 MPa

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 1.000 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12x Port & Starboard + 2 slop tanks

Cargo tank capacity 98%

127.614 m³

Number of pumps

3x Cargo pumps each 3.000 m³/h

Tank capacities

Fresh water: 412,70 m³

Lub oil: 191,90 m³

Ballast: 39.556,10 m³

Fuel oil: 2.520,30 m³

Diesel oil: 471,80 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane with personnel lifting (Port) - SWL 15,0 t

1x Hose handling crane with personnel lifting (Starboard) - SWL 15,0 t

1x Provision Crane (Port) - SWL 4,0 t

1x Provision Crane (Starboard) - SWL 1,0 t

Manufacturer: Tech Flower Co., Ltd.

Crew

17

ISM & commercial manager

TMS Tankers Ltd.

109, Kifisias Avenue & Sina Street

Marousi, 151 24 Athens

Greece

Registered owner

Levante Owners Inc.

Care of TMS Tankers Ltd.

109, Kifisias Avenue & Sina Street

Marousi, 151 24 Athens

Greece

Latest data adjustment

11 June 2024
