Westerschelde 06 July 2020 |
|
Name |

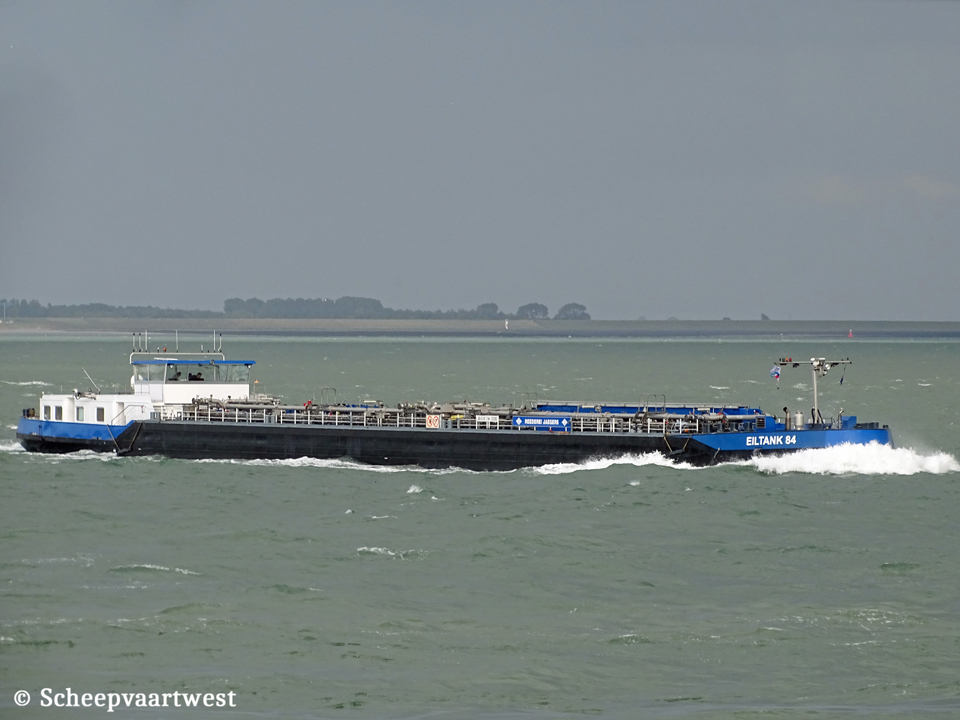

EILTANK 84 |
|
Previous names |
2009 - 2020 Iris |
|
Type |
Inland tanker |
|
ENI-number |
02332983 |
|
Call sign |
DA6564 |
|
Flag |
Germany |
|
Port of registry |
Duisburg |
|
Tonnage |
1.644 t |
|
Length |
86,00 m |
|
Breadth |
9,64 m |
|
Draught |
3,10 m |
|
Depth |
4,68 m |
|
Built |
2009 |
|
Builder casco |
Chvaletice Shipyard Chvaletice Czech Republic |
|
Builder completion |
De Toekomst B.V. Waspik The Netherlands |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar C32 Acert electronic combustion engine 745 kW / 1.014 hp at 1.800 rpm |
|
Gearbox |
1x Masson Marine type MM W4400 - reduction 5,542:1 |
|
Propellers |
1x Propeller 5 blades - Diameter 1.650 mm |
|
Generators |
1x Cummins QSX 15C diesel engine connected with Marathon 572 PSL 4028 generator for bow thruster and cargo pumps 450 kVA 2x Cummins 4BT 3.9G4 diesel engines connected with Marathon 362 CSL 1604 generators each 65 kVA |
|
Bow thruster |
1x Cummins van Wijk type SD 900 A - 535 hp |
|
Cargo tank capacity |
1.825 m³ |
|
Number of pumps |
2x Bornemann EPS200 cargo pumps each 210 m³/h connected with electro motor 98 kW 2x Bornemann EPS25 pumps each 25 m³/h connected with electro motor each 7,5 kW |
|
Owner |
Reederei Jaegers GmbH Königstraße 88 47198 Duisburg Germany |
|
Previous names & owners |
2010 - 2020 iris - BBL Shipping BV, Nijmegen - The Netherlands |
|
Latest data adjustment |
16 May 2021 |
