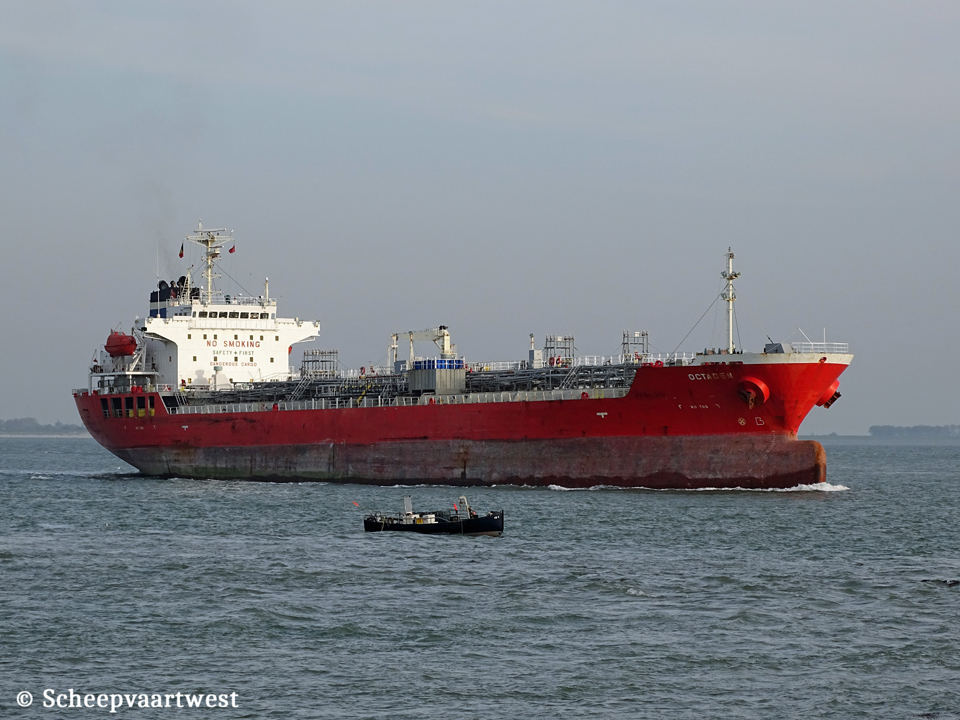

Westerschelde 31 October 2019 |
 |
| Westerschelde 31/10/19 |
|
Name |
OCTADEN |
|
Previous names |
2007 - 01/2011 Bow Octavia 01/2011 - 07/2012 AS Octavia |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9340477 |
|
Call sign |
DYPZ |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
GT |
11.570 t Suez: 12.223,72 t |
|
DWT |
Summer: 19.983,17 t Winter: 19.405,74 t |
|
NT |
6.052 t Suez: 10.783,72 t Panama: 9.734,00 t |
|
Displacement |
Summer: 25.192,92 t Winter: 24.615,49 t |
|
Length |
145,53 m overall 137,00 m between perpendiculars |
|
Breadth |
23,73 m |
|
Draught |
Summer: 9,68 m Winter: 9,47 m |
|
Keel to masthead |
37,24 m |
|
Air draft |
Summer deadweight: 27,56 m Normal ballast: 30,78 m Lightship: 35,02 m |
|
Freeboard |
Summer: 3.704 mm Winter: 3.910 mm |
|
Depth |
13,35 m moulded |
|
Speed |
Ballast speed: 14,0 knots/ Economic: 12,5 knots Laden speed: 13,5 knots/ Economic: 12,0 knots Max: 15,5 knots |
|
Built |
2007 |
|
Date of completion |
01/06/2007 |
|
Builder |
Usuki Shipyard Co., Ltd. Usuki Japan |
|
Yard number |
1703 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi/MAN-B&W- - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.356 hp at 136,0 rpm Builder: Hitachi Zosen Corporation Innoshima Works, Innoshima - Japan |
|
Propellers |
1x Screw propeller solid- aft at 136,0 rpm |
|
Boilers |
1x CHO Aalborg 161,70 m² 1x CHR Aalborg 151,00 m² |
|
Generators |
3x Yanmar main diesel generatorsets each 575 kVA - 460 kW - 924 hp |
|
Emergency generator |
1x Diesel generatorset 65 kVA - 52 kW - 111 hp |
|
Bow thruster |
1x 826 bhp |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity |
21.012 m³ |
|
Number of pumps |
20x Centrifugal cargo pumps each 250 m³/h 2x Centrifugal ballast pumps each 300 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 45,69 m Bow to centre manifold: 73,43 m Stern to centre manifold: 72,10 m Distance between cargo manifold centres: 390 mm Distance ships rail to manifold: 4.100 mm Distance manifold to ships side: 3.500 mm Top of rail to centre of manifold: 1.000 mm Distance main deck to centre of manifold: 2.000 mm Spill tank grating to centre of manifold: 700 mm |
|
Tank capacities |
Fuel oil: 1.086,62 m³ Diesel oil: 83,10 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Technical operator |
Victoria Ship management Inc. 19th Flr, Nihonbashi 1-Chome Bldg 1-4-1, Nihonbashi, Chuo-Ku Tokyo,103-0027 Japan Japan |
|
Commerical operator |
Hansa tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Registered owner |
Sagana Shipping Inc. RCM Bldg.,1418 San Marcelino Street,Ermita Manila Philippines |
|
Disponent owner |
Hansa tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Latest data adjustment |
12 June 2019 |
