Westerschelde 30 December 2018 |
 |
 |
|
| Westerschelde 30/12/18 | Westerschelde 30/12/18 | |
|
Name |

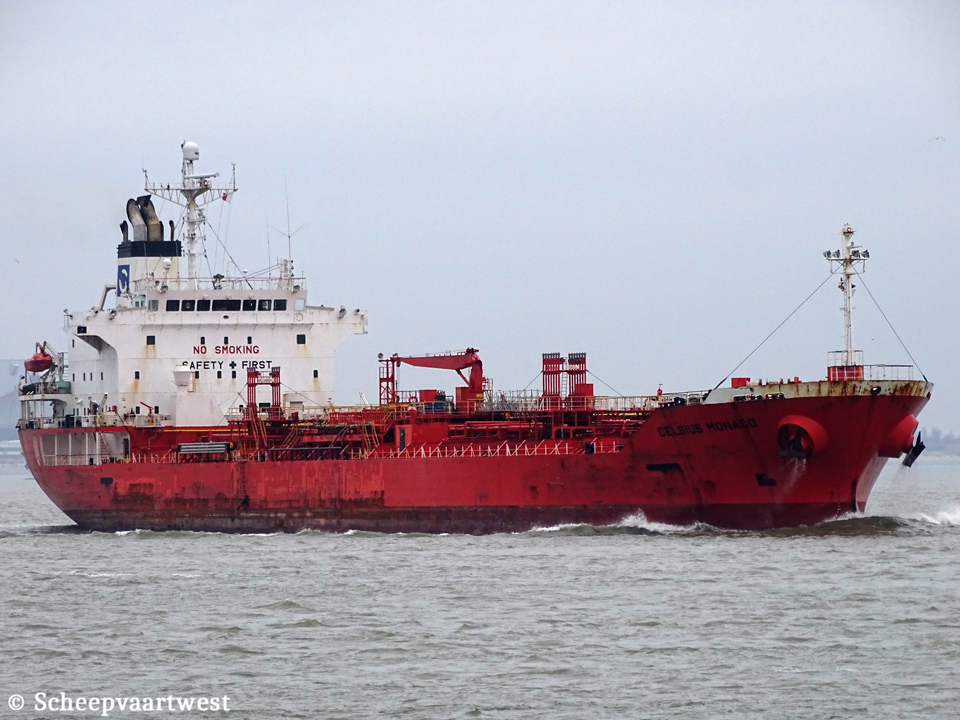

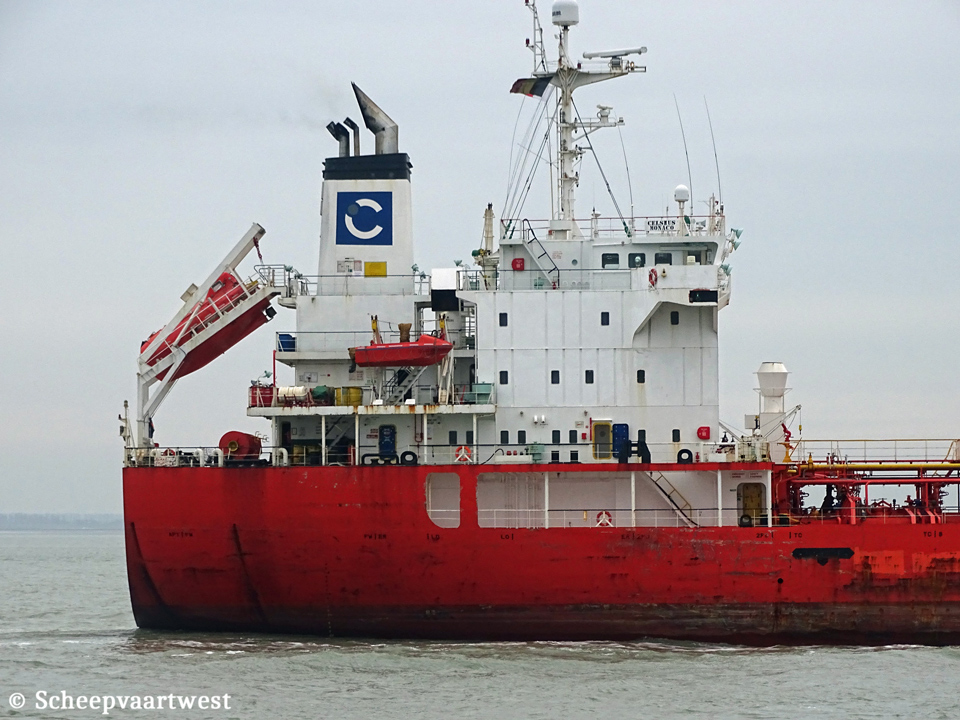

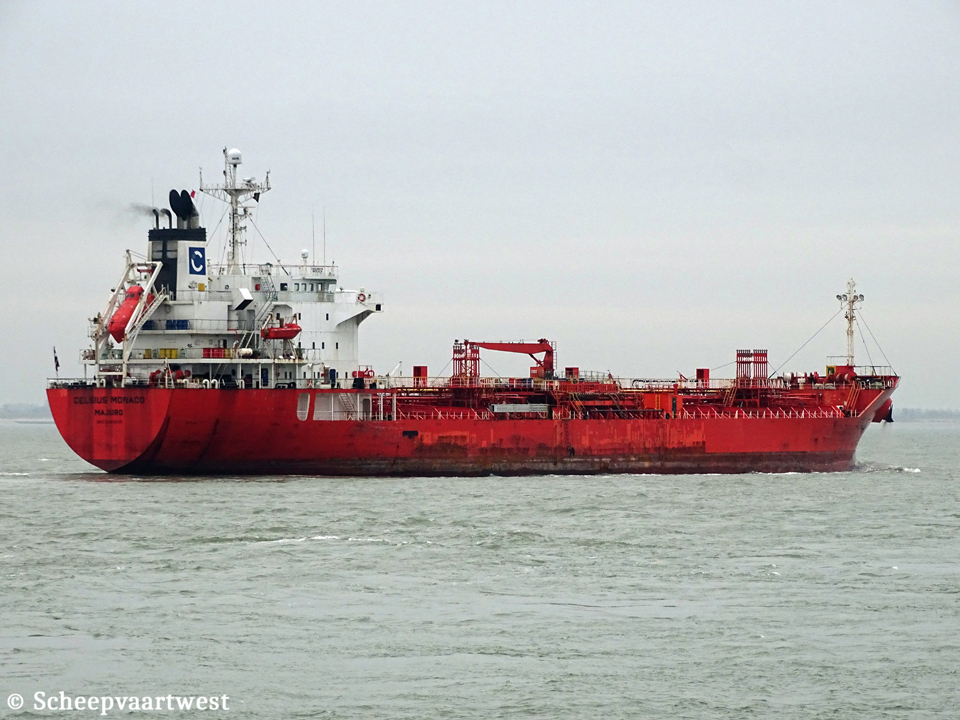

CELSIUS MONACO |
|
Previous names |
2005 - 06/2013 Bow Rio |
|
Type |
Chemical carrier |
|
IMO-number |
9309629 |
|
Call sign |
V7BF2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2005 - 2013 Hong Hong - Call sign: VRBL7 |
|
GT |
11.986 t registered |
|
DWT |
Summer: 19.999 t |
|
NT |
6.014 t registered |
|
Length |
147,83 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,42 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,80 m |
|
Registered L x B x D |
141,21 x 24,20 x 12,80 m |
|
Freeboard |
Summer: 3.427 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Service: 14,8 knots Max: 17,0 knots |
|
Built |
2005 |
|
Keel laid |
14/12/2004 |
|
Launch date |
13/07/2005 |
|
Date of completion |
18/11/2005 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Higashihiroshima Japan |
|
Yard number |
5316 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 7UEC45LA - 2 stroke single acting 7 cylinder 450 x 1.350 mm combustion engine 6.230 kW / 8.470 hp at 158,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 400 mm |
|
Propellers |
1x Fixed pitch propeller- aft at 158 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 MPa Evaporation: 16,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 300 eKW |
|
Bow thruster |
1x 515 kW |
|
Cargo tank capacity |
Liquid: 21.850 m³ |
|
Slop tank capacity |
1.218 m³ |
|
Number of pumps |
20x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 1.051 m³ diesel oil: 90 m³ Fresh water: 302 m³ |
|
Crew |
19 |
|
Manager |
Fleet Management Ltd. Hong Kong |
|
Operator |
Celsius Shipping Phillip Heymans Alle 29 Dk-2900 Hellerup Denmark |
|
Registered owner |
Stainless 2 Ltd. Marshall islands |
|
Latest data adjustment |
25 June 2021 |
