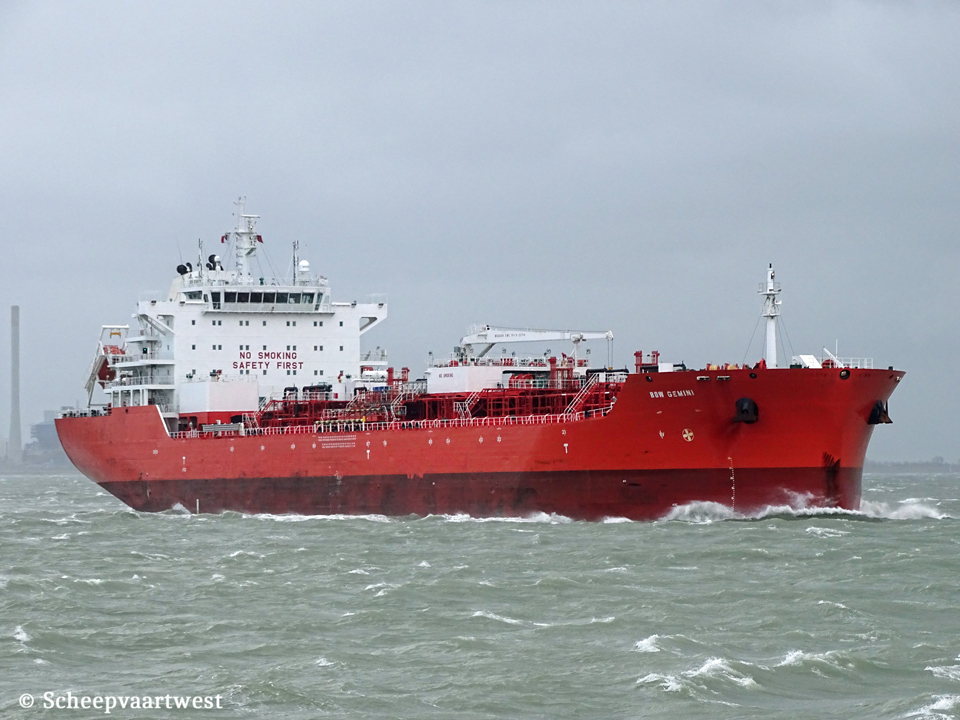

Bow Gemini IMO 9752034 01

Westerschelde 21 December 2018

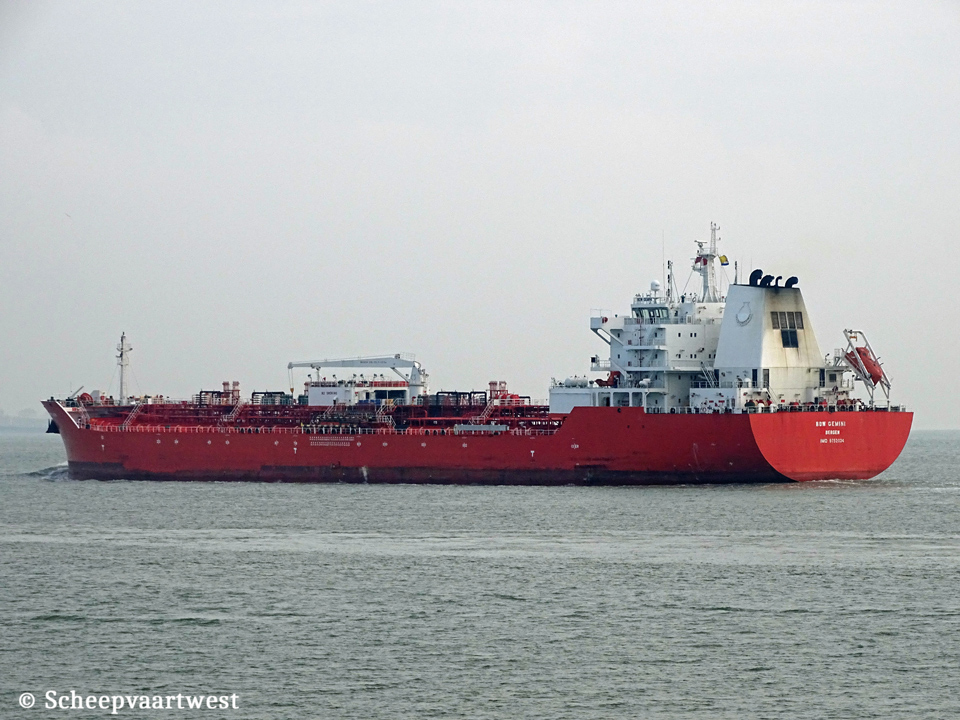

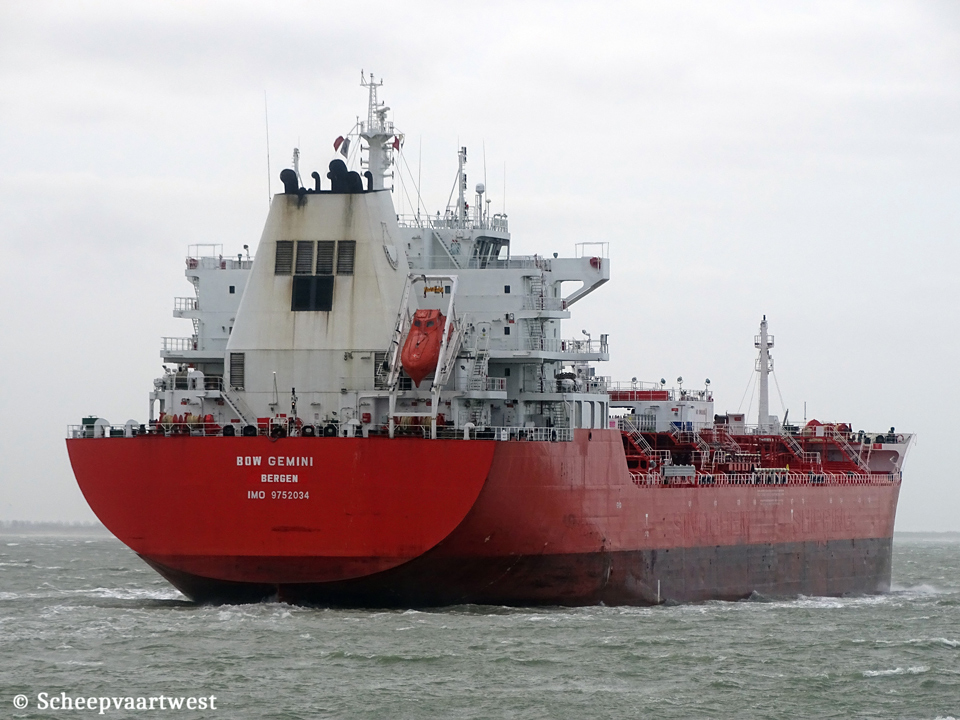

Bow Gemini IMO 9752034 02   Bow Gemini IMO 9752034 03
Westerschelde 21/12/18 Westerschelde 12/12/18


Name

BOW GEMINI

Previous names

2017 - 2018 SC Gemini

Type

Oil and chemical carrier

IMO-number

9752034

Call sign

LACQ6

Flag

Norway

Port of registry

Bergen

Previous flags

2017 - 2018 Hong Kong - Call sign: VRQL7

GT

26.364 t registered

DWT

40.895,41 t

NT

11.416 t registered

Length

182,80 m overall

177,31 m between perpendiculars

Breadth

32,02 m moulded

Draught

Summer: 11,09 m

Keel to mast end

46,59 m

Freeboard

4.615 mm

Depth

15,70 m moulded

Speed

Service: 12,0 knots

Max: 14,5 knots

Built

2017

Keel laid

19/11/2015

Delivery date

17/01/2017

Builder

Jiangsu Hantong Wing Heavy Industry Co. Ltd.

Nantong

China

Yard number

HT-CT38-004

Hull material

Forged steel

Hull type

Double hull

Watertight bulkheads

17

Continuous decks

1

Main engine

1x MAN-B&W/Hyundai 6S50ME-B9.5 - 2 stroke single acting 6 cylinder 500 x 1.910 mm combustion engine 7.610 kW / 10.347 hp at 104,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Fixed pitch propeller- aft at 104,0 rpm

Boilers

2x Auxiliary oil fired boiler - 8,5 bar

Manufacturer: Miura Co., Ltd. - Japan

1x Auxiliary composite boiler - 8,0 bar

Manufacturer: Jiangyin Sanjie Industry Co., Ltd.

Generators

3x Yanmar 6EY22ALW - 4 stroke 6 cylinder 220 x 320 mm diesel engines each 1.100 kW coupled with generators each 1.000 kW - 450 Volt 60 Hz

Bow thruster

1x Tunnel thruster 1.084 kW / 1.474 bhp, forward

Number of cargo tanks

30

Cargo tank capacity

100%: 43.847,32 m³

98%: 42.820 m³

Number of tanks

Fuel oil: 13

Ballast: 13

Lubricating oil: 7

Fresh water: 6

Sludge :4

Waste water :3

Diesel oil: 3

Chain: 2

Sewage: 1

Hydraulic oil: 1

Tank capacities

Diesel Oil: 92,4 m³

Freshwater: 1.308,2 m³

Fuel Oil: 1.950,8 m³

Hydraulic Oil: 11,7 m³

Lube Oil: 152,2 m³

Tank Ballast: 15.448,3 m³

Number of pumps

16x Cargo pumps each 220 m³/h

14x Cargo pumps each 330 m³/h

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision monorail crane - SWL 4,0 t

ISM & commercial manager

Odfjell Management AS

Conrad Mohrs Veg 29

5072 Bergen

Norway

Registered owner

FPG Shipholding - Republic of Panama

Care of Odfjell Management AS , Conrad Mohrs veg 29

5072 Bergen

Norway

Latest data adjustment

17 December 2021
