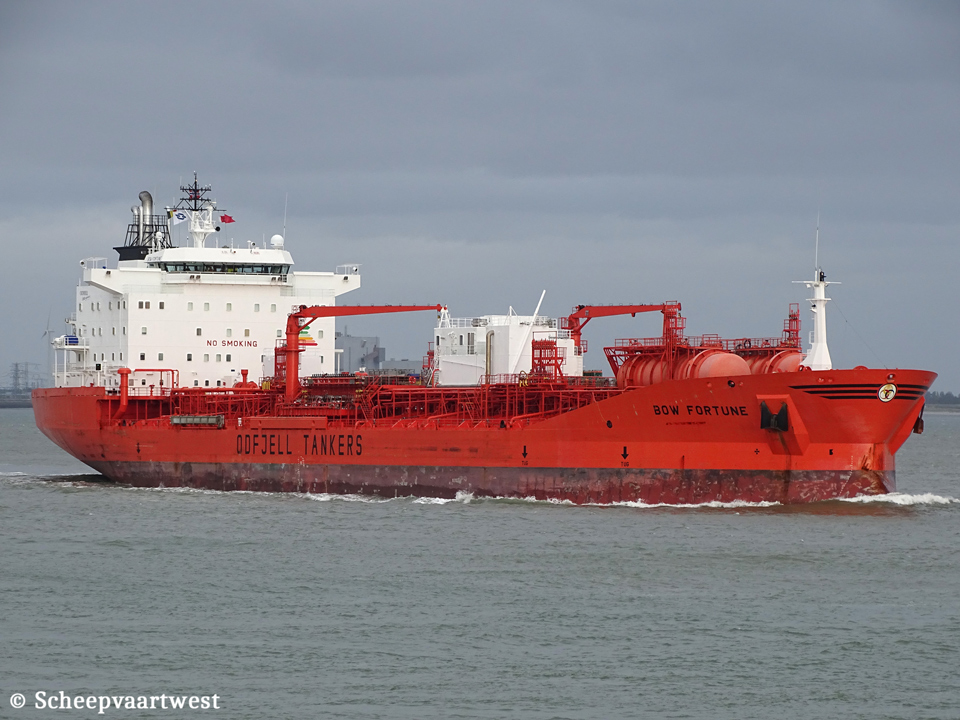

Bow Fortune IMO 9168635 02

Westerschelde 30 August 2020

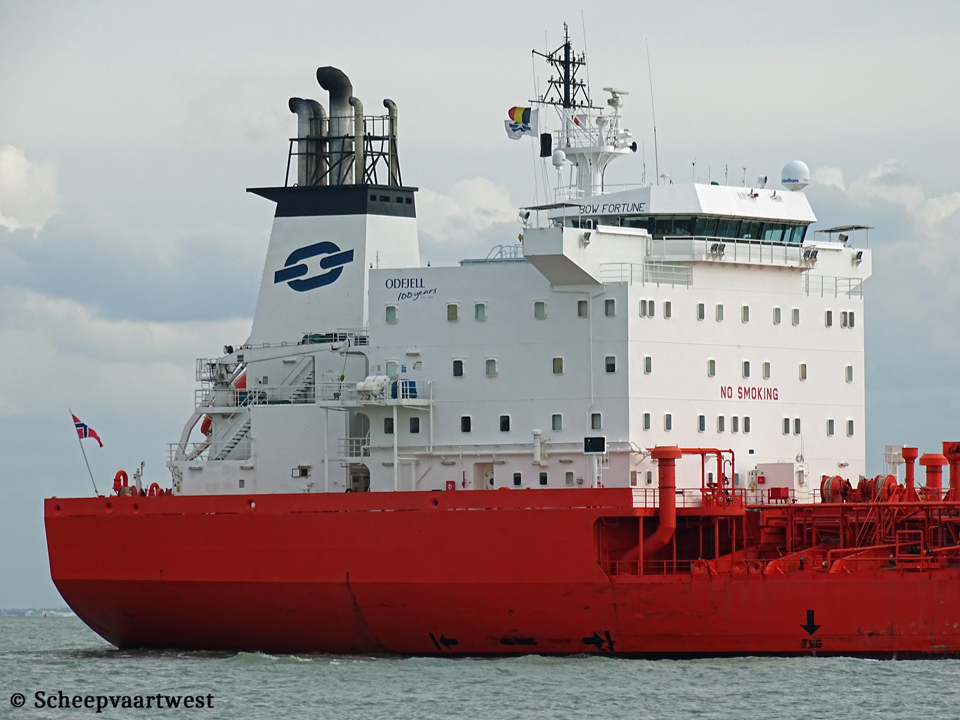

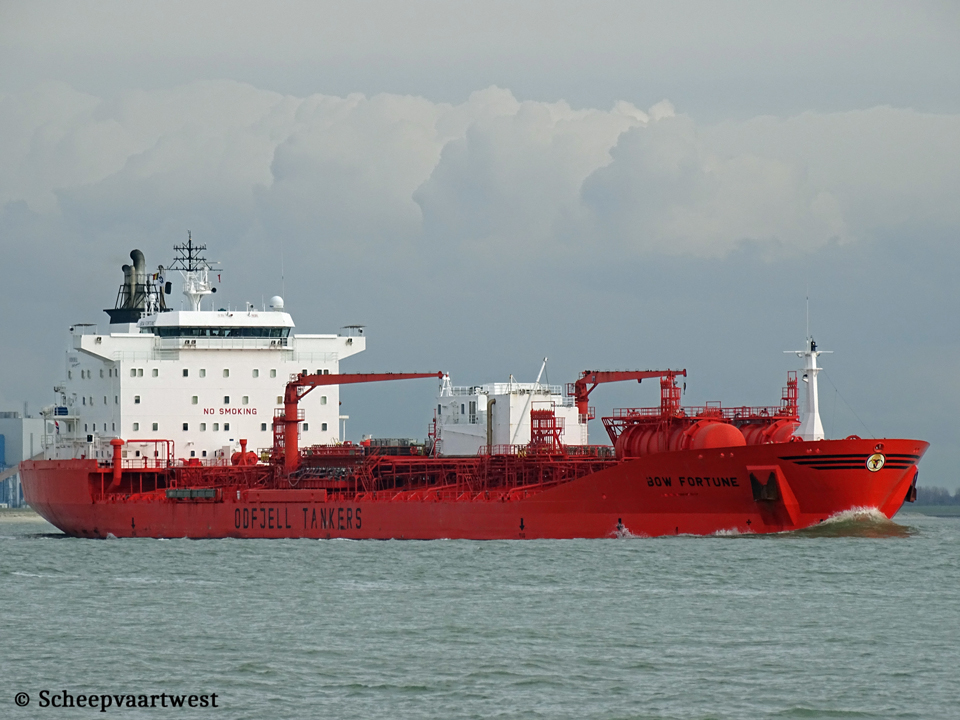

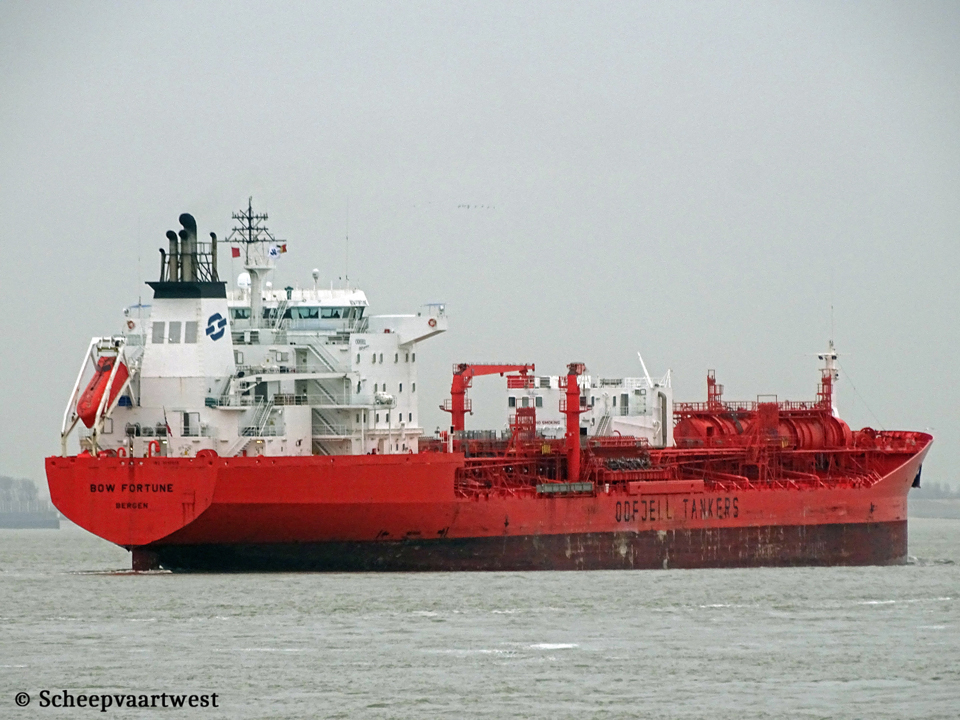

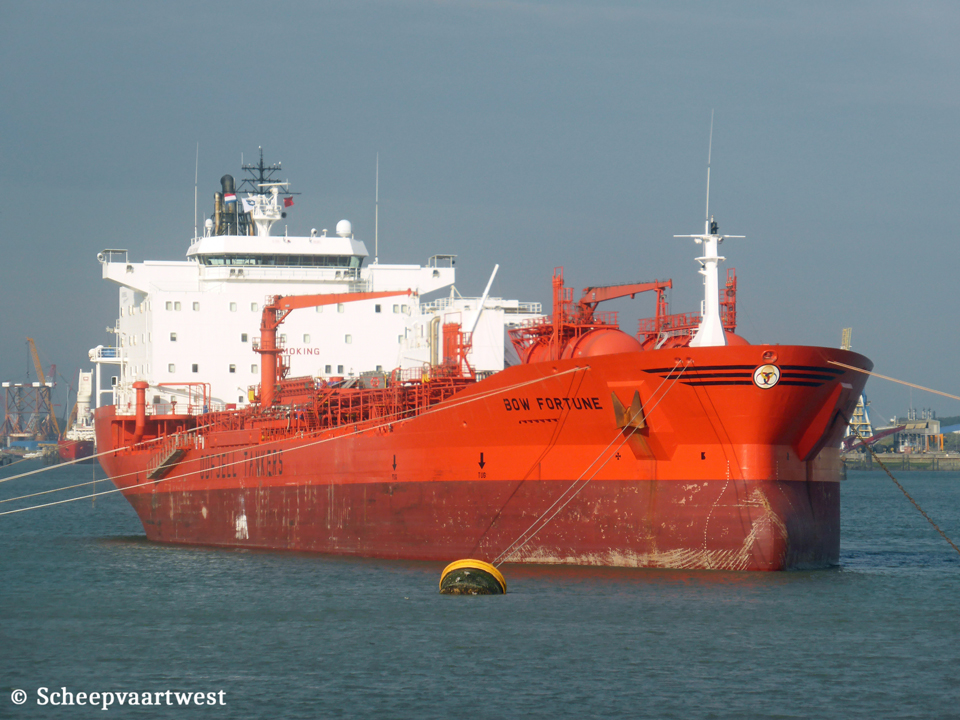

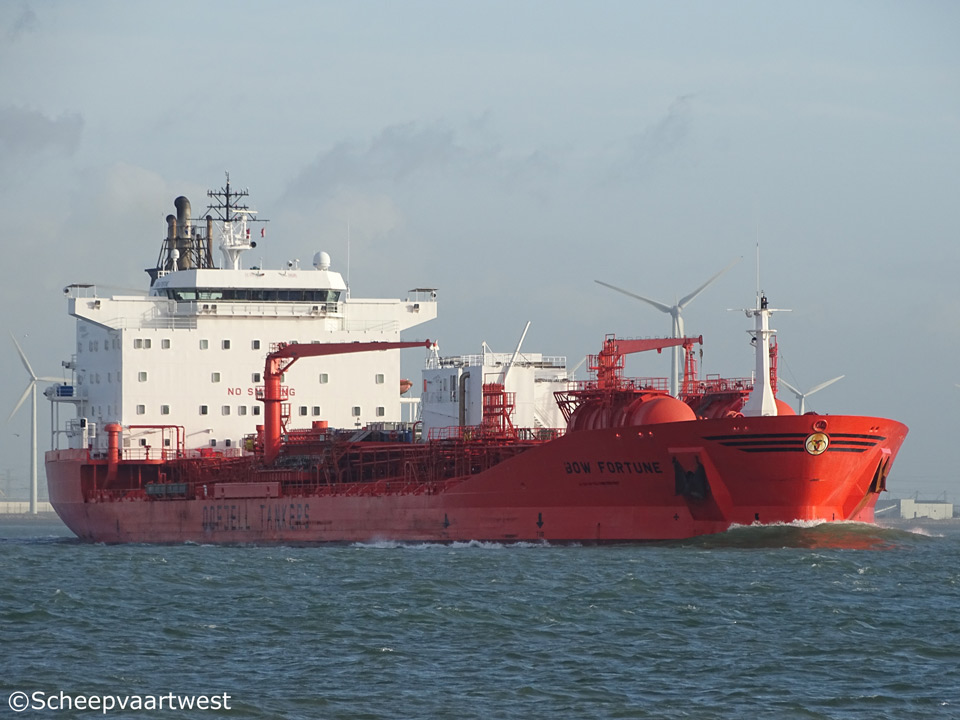

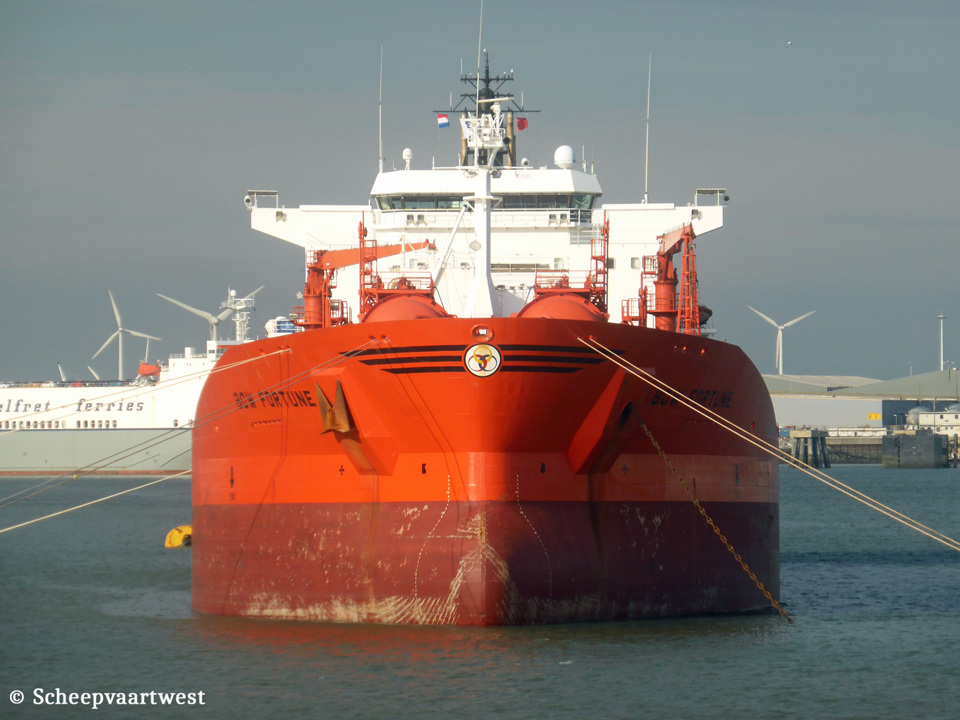

Bow Fortune 01   Bow Fortune IMO 9168635 03   Bow Fortune IMO 9168635 04   Bow Fortune IMO 9168635 05   Bow Fortune IMO 9168635 06   Bow Fortune IMO 9168635 07
Westerschelde 11/12/16   Vlissingen 12/08/15   Vlissingen 12/08/15   Westerschelde 08/03/16   Westerschelde 08/03/16    Westerschelde03/03/17


Name

BOW FORTUNE

Type

Tanker for chemicals & oil products

IMO-number

9168635

Call sign

V7A5150

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

1999 - 2022 Norway, Bergen - Call sign: LAJQ5

GT

23.206 t

Suez: 23.386 t

DWT

Summer: 37.395

NT

11.915 t

Suez: 20.699 t

Panama: 19.334 t

Light ship

11.103 t

Length

183,10 m overall

176,90 m between perpendiculars

Breadth

32,20 m extreme

Draught

Summer: 10,72 m

Keel to mast end

43,36 m

Speed

Max.: 16,0 knots

Service: 14,3 knots

Built

1999

Keel laid

04/08/1998

Launch date

25/02/1999

Date of completion

12/05/1999

Builder

Kværner Florø AS

Florø

Norway

Yard number

138

Hull material

Steel

Hull type

Double bottom

Double side with top wing

Bulkheads

Transverse: 7

Continuous decks

1

Main engine

1x Kawasaki/MAN-B&W 6L60MC MK-V - 2 stroke 6 cylinder 600 x 1.944 mm combustion engine 10.409 kW / 14.152 hp at 123,0 rpm

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated AV-6N

2x Auxiliary boiler, oil/gas fired AQ9

Builder: Aalborg

Generators

2x MAN-B&W 6L28/32H main diesel generatorsets

Emergency generator

1x Volvo TMD 122 A diesel generatorset

Bow thruster

1x 883 kW

Number of cargo tanks

47

Cargo tank capacity

Total centre tanks: 21.584 m³

Total wing tanks: 17.615 m³

Grand total: 39.799 m³

Number of pumps

5x Cargo pumps each 500 m³/h

10x Cargo pumps each 300 m³/h

28x Cargo pumps each 200 m³/h

Manifolds

Summer draft to manifold: 5,60 m

Rail to manifold: 4,50 m

Bow to manifold: 95,30 m

Tank capacities

Ballast: 15.034 m³

Commerical manager

Odfjell Asia Ii Pte Ltd.

27-08/9, OUE Downtown 2, 6, Shenton Way

Singapore 068809

Republic of Singapore

ISM manager

Odfjell Management AS

Conrad Mohrs veg 29

5072 Bergen

Norway

Registered owner

Goldex Fortune Ltd.

Care of Bocimar International NV

De Gerlachekaai 20

2000 Antwerpen

Belgium

Latest data adjustment

05 September 2023
