Malaga, Spain 04 August 2021 |
|
Name |

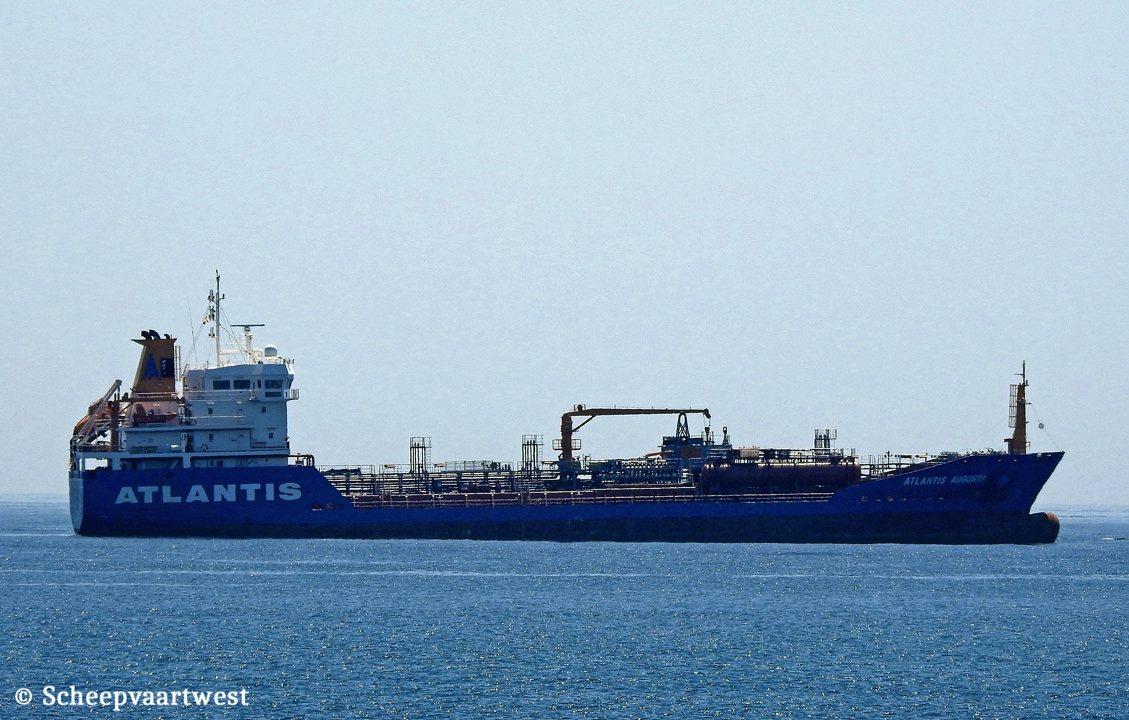

ATLANTIS AUGUSTA |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9390862 |
|
Call sign |
9HA4543 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.034 t |
|
DWT |
Summer: 5.645,4 t |
|
NT |
1.815 t |
|
Length |
105,50 m overall 99,35 m between perpendiculars |
|
Breadth |
16,80 m |
|
Draught |
Summer: 6,29 m |
|
Keel to mast end |
32,90 m |
|
Freeboard |
1.120 mm |
|
Depth |
7,40 m |
|
Speed |
14,5 knots |
|
Built |
2017 |
|
Date of completion |
12/04/2017 |
|
Builder |
Ozkaradeniz Nakliyat Ve Deniz Tasimaciligi San. Tic. Ltd. Sti. Istanbul Turkey |
|
Yard number |
149 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 9M25 - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.660 kW / 3.614 hp at 750 rpm |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO Tube-Tec Rohrverform 13,00 m² / 10,0 bar 1x CHR Tube-Tec Rohrverform 52,90 m² / 10,0 bar 2x CHO Tube-Tec Rohrverform 60,00 m² / 10,0 bar |
|
Shaft generator |
1x 1.120 kW |
|
Generators |
3x Main diesel generatorsets each 462 kVA - 370 kW - 530 hp |
|
Emergency generator |
1x Diesel generatorset 206 kVA - 165 kW - 231 hp |
|
Bow thruster |
1x 350 kW |
|
Number of tanks |
10 |
|
Cargo tank capacity |
Liquid: 6.302 m³ |
|
Number of slop tanks |
2 |
|
Segregation |
12x Segregation with double valves |
|
Number of pumps |
12x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel: 421,49 m³ |
|
Commercial manager |
Atlantis Tankers Muallim Naci Caddesi 47, Ortakoy Mah, Besiktas, 34347 Istanbul Turkey |
|
Technical manager |
Armona Denizcilik AS Muallim Naci Caddesi 47, Ortakoy Mah, Besiktas, 34347 Istanbul Turkey |
|
Registered owner |
Augusta Shipping Limited Care of Armona Denizcilik AS, Muallim Naci Caddesi 47, Ortakoy Mah, Besiktas 34347 Istanbul Turkey |
|
Latest data adjustment |
08 September 2021 |
